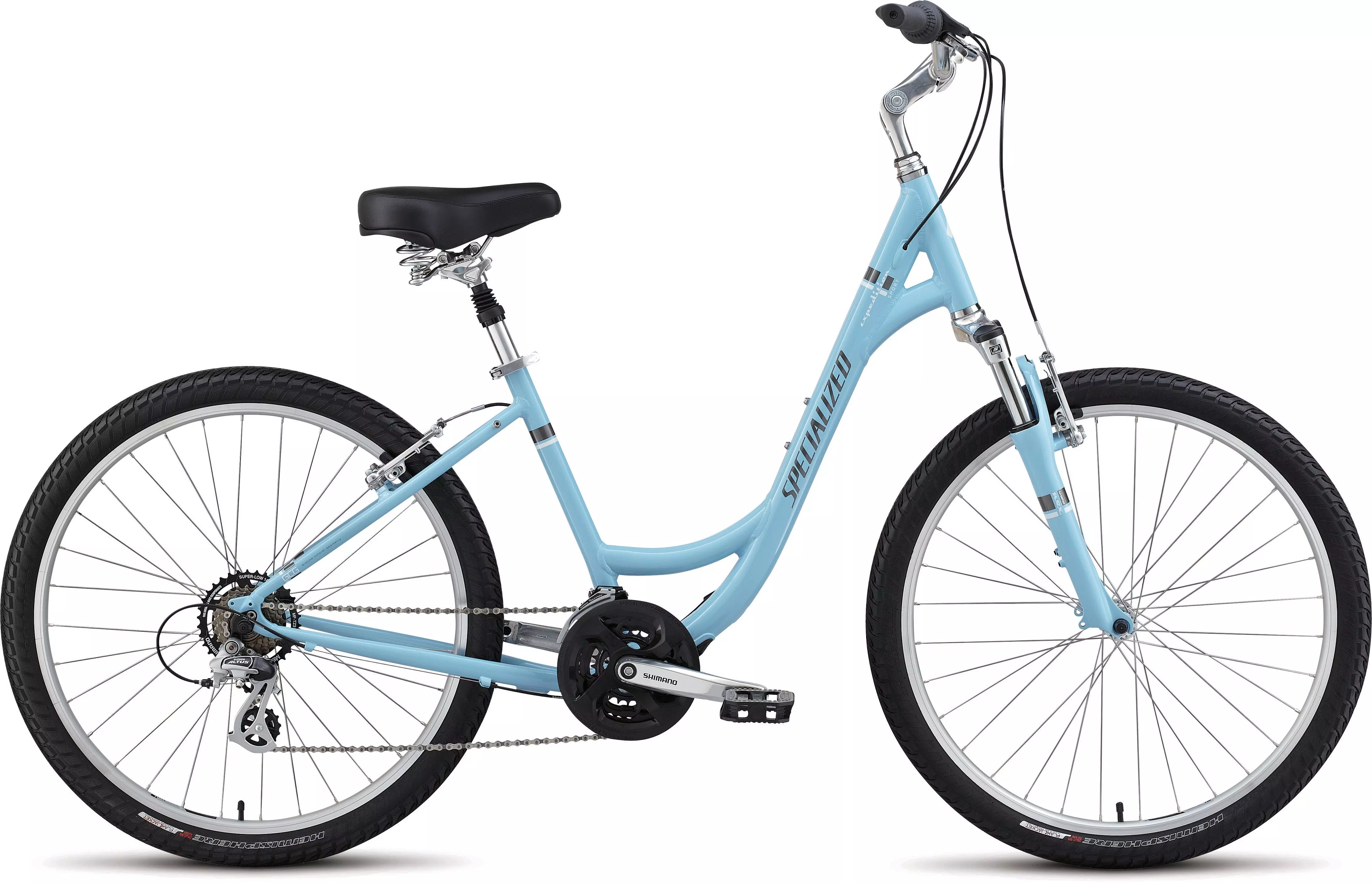

2015 Expedition Sport Low Entry
5
1 Reviews
The Expedition Sport Low Entry adds another level of plushness to the ride with a…
Colour:
Light Blue/Charcoal/White
What's my size?
Select a Size
Product Details
The Expedition Sport Low Entry adds another level of plushness to the ride with a suspension seatpost, while the 21-speed drivetrain leaves you free to explore a wide range of terrain. The low-entry frame is convenient and improves confidence.
A1 Premium Aluminium frame w/ Ground Control Geometry for stability and safety
A1 Premium Aluminium frame w/ Ground Control Geometry for stability and safety
A1 Premium Aluminium frame w/ Ground Control Geometry for stability and safety
A1 Premium Aluminium frame w/ Ground Control Geometry for stability and safety
A1 Premium Aluminium frame w/ Ground Control Geometry for stability and safety
A1 Premium Aluminium frame w/ Ground Control Geometry for stability and safety
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, Ground Control Geometry, 26"" super low entry, formed tubes, forged dropouts w/ replaceable derailleur hanger
FORK
SR Suntour NEX, alloy lowers, coil/MCU spring, Hi-Ten 28mm stanchions, 1-1/8"" steerer, preload adjust, 63mm travel
HEADSET
1-1/8"" FSA Intelaset, threaded, Cr-Mo cups
WHEELS
RIMS
26"", alloy double-wall, CNC sidewalls, pin joint, 32h
FRONT HUB
Double-sealed, loose ball, QR, 32h
REAR HUB
Alloy, freewheel type, sealed, QR, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Specialized Hemisphere, Flak Jacket protection, 26x1.95""
REAR TIRE
Specialized Hemisphere, Flak Jacket protection, 26x1.95""
INNER TUBES
Standard, Schrader valve
COCKPIT
HANDLEBARS
Specialized riser, alloy, 15-degree backsweep, 4-degree upsweep, 60mm rise, 25.4mm
STEM
Adjustable quill, die-cast alloy, 2-bolt, 150mm
TAPE
Specialized Body Geometry Contour, closed end
SADDLE
Body Geometry Comfort, steel spring rails
SEATPOST
Suspension, 2-bolt, 27.2mm
SEAT BINDER
Alloy, nylon/glass fibre washer, QR, 31.8mm
DRIVETRAIN
SHIFT LEVERS
Shimano Tourney Revo-Shift, 7-speed, w/ optical display
FRONT DERAILLEUR
Shimano FD-TX50, top swing, dual pull
REAR DERAILLEUR
Shimano Altus, 7-speed
CASSETTE
Shimano MegaRange, 7-speed, 14-34
CRANKSET
Shimano Tourney, w/ chainguard
CHAINRINGS
42/34/24
BOTTOM BRACKET
Square taper, cartridge bearings, 68mm
CHAIN
KMC Z7, silent shift, 1/2""x3/32"", reusable Missing Link
BRAKES
FRONT BRAKE
V-brake, alloy, linear pull
REAR BRAKE
V-brake, alloy, linear pull
BRAKE LEVERS
Die-cast alloy, Kraton pad
ACCESSORIES
PEDALS
Plastic body w/ rubber top, loose ball bearings, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | |
|---|---|---|---|
| Seat-Tube Angle | 67° | 67° | 67.5° |
| Head-Tube Length | 160mm | 180mm | 200mm |
| Head-Tube Angle | 68.5° | 68.5° | 68.5° |
| Chain-Stay Length | 500mm | 500mm | 500mm |
| Top-Tube Length, Horizontal | 610mm | 625mm | 640mm |
| Front-Centre | 630mm | 650mm | 665mm |
| Stand-Over Height | 436mm | 437mm | 453mm |
| Seat-Tube Length, B-B Centre to Top | 370mm | 425mm | 480mm |
| Fork Rake | 40mm | 40mm | 40mm |
| B-B Drop | 59mm | 59mm | 59mm |
| Trail | 89mm | 89mm | 89mm |
| Wheelbase | 1123mm | 1138mm | 1159mm |
| Crank Length | 170mm | 170mm | 170mm |
| Handlebar Width | 645mm | 645mm | 645mm |
| Seatpost Length | 300mm | 350mm | 350mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
