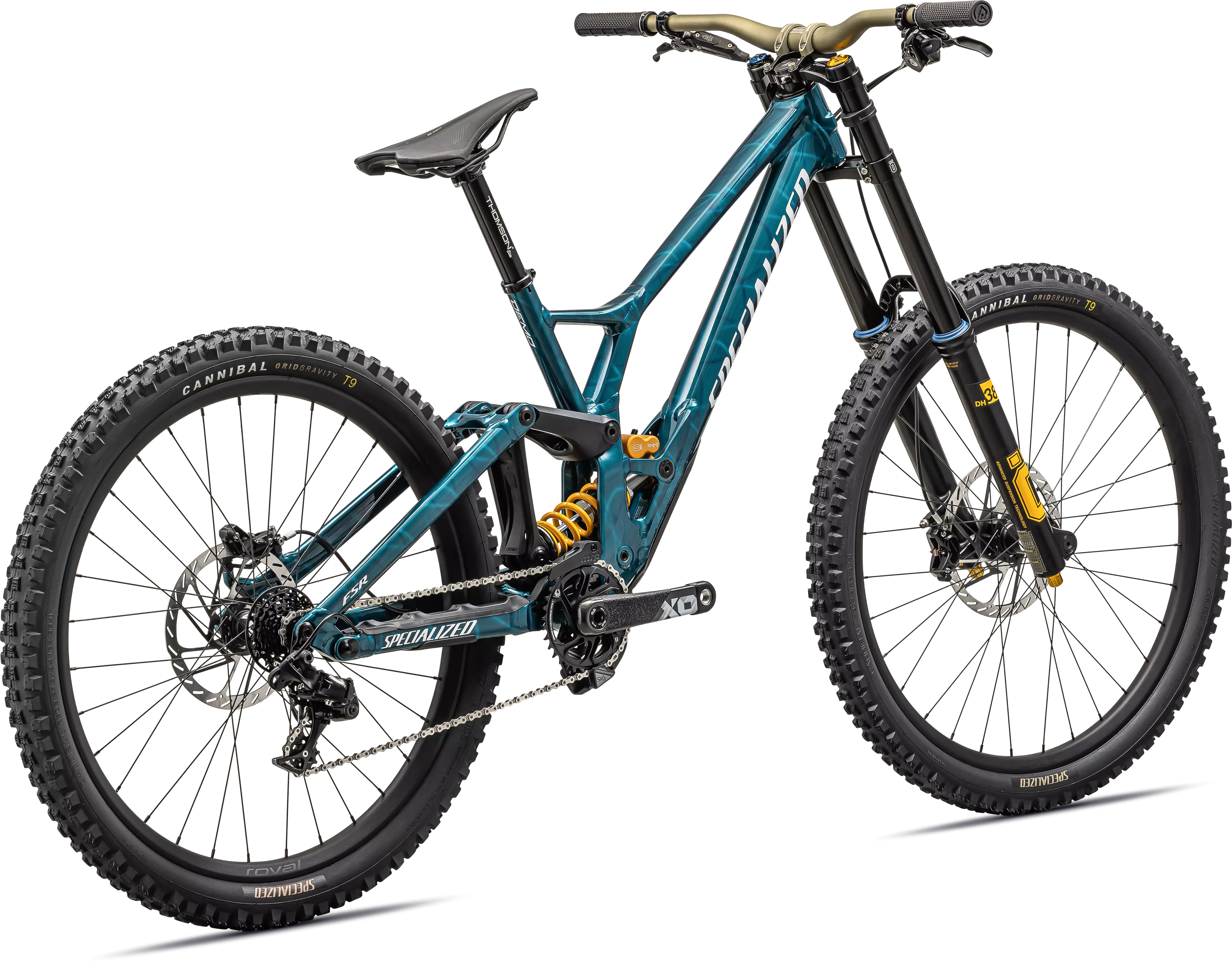

Demo Race

All-out speed has always been the Demo’s target, and with the Demo Race, it’s no…

Delivery Icon

We deliver! Just say when and how.

Product Details

Add Icon

All-out speed has always been the Demo’s target, and with the Demo Race, it’s no different. Introducing a new flexible wheel-size frame design that allows riders to take advantage of a 29-inch front wheel and a 27.5-inch rear wheel, it’s a special blend that’s long been tested by World Champ Loïc Bruni looking for the perfect balance of traction and maneuverability, but only just green-lighted by the UCI this past year. Not that it stopped the Demo Race from racking up both the Downhill World Championship and overall World Cup titles in its very first season...

Now, we’re offering that same winning combination straight out of the box, while an adjustable rear end that still allows you to change between 27.5 and 29-inch wheel sizes based on terrain and riding style while also adjusting for proper chainstay length and bottom bracket height.

Blazing fast on tough tracks, the Demo Race suspension design has been developed around a more rearward axle path that reduces rear-wheel hang-up, increasing speed instead.

Top-shelf suspension from Öhlins takes advantage of the most proven suspension kinematics on the World Cup circuit, and SRAM’s DH-specific X01 drivetrain has you covered from the start gate to finish line.

  • The Demo Race M5 alloy frame is fully optimized to take advantage of the traction benefits of a 29-inch front wheel and the increased manueverability of a 27.5-inch rear wheel while maintaiining the ability to change your rear wheel size to suit different terrain and riding styles with an adjustable rear end that ensures chainstay length and bottom-bracket height stay dialed no matter the hoop size.

  • The Öhlins TTX22M.2 coil shock is designed to handle the most challenging World Cup Downhill tracks, offering external low speed compression and rebound adjustment while the Trunnion mount offers extra bushing overlap for increased durability.

  • With superb small bump tracking and the ability to soak up landings from even the heftiest drop-off, the Öhlins DH38 m.1 fork’s 200-millimeters of travel will give you smoother, faster, and more confident feeling runs than anything you’ve ridden before.

Technical Specifications

Add Icon

Frameset

Frame

M5 alloy, Style-Specific DH Geometry, horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel

Seat Binder

Alloy, 34.9mm

Suspension

Rear Shock

Öhlins TTX 22 M Coil, external rebound adjust, external high and low speed compression adjustment, Trunnion mount, 225x75

Fork

Öhlins DH38 M.1 29, TTX Twin Tube Damping, external low speed rebound adjust, external high and low speed compression adjustment, 20x110mm, 58mm offset, 200mm of travel

Brakes

Front Brake

SRAM Code RSC, 4-piston caliper, hydraulic disc, 220mm HS2

Rear Brake

SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm HS2

Drivetrain

Shift Levers

SRAM X01 DH, trigger, 7-speed

Rear Derailleur

SRAM X01 DH, 7-speed, trigger

Cassette

SRAM X01 DH, 7-speed, 10-24t

Chain

Sram PC1130 w/ Powerlink, 11-speed

Crankset

SRAM X01 DH, DUB, carbon, Direct mount ring, 165mm

Chainrings

34T

Bottom Bracket

SRAM DUB, 83mm

Wheels & Tires

Rims

Roval Traverse Alloy 29" / 27.5", 32h alloy rim, 28mm inner rim width

Front Hub

DT Swiss 350 hub, 20x110mm

Rear Hub

DT Swiss 350 hub, 12x148mm

Spokes

Sapim D-Light

Front Tire

Cannibal, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Rear Tire

Cannibal, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"

Inner Tubes

Standard, Presta

Cockpit

Stem

Renthal Integra 35mm Direct Mount Stem, 45mm length

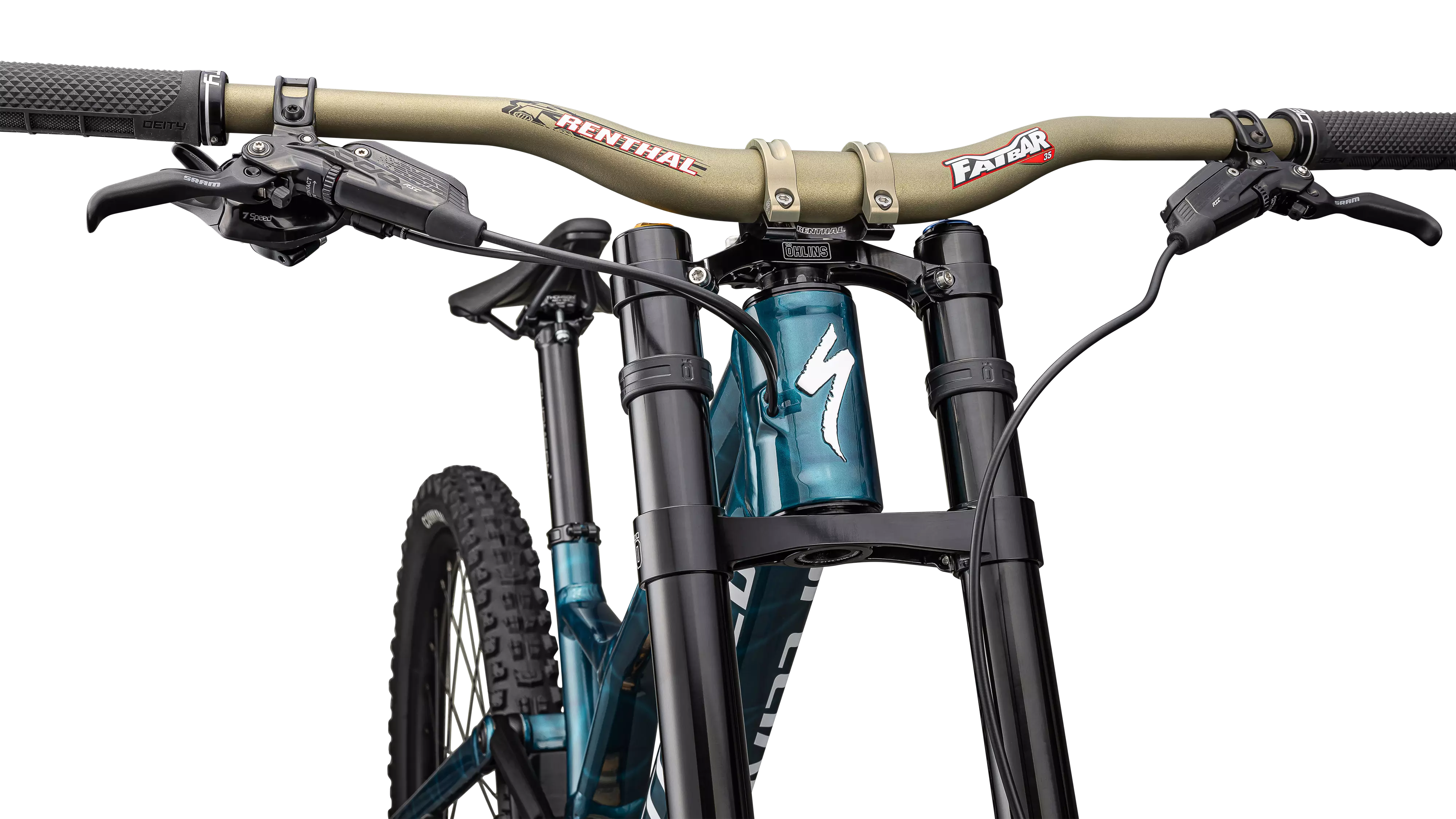

Handlebars

Renthal Fatbar 35, 5-degree upsweep, 7-degree backsweep, 30mm rise, 800mm, 35.0mm

Grips

Deity, Lockjaw

Saddle

Body Geometry Henge DH, hollow titanium rails, 130mm

SeatPost

Thomson, alloy, straight, 12-degree clamp

Weight

Weight

17.56kg (38 lb, 11.4 oz)

Weight Size

S3

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
S2S3S4
Crank Length165mm165mm165mm
Handlebar Width800mm800mm800mm
Stem Length45mm45mm45mm
Saddle Width130mm130mm130mm
Seatpost Length367mm367mm367mm
Chain-Stay Length (29)448mm448mm448mm
B-B Drop25mm25mm25mm
Front-Center (27.5 mid)801mm821mm841mm
Stack632mm632mm632mm
Head-Tube Angle62.8°62.8°62.8°
Head-Tube Angle (27.5 mid)62.5°62.5°62.5°
Stack (27.5 mid)635mm635mm635mm
Reach426mm446mm466mm
Wheelbase (mid)1244mm1264mm1284mm
Seat-Tube Length394mm420mm420mm
Seat-Tube Angle78.2°76.8°76.8°
Seat-Tube Angle (29 mid)78.5°77.1°77.1°
Stack (29 mid)629mm629mm629mm
Head-Tube Angle (29 mid)63.2°63.2°63.2°
B-B Height (29 mid)355mm355mm355mm
Chain-Stay Length (mid)443mm443mm443mm
Wheelbase (27.5)1239mm1259mm1279mm
Fork Rake/Offset56mm56mm56mm
Chain-Stay Length (27.5)438mm438mm438mm
Trail (27.5 mid)132mm132mm132mm
Front-Centre801mm821mm841mm
Reach (29 mid)430mm450mm470mm
Reach (27.5 mid)423mm443mm463mm
B-B Height350mm350mm350mm
Trail (29 mid)127mm127mm127mm
Seat-Tube Angle (27.5 mid)77.8°76.4°76.4°
Trail130mm130mm130mm
Front-Center (29 mid)801mm821mm841mm
Head-Tube Length105mm105mm105mm
B-B Height (27.5 mid)345mm345mm345mm
Wheelbase (29)1249mm1269mm1289mm
