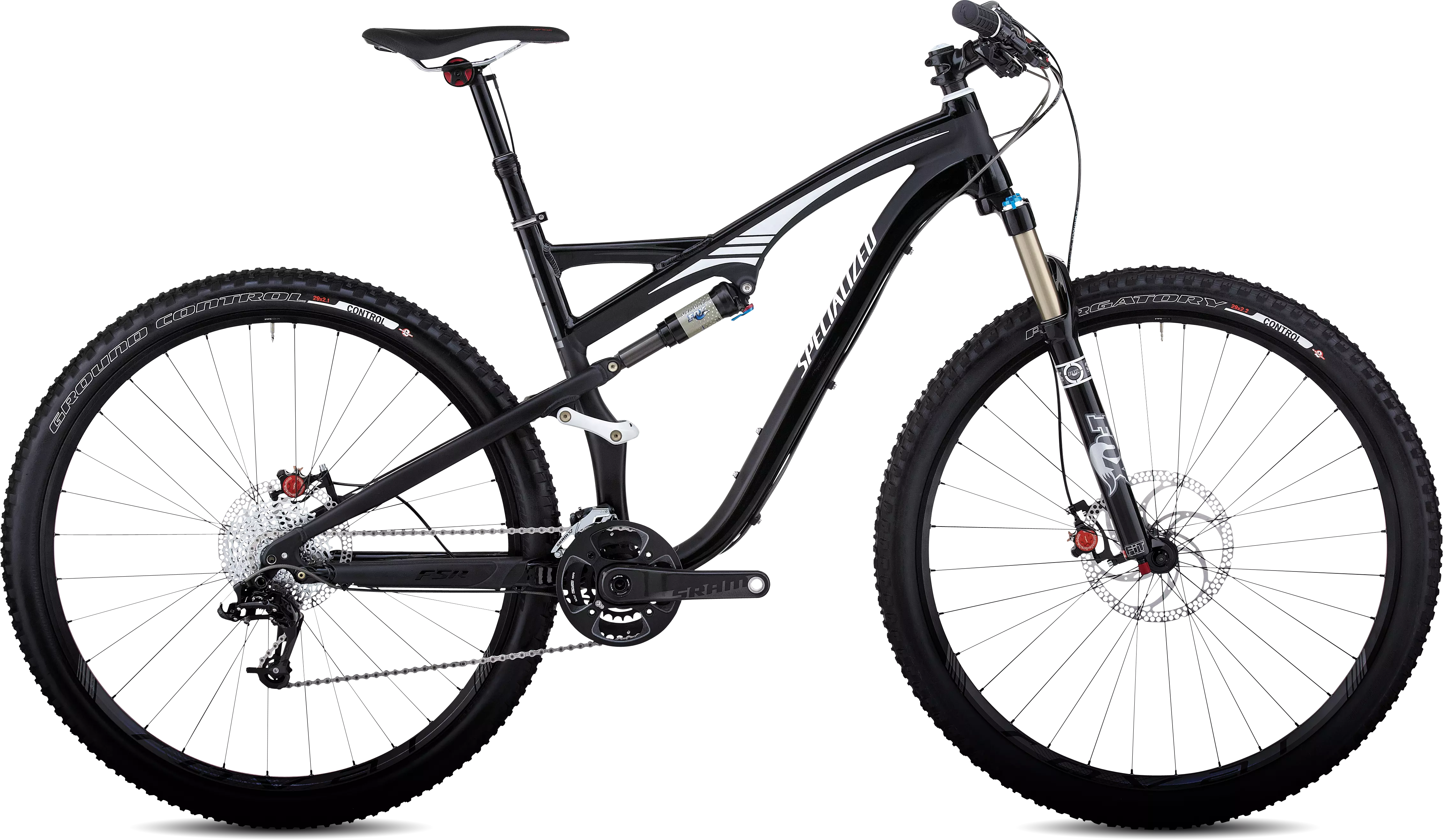

2012 Camber Expert 29

0 Reviews

With 110mm of FSR tuned suspension and a Fox Float Performance RL 29 FIT-damped fork,…

Colour:

Gloss/Satin Black/White

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

With 110mm of FSR tuned suspension and a Fox Float Performance RL 29 FIT-damped fork, the Camber Expert 29 is the ultimate in rider-friendly trail weapon.

Manipulated M5 alloy, 110mm travel FSR with 29er geometry and a tapered head tube, PF30 BB, 142mm dropouts and Command Post cable routing create a fun and versatile trail weapon
Custom Fox Triad II with on-the-fly, 3-position damping adjustment between a plush fully open, a more firm ProPedal and a lockout, for ideal performance over varying terrain
Fox Performance Series 29 RL Float fork with FIT damper, tapered steerer tube, lockout and 110mm of travel smooths technical terrain
SRAM X0 10-speed rear derailleur and SRAM X9 shifter provide quick and reliable gear changes
Custom carbon SRAM 10-speed XC Trail double-ring shaves weight and shifts fast while the PF30 spindle makes for an efficient and stiff crankset
Roval Control Trail 29 wheelset, purpose built for trail riding with butted DT Swiss spokes and a wider rim profile for lightweight toughness
All-new Specialized Command Post BlackLite uses 3 remote-actuated saddle height positions to maximize climbing and descending performance

Technical Specifications

FRAMESET

FRAME

M5 hydroformed tubing, 29"" geometry, tapered HT, PF30 BB, Command Post routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, bolt-on cable guides, 110mm travel

HEADSET

1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

34.9mm clamp ID, 7050 hard anodized alloy collar, single bolt

SUSPENSION

REAR SHOCK

Custom Fox Triad II, custom for 29er on-the-fly 3-position compression switch 1) Lock out 2) Open 3) ProPedal, rebound adj., 200x49mm

FORK

Fox Float Performance RL 29, FIT damper, tapered steerer, LO and reb adj., standard drop-outs, 110mm travel

WHEELS

RIMS

Roval Control Trail 29, alloy disc, 26mm, 32h

FRONT HUB

Roval Control Trail 29, OS 24 end caps, QR, 32h

REAR HUB

Roval Control Trail 29 142+, DT Swiss alloy cassette body, QR, 28h

SPOKES

DT Swiss Super Comp, 2.0/1.65/1.8 stainless

FRONT TIRE

Specialized Purgatory Control, 60 TPI, 2Bliss ready aramid bead, dual-compound, 29x2.2""

REAR TIRE

Specialized Ground Control, 60 TPI, 2Bliss ready aramid bead, 29x2.1""

DRIVETRAIN

FRONT DERAILLEUR

SRAM X7, 10-speed, S3 direct mount for DMD, top-pull

REAR DERAILLEUR

SRAM X0, 10-speed, mid cage

SHIFT LEVERS

SRAM X9, 10-speed, trigger

CASSETTE

SRAM PG-1050, 10-speed, 11-36t

CHAIN

KMC X-10, 10-speed, w/ reusable Missing Link, nickel plates

CRANKSET

Custom SRAM carbon S-2200, 10-speed XC Trail double, PF30 spindle, removable spider, S: 170mm, Others: 175mm

CHAINRINGS

36/24, w/ carbon guard

BOTTOM BRACKET

SRAM PF30, OS press-in bearing, sealed cartridge

COCKPIT

SEATPOST

Specialized Command Post BlackLite, 3 position, adjustable height w/air spring, remote operated, single bolt head 30.9mm, S:100mm travel, Others: 125mm

STEM

Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise, S: 60mm, M: 75, L:90, XL:105mm

HANDLEBARS

Specialized XC Mini-Riser, 7050 butted alloy, 720mm wide, 10mm rise, 10º backsweep, 6º upsweep, 31.8mm

GRIPS

Specialized lock-on, S/M: Grappler, Others: Grappler XL

SADDLE

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm width

ACCESSORIES

PEDALS

Resin Test Ride Pedals with toe clips, CEN std.

BRAKES

FRONT BRAKE

Custom Formula The One R, hydraulic disc, tool-less FCS and reach adjust, metallic pad, SRAM compatible MiXmaster shifter mounts, S/M:180mm rotor, Others: 203mm rotor,

REAR BRAKE

Custom Formula The One R, hydraulic disc, tool-less FCS and reach adjust, metallic pad, SRAM compatible MiXmaster shifter mounts, S/M:160mm rotor, Others: 180mm rotor

BRAKE LEVERS

Formula The One R hydraulic

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL	XXL
Ground-Top	912mm	931mm	950mm	969mm	988mm
Bottom Bracket Height - Low Setting	330mm	330mm	330mm	330mm	330mm
Top Tube Length (Horizontal)	560mm	590mm	617mm	645mm	665mm
Head Tube Height	90mm	110mm	130mm	150mm	170mm
Head Tube Angle - Low Setting	70°	70°	70°	70°	70°
Seat Tube Angle (Actual) - Low Setting	71°	71°	71°	71°	71°
Seat Tube Angle (Effective) - Low Setting	74°	74°	74°	74°	74°
Top Tube Length (Actual)	532mm	561mm	587mm	611mm	631mm
Seat Tube Length - Centre to Top	394mm	445mm	483mm	533mm	584mm
Wheel Base	1087mm	1118mm	1147mm	1176mm	1198mm
Standover Height	768mm	772mm	784mm	801mm	805mm
Stack	582mm	601mm	620mm	639mm	658mm
Reach	393mm	418mm	439mm	462mm	476mm
Chainstay Length	447mm	447mm	447mm	447mm	447mm
Crank Length	170mm	175mm	175mm	175mm	175mm
Handlebar Width	680mm	680mm	680mm	680mm	680mm
Stem Length	90mm	90mm	105mm	105mm	105mm
Seatpost Length	350mm	350mm	400mm	400mm	400mm
