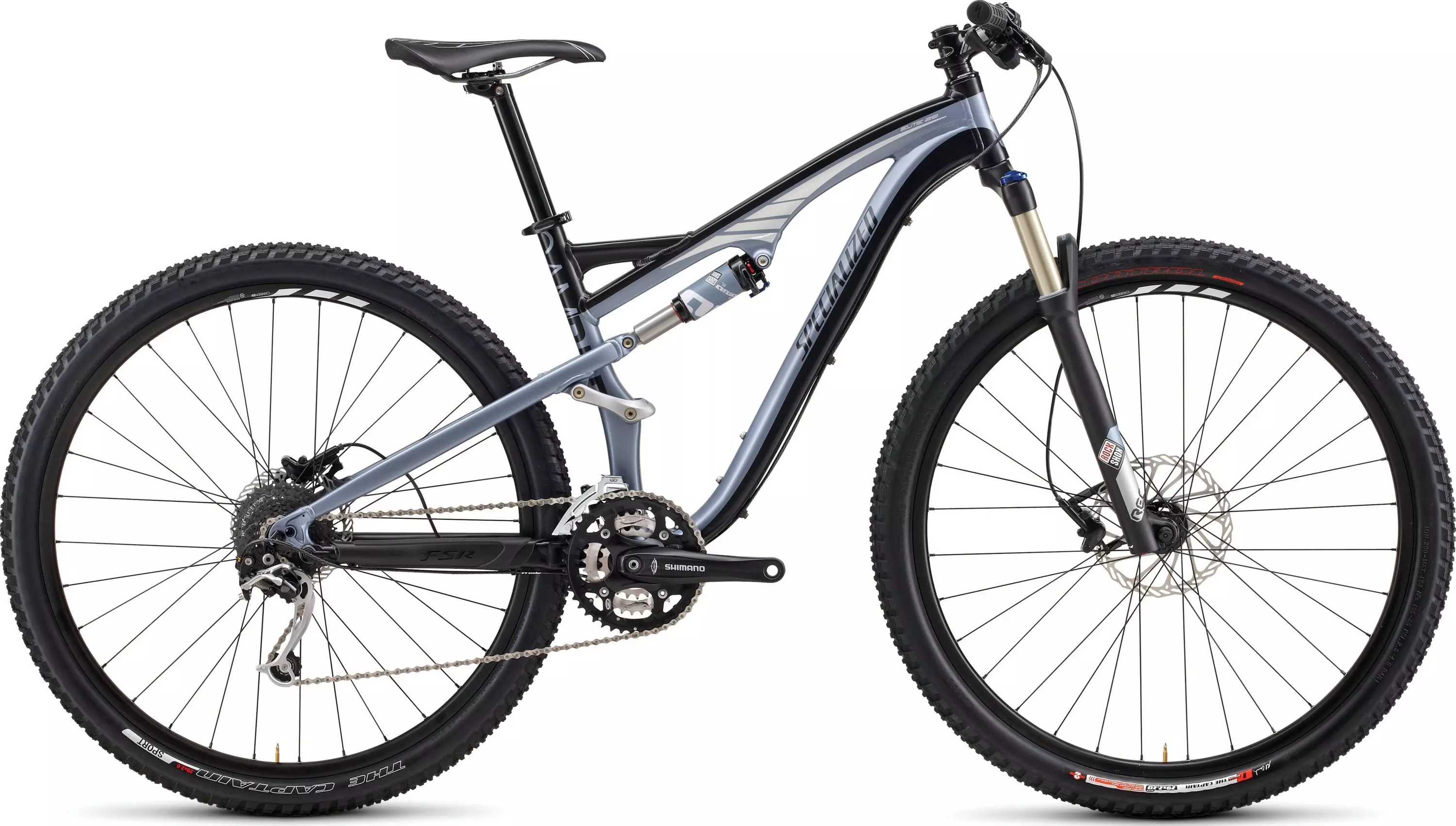

2011 Camber Elite 29er

2 Reviews

Improved front suspension, better brakes, and upgraded drivetrain make the Camber…

Colour:

Black/Steel Blue

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Improved front suspension, better brakes, and upgraded drivetrain make the Camber Elite 29er a little more plush and crisp.

RockShox Ario rear shock with adjustable rebound and lockout for steady climbs and plush, controlled descents
Shimano Deore XT Shadow rear derailleur delivers top-of-the-line shifting performance and a low-profile design for maximum clearance
Custom Avid Elixir 3 R SL hydraulic disc brakes and Juicy 3 levers with G3 Clean Sweep rotors and alloy-backed organic pads for maximum stopping power
M4 alloy FSR frame with 29er-specific geometry, new suspension design, and sealed cartridge bearing pivots for confident handling and smooth trail performance
Responsive, yet stable RockShox Recon Gold TK air-sprung fork with 100mm of travel uses external adjustable rebound, Turn Key damping, and lockout for fine-tuned bump performance
The Captain 29" tires - a 2Bliss Ready 2.2" Control in the front and 2.0" Sport in the rear - love to hammer any trail, like their namesake Ned Overend, in dry to intermediate conditions.

Technical Specifications

FRAMESET

HEADSET

1 1/8"" upper and lower campy style cartridge bearings for integrated alloy HT

SEAT BINDER

34.9mm clamp ID, 7050 hard annodized alloy collar w/ QR, black

FRAME

M4 29er hydroformed tubing, 29"" geometry, sealed cartridge bearing pivots, disc only, Command Post routing, replaceable deraileur hanger, bolt on cable guides, 100mm travel

SUSPENSION

FORK

RockShox Recon Gold TK 29, Turn Key damper, Solo Air, alloy steerer, rebound adj. w/ LO, disc only, 100mm travel

REAR SHOCK

RockShox Ario RL, air spring, rebound adj. and LO, 7.875x1.9""

WHEELS

SPOKES

2.0mm (14g) stainless

REAR HUB

Specialized Hi Lo disc, double sealed cartridge bearing, QR, 32h

FRONT HUB

Specialized Hi Lo disc, OS 28 end caps, sealed cartridge bearing, QR, 32h

REAR TIRE

Specialized ""The Captain"" Sport, 60 TPI, wire bead, 29x2.0""

FRONT TIRE

Specialized ""The Captain"" Control, 60 TPI, 2Bliss ready aramid bead, dual compound, 29x.2.2""

RIMS

Custom for SBC, alloy disc, double wall, pin joint, eyelets, 27mm, 32h

INNER TUBES

Ultralight presta valve

DRIVETRAIN

CHAINRINGS

44A x 32S x 22S

SHIFT LEVERS

Shimano SL-M430 Alivio, 9-speed trigger

CASSETTE

Shimano HG30, 9-speed, 11-34t

CHAIN

KMC X9, 9-speed, w/ reuseable Missing Link

FRONT DERAILLEUR

Shimano FD-M660 SLX, E-type for DMD, top swing, bottom pull

BOTTOM BRACKET

Shimano BB-ES25, Octalink spline, cartridge bearing, 73mm x 118mm

CRANKSET

Shimano FC-M521, Hollowtech, Octalink spline, replacable rings, S: 170mm, others: 175mm

REAR DERAILLEUR

Shimano RD-M772 Deore XT Shadow, long cage

COCKPIT

SADDLE

Specialized BG Rival, 143mm width

STEM

Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise

SEATPOST

6061 alloy, 2-bolt micro adjust, setback head, 30.9mm, S/M:350mm, others:400mm

GRIPS

Specialized lock-on, S/M: Grappler, Other: Rocca

HANDLEBARS

Specialized XC flat bar, 2014 butted alloy, 680mm wide, 8 degree back sweep, 31.8mm

BRAKES

REAR BRAKE

Custom Avid Elixir 3 R SL, hydraulic disc, tool-less reach adjust, alloy backed organic pads, G3 Clean Sweep rotor, S/M: 160mm, L/XL/XXL: 185mm

FRONT BRAKE

Custom Avid Elixir 3 R SL, hydraulic disc, tool-less reach adjust, alloy backed organic pads, G3 Clean Sweep rotor, S/M: 185mm, L/XL/XXL: 203mm

BRAKE LEVERS

Custom Avid Elixir 3 SL hydraulic, tool-less reach adj.

ACCESSORIES

PEDALS

Resin Test Ride Pedals with toe clips, CEN std.

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL	XXL
Ground-Top	912mm	931mm	950mm	969mm	988mm
Bottom Bracket Height - Low Setting	330mm	330mm	330mm	330mm	330mm
Top Tube Length (Horizontal)	560mm	590mm	617mm	645mm	665mm
Head Tube Height	90mm	110mm	130mm	150mm	170mm
Head Tube Angle - Low Setting	70°	70°	70°	70°	70°
Seat Tube Angle (Actual) - Low Setting	71°	71°	71°	71°	71°
Seat Tube Angle (Effective) - Low Setting	74°	74°	74°	74°	74°
Top Tube Length (Actual)	532mm	561mm	587mm	611mm	631mm
Seat Tube Length - Centre to Top	394mm	445mm	483mm	533mm	584mm
Wheel Base	1087mm	1118mm	1147mm	1176mm	1198mm
Standover Height	768mm	772mm	784mm	801mm	805mm
Stack	582mm	601mm	620mm	639mm	658mm
Reach	393mm	418mm	439mm	462mm	476mm
Chainstay Length	447mm	447mm	447mm	447mm	447mm
Crank Length	170mm	175mm	175mm	175mm	175mm
Handlebar Width	680mm	680mm	680mm	680mm	680mm
Stem Length	90mm	90mm	105mm	105mm	105mm
Seatpost Length	350mm	350mm	400mm	400mm	400mm
