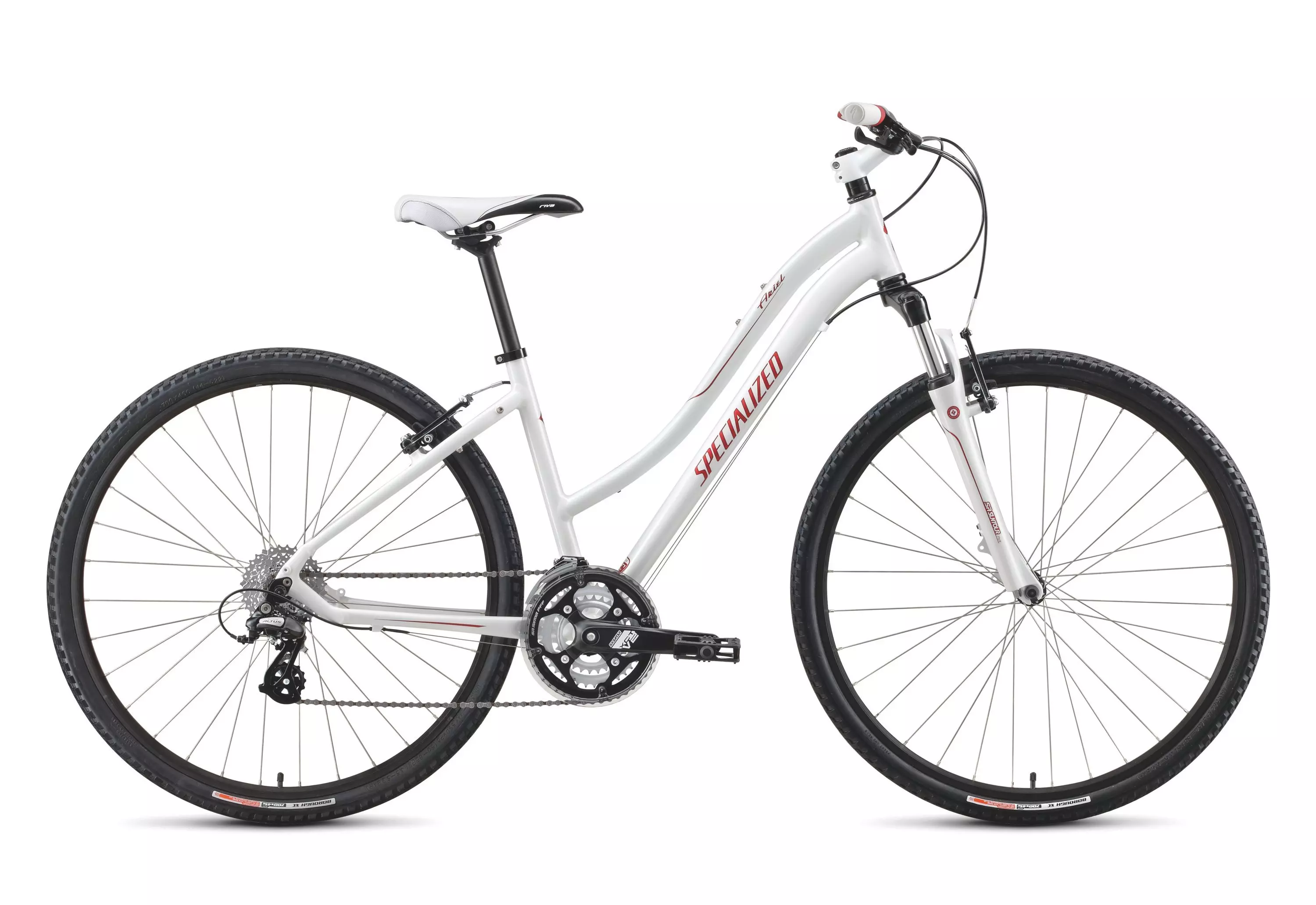

2011 Ariel Step Thru

0 Reviews

Classic step-through frame design inspires confidence and lends convenience to one…

Colour:

White/Red

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Classic step-through frame design inspires confidence and lends convenience to one of the most versatile bikes on (or off) the road.

Durable, double-walled 700c alloy rims can handle varied terrain
75mm-travel coil-sprung fork with alloy lowers allows this hybrid to go off-road with ease
Triple crankset gives you all the gears you need for varied terrain, with a chainguard for added confidence
Women's-specific BG Contour MTB grips are anatomically designed to keep hands pain-free and loose on long rides
Body Geometry Women's Riva MTB saddle combines generous padding and durable scuff guards for all-day performance and comfort
Step-through A1 Premium Aluminum frame provides easy access and lightweight confidence, with fender/rack braze-ons for versatility
Specialized Infinity Sport 700c tires come with a deep recessed tread and flat protection ideal for commuting, street use, or trekking

Technical Specifications

FRAMESET

FRAME

Step-thru Specialized A1 Premium Aluminium frame w/ smooth welding, fender and rack braze-ons, forged drop outs and kickstand mount

HEADSET

Ahead, loose ball, Cr-Mo cups, 25.5mm stack

SEAT BINDER

Forged alloy

SUSPENSION

REAR SHOCK

FORK

SR SunTour SF11-NVX-700C, alloy lower, 28mm stanchions, coil spring

WHEELS

RIMS

Alloy double wall, 32h

FRONT HUB

Double sealed, ground race, dual lock nuts w/ 17mm contact side, 5mm QR

REAR HUB

Double sealed, ground race, dual lock nuts w/ 19mm contact side, 5mm QR

SPOKES

2mm (14g) stainless

FRONT TIRE

Specialized Borough XC Sport, 700x45c, 60TPI, wire bead

REAR TIRE

Specialized Borough XC Sport, 700x45c, 60TPI, wire bead

INNER TUBES

Schraeder valve

DRIVETRAIN

FRONT DERAILLEUR

Shimano FD-TX51, 31.8mm clamp, top swing, dual pull

REAR DERAILLEUR

Shimano Altus, 7-speed

SHIFT LEVERS

Shimano, SL-M310, 7-speed rapid fire

CASSETTE

SRAM PG-730, 7-speed, 12-32t

CHAIN

KMC Z7

CRANKSET

SR SunTour Square taper spline, replaceable outer ring, w/ chainguard

CHAINRINGS

48 x38 x 28T w/ chainguard

BOTTOM BRACKET

Cartridge bearing, square spindle with crank stop right side and capless bolts

COCKPIT

SEATPOST

Alloy, 2-bolt head, 12.5mm offset, 27.2mm

STEM

Melt-forged alloy, 20 degree rise, 25.4mm clamp

HANDLEBARS

Hi-Ten riser bar, 25.4mm, 32mm rise, 640mm wide, 8 degree back sweep, 6 degree up

GRIPS

BG Contour, women's grip

SADDLE

Body Geometry Women's Riva MTB, 155mm width

BRAKES

FRONT BRAKE

Die cast, alloy ""V"" brake, 60mm 1pc. pad

REAR BRAKE

Die cast, alloy ""V"" brake, 60mm 1pc. pad

BRAKE LEVERS

""V""-brake, Linear pull

ACCESSORIES

PEDALS

Composite plastic body, loose ball w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
