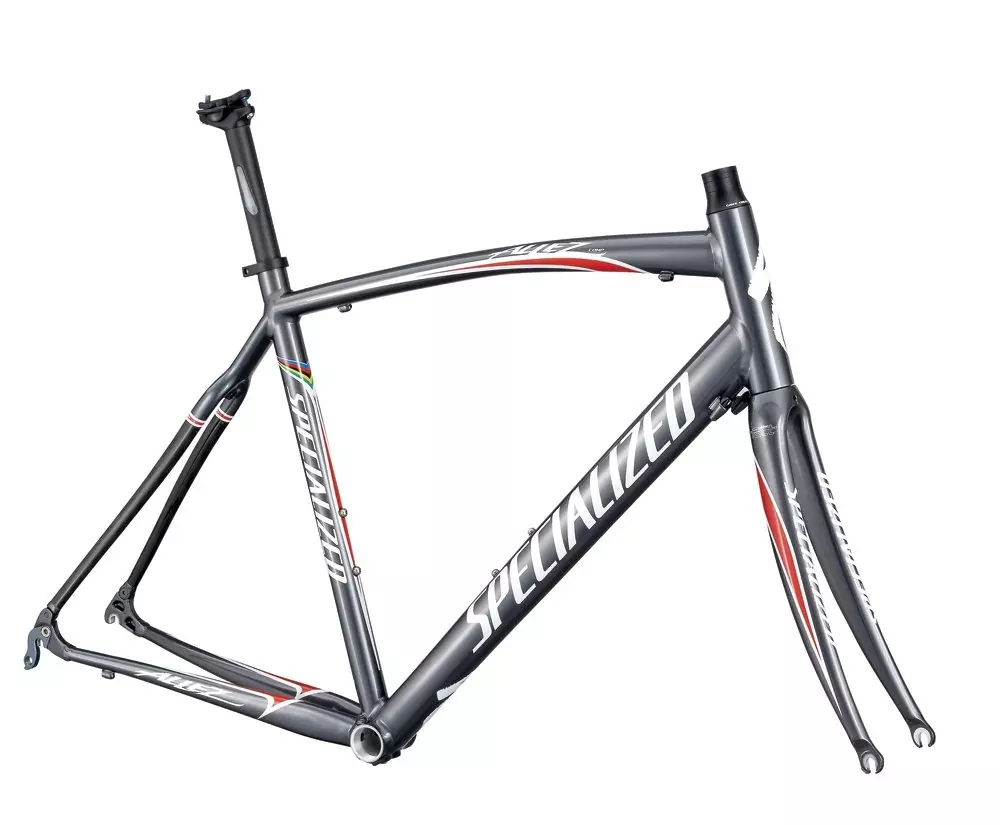

2009 Allez Comp Frameset

0 Reviews

OVER 20 YEARS AGO, we named our first performance road machine after the French word…

Product Details

Add Icon

OVER 20 YEARS AGO, we named our first performance road machine after the French word for 'go.' With an entirely redesigned alloy frame reminiscent of the Tarmac, the new Allez delivers the light weight, efficiency and precision handling demanded by enthusiast road riders everywhere, regardless of how they say 'fast.'

  • The new smooth-welded E5 frame, which features our seamlessly integrated FACT carbon seatstays, is solid, light, and fast.

  • The Allez carbon fork soaks up road vibration, provides laser-accurate steering, and is ultra light.

  • Cage bearings in the headset are easy to maintain, the integrated headset compliments the seamless look of the frame.

  • The Pavé II carbon seatpost uses an integrated Zertz insert to minimize vibrations.

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized E5 aluminum, fully manipulated tubing, smooth weld compact race design, FACT carbon seatstays

FORK

Specialized FACT carbon, carbon fiber legs, aluminum crown and steerer

HEADSET

Specialized Mindset, 1-1/8"" integrated threadless, steel cage bearings, 20mm alloy cone with one 10mm and two 5mm alloy spacers

SEAT BINDER

Specialized alloy 31.8mm

COCKPIT

SEATPOST

Specialized Pavé II, FACT carbon w/ Zertz insert, aluminum head, 27.2mm

BRAKES

FRONT BRAKE

Ultralight dual pivot brakes, Teflon pivots, forged alloy w/ cartridge pads

REAR BRAKE

Ultralight dual pivot brakes, Teflon pivots, forged alloy w/ cartridge pads

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
495254565861
Ground-Top71.5mm71.5mm69mm69mm67.5mm67.5mm
Seat-Tube Angle60°65°60°59°56°59°
Head-Tube Angle580°580°587°595°610°617°
Chain-Stay Length45mm45mm45mm43mm43mm43mm
Top-Tube Length, Horizontal74mm75.5mm73.5mm73.25mm72.5mm73mm
Front-Centre110mm130mm155mm180mm205mm230mm
Handle-Bar Width300mm350mm350mm350mm350mm350mm
Seat-Tube Length, B-B Centre to Top405mm405mm405mm405mm407mm410mm
Fork Rake974mm975mm982mm991mm1008mm1018mm
B-B Drop71.75mm72.5mm72.5mm73mm73.5mm73mm
Stack430mm480mm500mm520mm540mm580mm
Reach518mm537mm548mm565mm582mm600mm
Trail722mm755mm777mm800mm822mm853mm
Geometry
