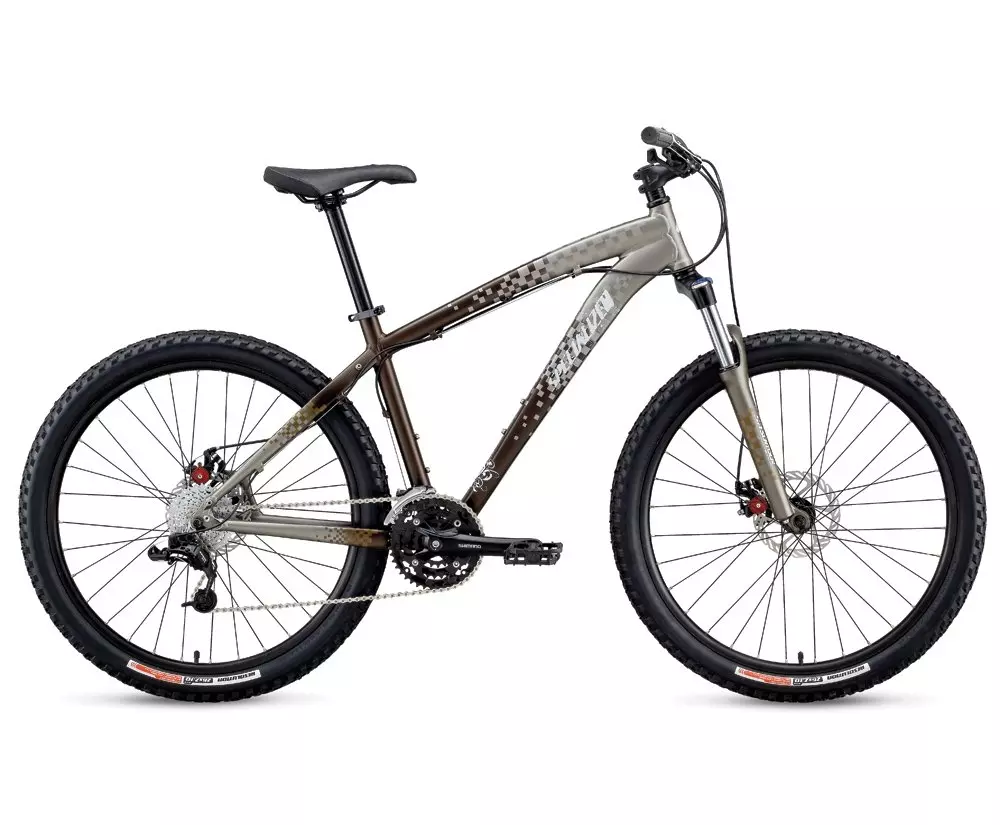

2009 P.2 All Mountain

0 Bewertungen

FREIZEIT ALL MOUNTAIN HARDTAILDie Bikes der P. All Mountain Series entspringen einem…

Produktdetails

FREIZEIT ALL MOUNTAIN HARDTAILDie Bikes der P. All Mountain Series entspringen einem Lifestyle, der an Deinen Innenstadt-Spots und selbst auf Trails die Grenzen der Physik auslotet. Du hast die Tricks und den Style? Wir haben das passende Bike - unabhängig von Alter, Größe und Budget.Unsere diesjährige All Mountain-Version ist komplett überarbeitet, um so tough zu sein wie ein P.-Bike, aber im Gewicht gegen einige XC-Bikes der Konkurrenz antreten zu können.

The stout, fully butted P.1 AM frame is constructed of our A1 Premium Aluminum, with a double ORE down tube and externally machined head tube for even greater strength.
The Suntour SF9 fork features 100mm of smooth coil/mcu-sprung travel, with hydraulic lockout and external preload adjustment for fine-tuned performance.
The 3D-forged stem features an oversized 31.8mm bar-clamp area for extra stiffness.
Avid BB5 mechanical disc brakes deliver smooth, reliable stops with 160mm G2 Clean Sweep rotors, front and back.
A Sram X4 rear derailleur and X4 8-speed trigger shifters allow sure, precise and quick shifts.
The Shimano crankset and Octalink bottom bracket provide optimal power transfer and precise shifts.
SBC HRD 26-inch rims are double-walled and eyeletted for strength and long life.
26x2.1-inch Resolution Sport tires provide superior traction with ultimate predictability.
The Body Geometry All Mountain saddle provides all-day comfort in a stylish package.

Technische Spezifikationen

FRAMESET

FRAME

Specialized A1 Premium Aluminum, tig weld, fully-butted w/ double ORE DT, externally machined HT, forged dropouts w/ replaceable 98954020 hanger, disc only

HEADSET

Specialized 1-1/8"" threadless, loose ball

SEAT BINDER

Specialized alloy w/ QR

SUSPENSION

FORK

SR Suntour SF9-XCM-V2-D-HLO, 100mm, 1pc. alloy lower, 30mm Hi-Ten stanchions, coil/mcu spring w/ hydraulic LO and preload adj., spring assisted seals, disc only

WHEELS

RIMS

Specialized/Alex HRD, 26"", pinned, alloy double wall w/ eyelets, 32h

FRONT HUB

Specialized Hi Lo, forged alloy, double sealed, ground race, 32h

REAR HUB

Specialized, forged alloy, double sealed, ground race, cassette, QR, 32h

SPOKES

1.8mm (15g) stainless

FRONT TIRE

Specialized Resolution Sport, 26 x 2.1"", wire bead, 30TP

REAR TIRE

Specialized Resolution Sport, 26 x 2.1"", wire bead, 30TP

INNER TUBES

Specialized schraeder valve

DRIVETRAIN

FRONT DERAILLEUR

Shimano Altus, 34.9mm clamp, bottom swing

REAR DERAILLEUR

SRAM X-4, midcage

SHIFT LEVERS

SRAM X-4, 8-speed trigger

CASSETTE

SRAM PG-830, 8-speed, 11-32t

CHAIN

KMC X8 w/ reuseable Missing Link

CRANKSET

Shimano FCM-361

CHAINRINGS

48 x 38 x 28t

BOTTOM BRACKET

Shimano BB-ES25, Octalink spline, cartridge bearing, 68mm x 118mm

COCKPIT

STEM

Specialized 3D forged, 7 degree rise, 31.8mm clamp

HANDLEBARS

Specialized alloy riser bar, 31.8mm, 40mm rise, 660mm wide, 8 degree back sweep, 8 degree up

GRIPS

Specialized dual compound Kraton, no flange, 130mm

SADDLE

Specialized BG All Mountain, 143mm wide, front and rear bumpers

SEATPOST

Specialized alloy two bolt, no offset, micro adjust, 30.9mm

BRAKES

FRONT BRAKE

Avid BB5, mechanical disc, caliper/adapter w/ 160mm G2 Clean Sweep rotor

REAR BRAKE

Avid BB5, mechanical disc, caliper/adapter w/ 160mm G2 Clean Sweep rotor

BRAKE LEVERS

Avid FR-5, alloy, two-finger, linear pull

ACCESSORIES

PEDALS

Specialized alloy platform, 9/16""

*Gewichte basieren auf der Produktion lackierter Rahmen, wie abgebildet. Tatsächliche Gewichte variieren je nach Farbgebung, Rahmengröße und Komponentenvariation. Spezifikationen können ohne Vorankündigung geändert werden.

Geometrie

	12	15	17	19	21	24
Tretlagerhöhe 650x2.8"	299mm	299mm	299mm	299mm	299mm	299mm
Oberrohrlänge (horizontal)	535mm	565mm	590mm	615mm	640mm	665mm
Steuerrohrhöhe	100mm	100mm	120mm	120mm	140mm	160mm
Vorlauf	69°	70°	70°	70°	70°	70°
Radstand	73°	73°	73°	73°	73°	73°
Oberrohrlänge tatsächlich	535mm	550mm	569mm	590mm	616mm	647mm
Seat Tube Length - Center to Top	305mm	381mm	432mm	483mm	533mm	610mm
Radstand	1028mm	1049mm	1075mm	1100mm	1126mm	1152mm
Überstandshöhe	680mm	732mm	768mm	800mm	833mm	880mm
Kettenstreben-Länge	427mm	427mm	427mm	427mm	427mm	427mm
Kurbellänge	165mm	170mm	170mm	175mm	175mm	175mm
Lenkerbreite	640mm	640mm	640mm	640mm	640mm	640mm
Vorbaulänge	60mm	60mm	75mm	75mm	90mm	90mm
Länge Sattelstütze	350mm	350mm	350mm	400mm	400mm	400mm
