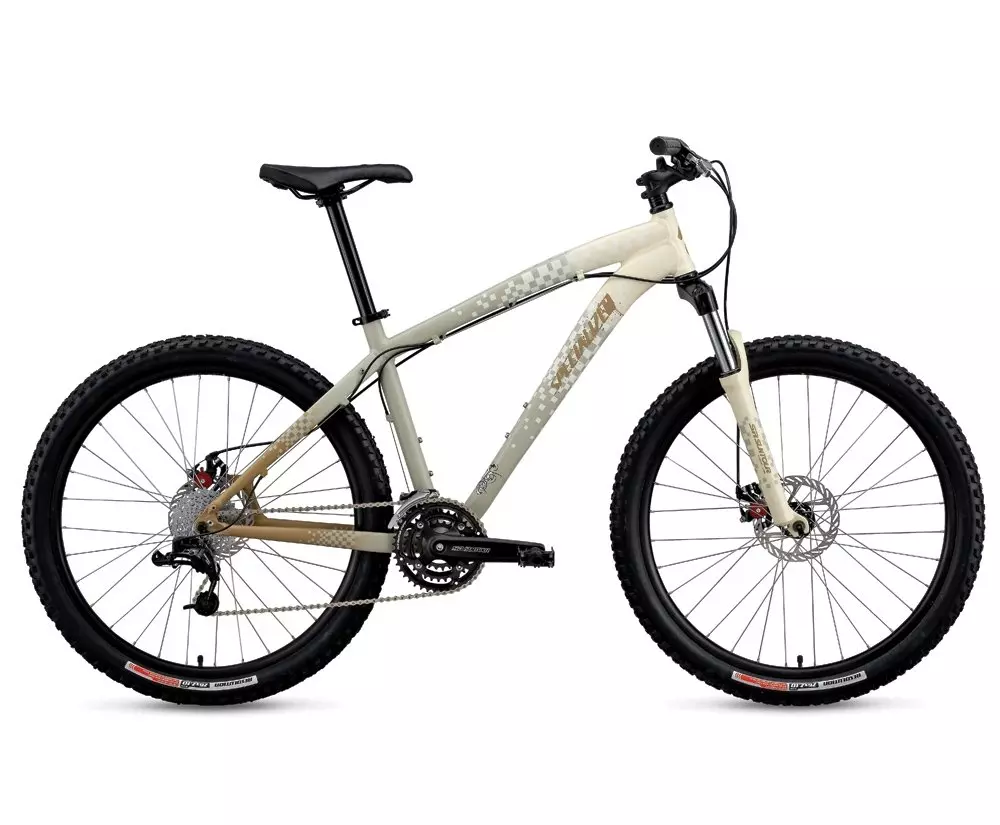

2009 P.1 All Mountain Disc
0 Bewertungen
FREIZEIT ALL MOUNTAIN HARDTAILDie Bikes der P. All Mountain Series entspringen einem…
Produktdetails
FREIZEIT ALL MOUNTAIN HARDTAILDie Bikes der P. All Mountain Series entspringen einem Lifestyle, der an Deinen Innenstadt-Spots und selbst auf Trails die Grenzen der Physik auslotet. Du hast die Tricks und den Style? Wir haben das passende Bike - unabhängig von Alter, Größe und Budget.Unsere diesjährige All Mountain-Version ist komplett überarbeitet, um so tough zu sein wie ein P.-Bike, aber im Gewicht gegen einige XC-Bikes der Konkurrenz antreten zu können.
This fully butted A1 Premium Aluminum frame is built to be All Mountain tough at weights that rival our competitors' XC frames.
The 100mm-travel SR Suntour fork uses coil springs, external preload adjustment and oversized stanchions for extra strength.
The 3D-forged stem features a 10-degree rise for perfect bar positioning.
Avid BB5 mechanical disc brakes, with 160mm G2 Clean Sweep rotors, allow for easily controlled stops.
The medium-cage SRAM X4 rear derailleur gives snappy shifts with less chain slap.
8-speed SRAM X4 trigger shifters provide lightning-fast gear changes.
SR Suntour replaceable cranks feature an Octalink-splined bottom bracket interface for added strength and durability.
SBC HRD rims are double walled for strength.
Specialized Resolution Sport 26x2.1-inch tires have a larger volume for managing challenging terrain.
The Body Geometry All Mountain saddle helps protect your important parts with pressure-relieving technology.
Technische Spezifikationen
FRAMESET
FRAME
Specialized A1 Premium Aluminum, tig weld, fully-butted w/ double ORE DT, externally machined HT, forged dropouts w/ replaceable 98954020 hanger, disc only
HEADSET
Specialized 1-1/8"" threadless, loose ball
SEAT BINDER
Specialized alloy w/ QR
WHEELS
RIMS
Specialized/Alex HRD, 26"", pinned, alloy double wall, 32h
FRONT HUB
Specialized forged alloy, double sealed, ground race, 32h
REAR HUB
Specialized, forged alloy, double sealed, ground race, cassette, QR, 32h
SPOKES
1.8mm (15g) stainless
FRONT TIRE
Specialized Resolution Sport, 26 x 2.1"", wire bead, 30TP
REAR TIRE
Specialized Resolution Sport, 26 x 2.1"", wire bead, 30TP
INNER TUBES
Specialized schraeder valve
SUSPENSION
FORK
SR Suntour SF9-XCM-V2, 100mm, 1pc. alloy lower, 30mm Hi-Ten stanchions, coil/mcu spring w/ preload adj., spring seals, disc only
DRIVETRAIN
FRONT DERAILLEUR
Shimano Altus, 34.9mm clamp, bottom swing
REAR DERAILLEUR
SRAM X-4, midcage
SHIFT LEVERS
SRAM X-4, 8-speed trigger
CASSETTE
SRAM PG-820, 8-speed, 11-32t
CHAIN
KMC X8 w/ reuseable Missing Link
CRANKSET
SR SunTour, Octalink spline
CHAINRINGS
44 x 32 x 22t
BOTTOM BRACKET
Shimano BB-ES25, Octalink spline, cartridge bearing, 68mm x 118mm
COCKPIT
STEM
Specialized 3D forged, 10 degree rise, 25.4mm clamp
HANDLEBARS
Specialized alloy riser bar, 25.4mm, 38mm rise, 640mm wide, 8 degree back sweep, 8 degree up
GRIPS
Specialized dual compound Kraton, no flange, 130mm
SADDLE
Specialized BG All Mountain, 143mm wide, front and rear bumpers
SEATPOST
Specialized alloy two bolt, no offset, micro adjust, 30.9mm
ACCESSORIES
PEDALS
Steel cage, composite body, 9/16""
BRAKES
FRONT BRAKE
Avid BB5, mechanical disc, caliper/adapter w/ 160mm G2 Clean Sweep rotor
REAR BRAKE
Avid BB5, mechanical disc, caliper/adapter w/ 160mm G2 Clean Sweep rotor
BRAKE LEVERS
Specialized linear pull
* Gewichte basieren auf der Produktion lackierter Rahmen, wie abgebildet. Tatsächliche Gewichte variieren je nach Farbgebung, Rahmengröße und Komponentenvariation. Spezifikationen können ohne Vorankündigung geändert werden.
Geometrie
| 12 | 15 | 17 | 19 | 21 | 24 | |
|---|---|---|---|---|---|---|
| Tretlagerhöhe 650x2.8" | 299mm | 299mm | 299mm | 299mm | 299mm | 299mm |
| Oberrohrlänge (horizontal) | 535mm | 565mm | 590mm | 615mm | 640mm | 665mm |
| Steuerrohrhöhe | 100mm | 100mm | 120mm | 120mm | 140mm | 160mm |
| Vorlauf | 69° | 70° | 70° | 70° | 70° | 70° |
| Radstand | 73° | 73° | 73° | 73° | 73° | 73° |
| Oberrohrlänge tatsächlich | 535mm | 550mm | 569mm | 590mm | 616mm | 647mm |
| Seat Tube Length - Center to Top | 305mm | 381mm | 432mm | 483mm | 533mm | 610mm |
| Radstand | 1028mm | 1049mm | 1075mm | 1100mm | 1126mm | 1152mm |
| Überstandshöhe | 680mm | 732mm | 768mm | 800mm | 833mm | 880mm |
| Kettenstreben-Länge | 427mm | 427mm | 427mm | 427mm | 427mm | 427mm |
| Kurbellänge | 165mm | 170mm | 170mm | 175mm | 175mm | 175mm |
| Lenkerbreite | 640mm | 640mm | 640mm | 640mm | 640mm | 640mm |
| Vorbaulänge | 60mm | 60mm | 75mm | 75mm | 90mm | 90mm |
| Länge Sattelstütze | 350mm | 350mm | 350mm | 400mm | 400mm | 400mm |
