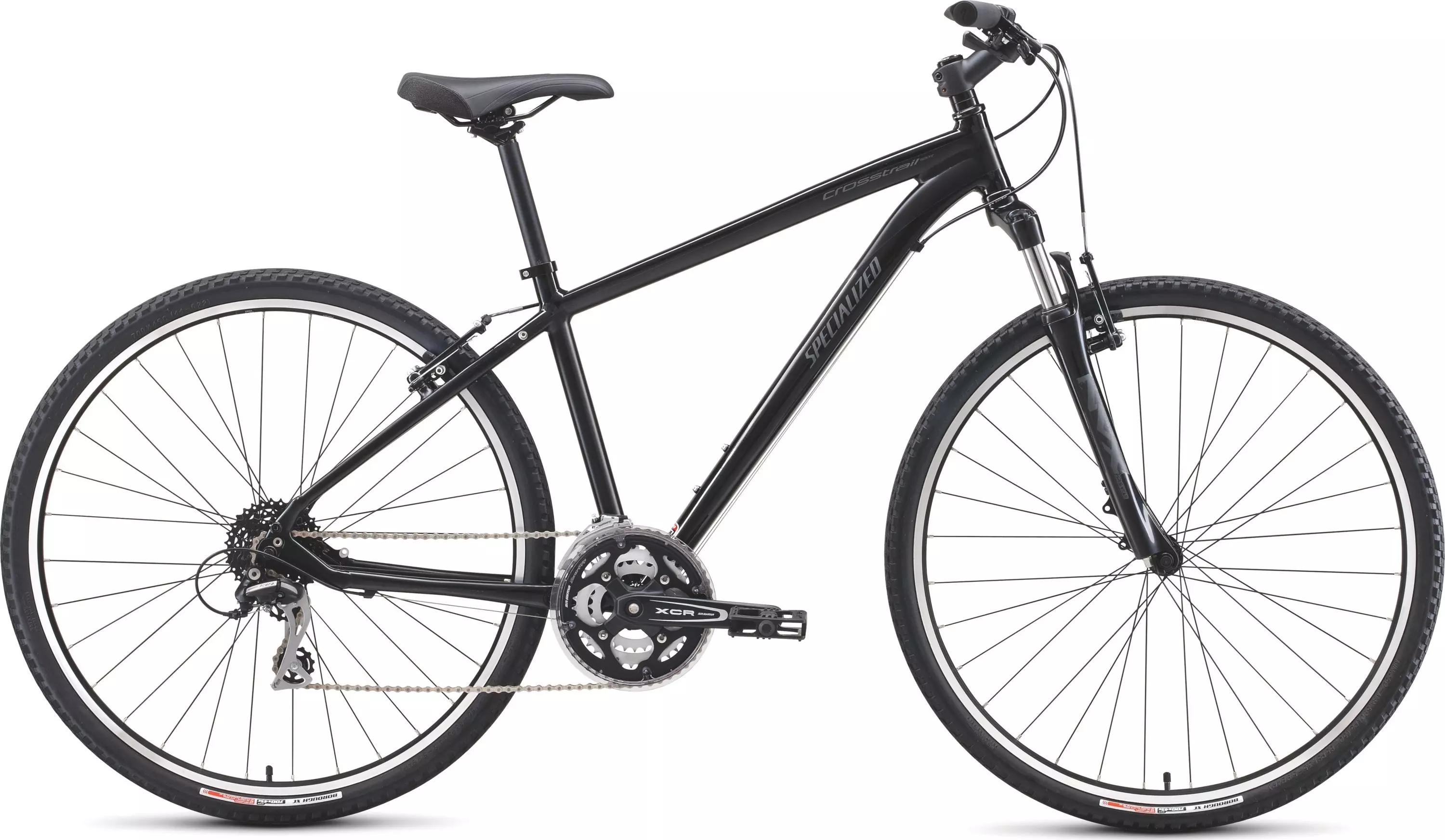

2011 Crosstrail Sport
0 Bewertungen
Seine höherwertige Federgabel, das geringere Gewicht und die breitere Übersetzungsspanne…
Farbe:
Black
Was ist meine Größe?
Wähle eine Größe
Produktdetails
Seine höherwertige Federgabel, das geringere Gewicht und die breitere Übersetzungsspanne bringen das Crosstrail Sport einen Schritt voran – und seinen Fahrer noch viel weiter.
Double-walled 700c rims with machined sidewalls for consistent braking
Specialized Borough XC Sport 700c tires roll fast, yet have enough bite for the trail
BG Contour MTB grips are anatomically designed to keep hands pain-free and loose on long rides
75mm-travel coil-sprung fork with lockout and alloy lowers allows this hybrid to go off-road with ease
Triple crankset has all the gears you need for varied terrain, with Octalink-splined BB for added stiffness
Smooth-welded A1 Premium Aluminum frame for lightweight confidence on any surface, with fender/rack braze-ons for versatility
Technische Spezifikationen
FRAMESET
FRAME
Specialized A1 Premium Aluminium w/ smooth welding, w/ fender and rack braze-ons, forged drop outs w/ kickstand mount
HEADSET
Ahead, loose ball, Cr-Mo cups, 25.5mm stack
SEAT BINDER
Forged alloy
SUSPENSION
REAR SHOCK
FORK
SR SunTour SF11-NVX-MLO, alloy lower, 75mm travel, 28mm stanchion, coil spring, mech. LO
WHEELS
RIMS
Alloy double wall, machined sidewalls, pinned, 32h
FRONT HUB
Double sealed, ground race, dual lock nuts w/ 17mm contact side, 5mm QR
REAR HUB
Double sealed, ground race, dual lock nuts w/ 19mm contact side, 5mm QR
SPOKES
2mm (14g) stainless
FRONT TIRE
Specialized Borough XC Sport, 700x45c, 60TPI, wire bead
REAR TIRE
Specialized Borough XC Sport, 700x45c, 60TPI, wire bead
INNER TUBES
Schraeder valve
DRIVETRAIN
FRONT DERAILLEUR
Shimano FD-M191, 31.8mm clamp, top swing, dual pull
REAR DERAILLEUR
Shimano Acera, 8-speed
SHIFT LEVERS
Shimano, SL-M310, 8-speed rapid fire
CASSETTE
SRAM 8-speed, 11-32t
CHAIN
KMC Z8 w/ reusable Missing Link
CRANKSET
SR SunTour Octalink spline, replaceable rings, w/composite anti-jump disc
CHAINRINGS
48 x 38 x 28T w/ chainguard
BOTTOM BRACKET
Octalink spline 68mm
COCKPIT
SEATPOST
Alloy, 2-bolt head, 12.5mm offset, 27.2mm
STEM
Melt-forged alloy, 20 degree rise, 25.4mm clamp
HANDLEBARS
Alloy riser bar, 25.4mm, 25mm rise, 8 degree back sweep, 6 degree up
GRIPS
BG Contour, closed end, 132mm
SADDLE
Specialized XC, Body Geometry, 143mm width, front and rear bumpers
BRAKES
FRONT BRAKE
Die cast, alloy ""V"" brake, 60mm 1pc. pad
REAR BRAKE
Die cast, alloy ""V"" brake, 60mm 1pc. pad
BRAKE LEVERS
""V""-brake, Linear pull
ACCESSORIES
PEDALS
Composite plastic body, loose ball w/ reflectors
*Gewichte basieren auf der Produktion lackierter Rahmen, wie abgebildet. Tatsächliche Gewichte variieren je nach Farbgebung, Rahmengröße und Komponentenvariation. Spezifikationen können ohne Vorankündigung geändert werden.
Geometrie
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Mitte Tretlager - Mitte Vorderachse | 898mm | 910mm | 919mm | 931mm | 945mm |
| Tretlagerhöhe 650x2.8" | 292mm | 292mm | 292mm | 292mm | 292mm |
| Oberrohrlänge (horizontal) | 579mm | 594mm | 605mm | 620mm | 635mm |
| Steuerrohrhöhe | 90mm | 100mm | 110mm | 120mm | 135mm |
| Vorlauf | 69.5° | 70° | 70° | 70.5° | 70.5° |
| Radstand | 74° | 74° | 74° | 73.5° | 72.5° |
| Oberrohrlänge tatsächlich | 569mm | 578mm | 585mm | 597mm | 612mm |
| Seat Tube Length - Center to Top | 394mm | 445mm | 483mm | 533mm | 584mm |
| Radstand | 1111mm | 1121mm | 1133mm | 1138mm | 1141mm |
| Überstandshöhe | 744mm | 779mm | 804mm | 838mm | 869mm |
| Stack | 606mm | 618mm | 627mm | 639mm | 653mm |
| Reach | 405mm | 417mm | 425mm | 431mm | 429mm |
| Kettenstreben-Länge | 459mm | 459mm | 459mm | 459mm | 459mm |
