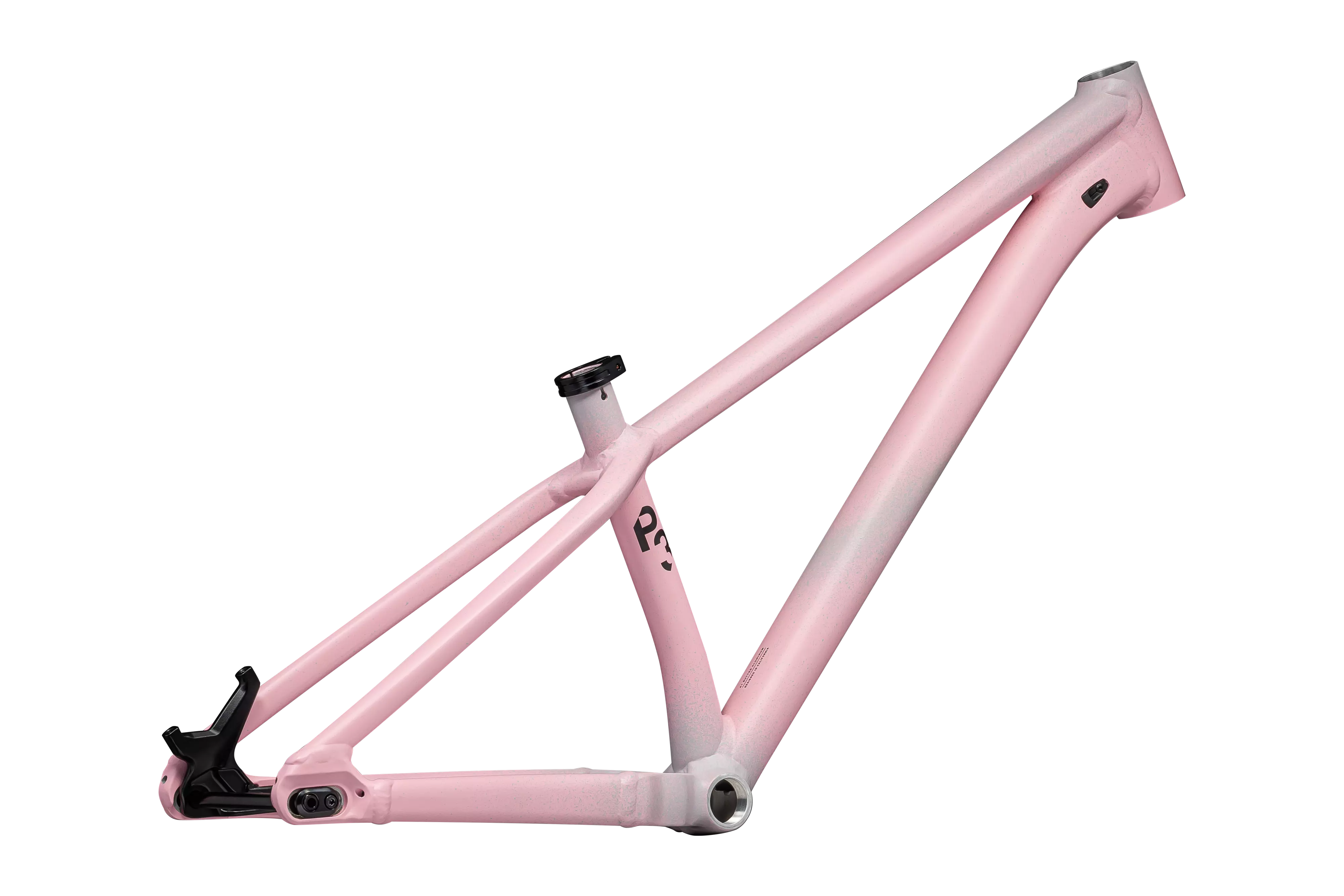

P.3 Frame

5

1 Reviews

This totally redesigned P.Series frame gives riders of all sizes a jumping off point…

Product Details

Add Icon

This totally redesigned P.Series frame gives riders of all sizes a jumping off point to a life on bikes. The lightweight, but tough alloy frame is designed to take all the hits and keep rolling—across all frame sizes. Our approach to these robust bikes centers around delivering a simple, high-quality platform that's versatile for all riders, and packs in category-first features that make a difference to the rider.

SLEEK SIMPLICITY — For the rider focusing on progression, eliminating every other variable is paramount. The durable lightweight alloy frame of the P.Series stands up to the tough demands of a modern DJ rig and accepts internally routed cables.

SIZED FOR ALL — Frames available in dedicated 20”, 24”, and 26” configurations as well as the P.4 that can run both 26” and 27.5” (P.4 is spec’d with 27.5”).

REIMAGINE YOUR RIDE — P.Series frames are dropper ready, derailleur compatible, and use adjustable dropouts.

TOUGH TECH — Boost spacing in the rear, a tapered headtube, and threaded bottom-bracket make P.Series stiff and easy to maintain.

  • Specialized P.3, A1 Premium Alloy, 26", fully-butted tubing, dropper post compatible and 27.5" wheel compatible.

Technical Specifications

Add Icon

Frameset

Frame

Specialized P.3, A1 Premium Alloy, 26", Fully Butted Tubing, Tapered Head Tube, BSA 73mm BB Shell, 12x148TA Sliding Dropouts, Single Speed or Geared Compatible, 52mm CL, Internal cable routing, 30.9 Seat Tube, Dropper Post Compatible, 27.5" Wheel Compatible

Seat Binder

Alloy, single-bolt, 34.9mm

Weight

Weight

2.06kg (4 lb, 8.7 oz)

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
P3
Seatpost Length0mm
Stack563mm
Reach415mm
Head-Tube Length115mm
Head-Tube Angle68.5°
B-B Height318mm
B-B Drop22mm
Trail94mm
Fork Length (full)480mm
Fork Rake/Offset37mm
Front-Center668mm
Chain-Stay Length385mm
Wheelbase1052mm
Top-Tube Length (horizontal)598mm
Bike Stand-Over Height691mm
Seat-Tube Length335mm
Seat-Tube Angle72°
Wheel Size26inch
Geometry
