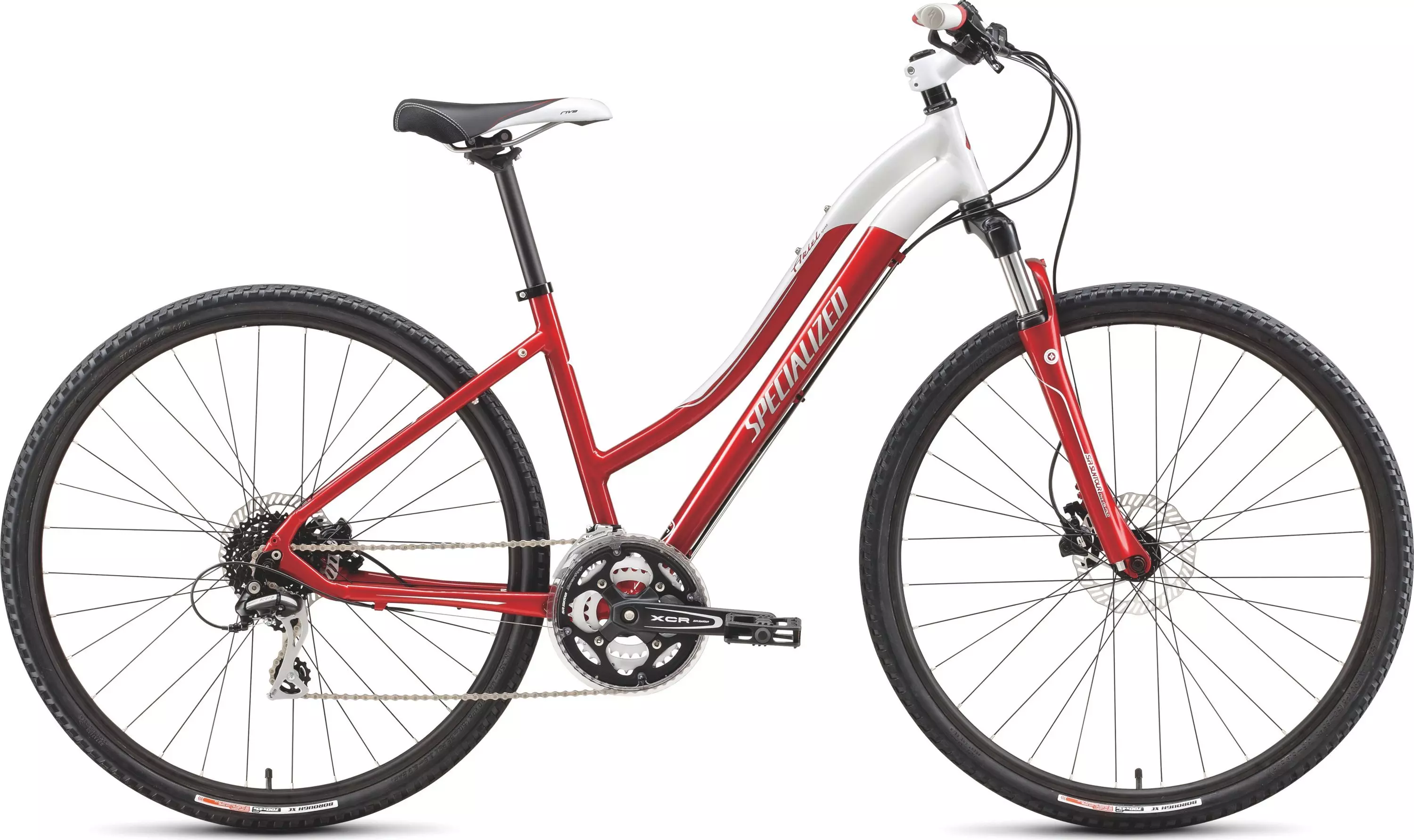

2011 Ariel Sport Disc Int
0 Reviews
Product Details
Specialized Borough XC Sport 700c tires roll fast, yet have enough bite for the trail
Tektro Draco hydraulic disc brakes with dual pistons and women's-specific levers assure precision braking and fit
BG Ariel saddle has front/rear bumpers for on and off-road durability and ample women's-contoured padding for comfort
Women's A1 Premium Aluminum frame with lower standover for lightweight confidence and fender/rack braze-ons for versatility
Triple crankset has all the gears you need for varied terrain, with Octalink-splined BB for added stiffness, chainguard included
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminium w/ smooth welding, w/ fender and rack braze-ons, forged drop outs w/ kickstand mount
HEADSET
Ahead, loose ball, Cr-Mo cups, 25.5mm stack
SEAT BINDER
Forged alloy
SUSPENSION
REAR SHOCK
FORK
SF11-NVX-DS-MLO, alloy lower, 28mm stanchion, coil spring, mech. LO
WHEELS
RIMS
Alloy double wall, pinned, disc mount, 32h
FRONT HUB
Machined disc side flange and mount, sealed bearings, dual lock nuts w/ 19mm contact side
REAR HUB
Machined disc mount & flanges, doubel sealed, ground race, dual lock nuts w/ 19mm contact side
SPOKES
2mm (14g) stainless
FRONT TIRE
Specialized Borough XC Sport, 700x45c, 60TPI, wire bead
REAR TIRE
Specialized Borough XC Sport, 700x45c, 60TPI, wire bead
INNER TUBES
Schraeder valve
DRIVETRAIN
FRONT DERAILLEUR
Shimano FD-M191, 31.8mm clamp, top swing, dual pull
REAR DERAILLEUR
Shimano Acera, 8-speed
SHIFT LEVERS
Shimano, SL-M310, 8-speed rapid fire
CASSETTE
SRAM 8-speed, 11-32t
CHAIN
KMC Z8 w/ reusable Missing Link
CRANKSET
SR SunTour Octalink spline, replaceable rings, w/composite anti-jump disc
CHAINRINGS
48 x 38 x 28T w/ chainguard
BOTTOM BRACKET
Octalink spline 68mm
COCKPIT
SEATPOST
Alloy, 2-bolt head, 12.5mm offset, 27.2mm
STEM
Melt-forged alloy, 20 degree rise, 25.4mm clamp
HANDLEBARS
Alloy riser bar, 25.4mm, 25mm rise, 8 degree back sweep, 6 degree up
GRIPS
BG Contour, women's grip
SADDLE
Body Geometry Women's Riva MTB, 155mm width
BRAKES
FRONT BRAKE
Tektro Draco hydraulic disc brake, dual piston
REAR BRAKE
Tektro Draco hydraulic disc brake, dual piston
BRAKE LEVERS
Hydraulic women's specific lever
ACCESSORIES
PEDALS
Composite plastic body, loose ball w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | |
|---|---|---|---|
| Ground-Top | 920mm | 930mm | 938mm |
| Bottom Bracket Height - Low Setting | 292mm | 292mm | 292mm |
| Top Tube Length (Horizontal) | 560mm | 580mm | 600mm |
| Head Tube Height | 110mm | 120mm | 130mm |
| Head Tube Angle - Low Setting | 70° | 70° | 70° |
| Seat Tube Angle (Actual) - Low Setting | 74° | 74° | 74° |
| Seat Tube Length - Center to Top | 381mm | 432mm | 482mm |
| Wheel Base | 1089mm | 1109mm | 1130mm |
| Standover Height | 596mm | 599mm | 622mm |
| Stack | 627mm | 637mm | 646mm |
| Reach | 380mm | 398mm | 415mm |
| Chainstay Length | 459mm | 459mm | 459mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
