2019 P.Slope

Part No.: 91919-8022

$4.820.000

0 Reseñas

If rippin' it up slopestyle or going huge at the local dirt jumps is your thing,…

Color:

Gloss Jet Fuel/Black

Tamaño:

22.5" TT

Detalles del producto

If rippin' it up slopestyle or going huge at the local dirt jumps is your thing, the P.Slope is your bike. Featuring a tough, single-pivot, full suspension chassis and concentric bottom bracket, the P.Slope offers just enough rear travel to take the edge off the big hits while still riding like a hardtail.

The P.Slope spec includes a RockShox Pike DJ 26" fork, FOX FLOAT rear shock with 85mm of travel and a DPS damper, and powerful, SRAM Level T brakes to slow you down after your re-entry back to Earth.

The frame is constructed from A1 Premium Aluminum in order to keep the overall weight at a minimum, while also ensuring that the bike is plenty tough to take a hit. And when it comes to cool features that make the difference, you get forged horizontal dropouts and integrated chain tensioners to keep the rear wheel locked in place, ISCG 05 to run chainguides, and a tough, forged bottom bracket shell.
The RockShox Pike DJ fork includes the same stout 35mm chassis as its big brother, along with the revolutionary Charger damper and Solo Air system. The only real difference is in its 110mm of travel. But what does this mean for you? It means that you get a stiff construction that'll power through berms, and serve-up loads of bottom-out progression upon landing.
The SRAM Level T hydraulic disc brakes provide ample stopping power, while also keeping overall weight to a minimum.

Especificaciones técnicas

FRAMESET

FRAME

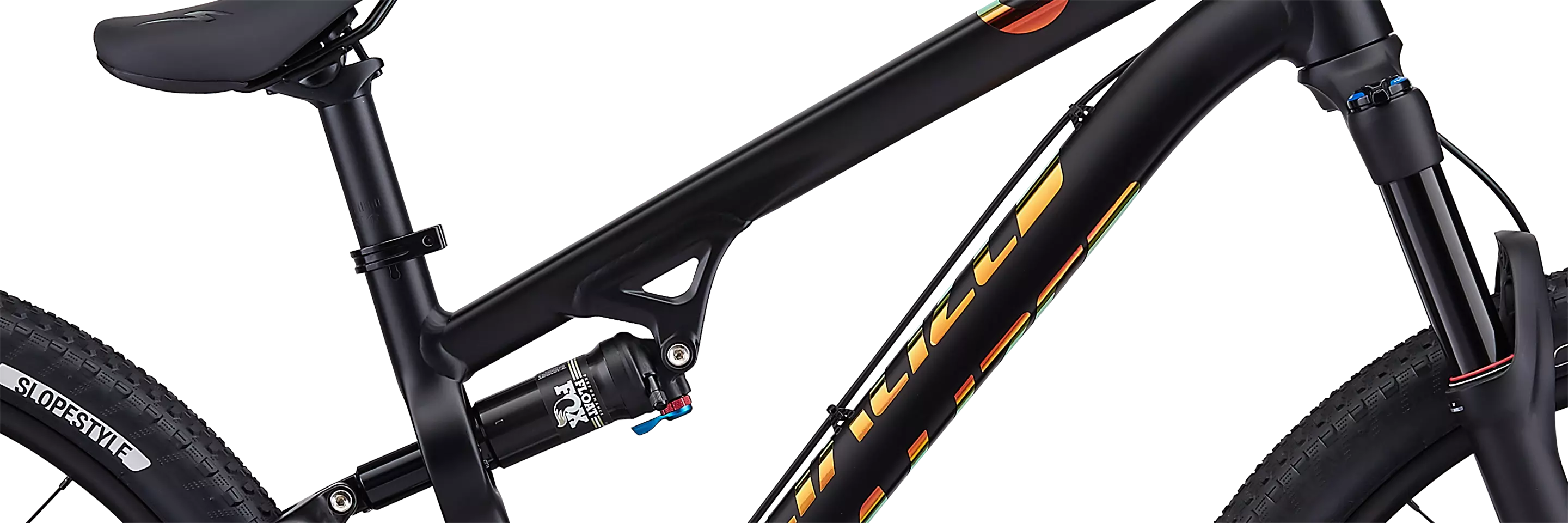

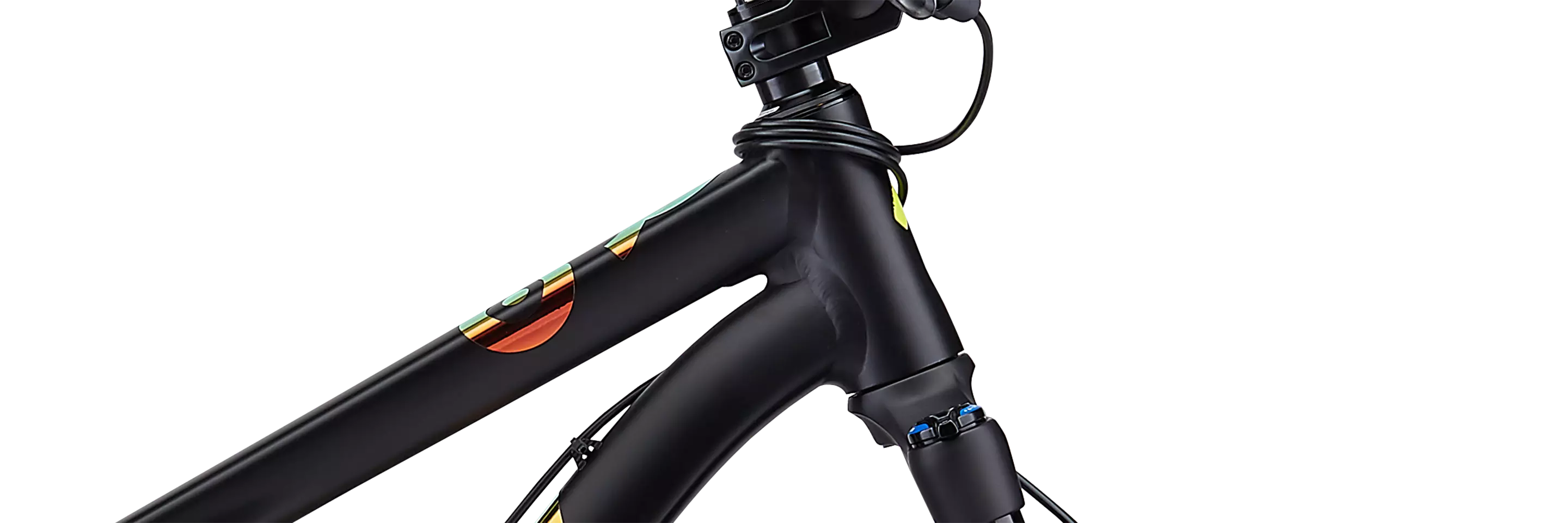

Specialized A1 Premium Aluminum, concentric bottom bracket, fully butted tapered head tube, forged BB30 bottom bracket shell, integrated ISCG 05 tabs, forged horizontal dropouts, integrated chain tensioners, 85mm of travel

SUSPENSION

FORK

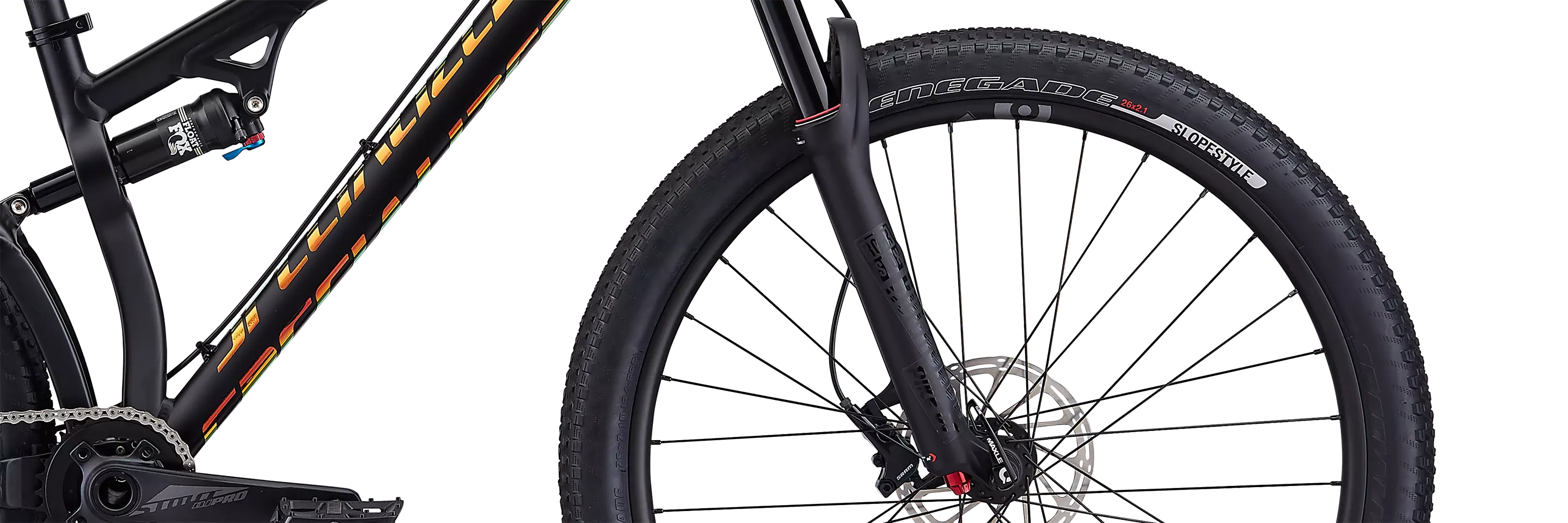

RockShox Pike DJ 26", Solo Air spring, external rebound, Motion Control low-speed compression, 15x100mm Maxle® thru-axle, 110mm of travel

REAR SHOCK

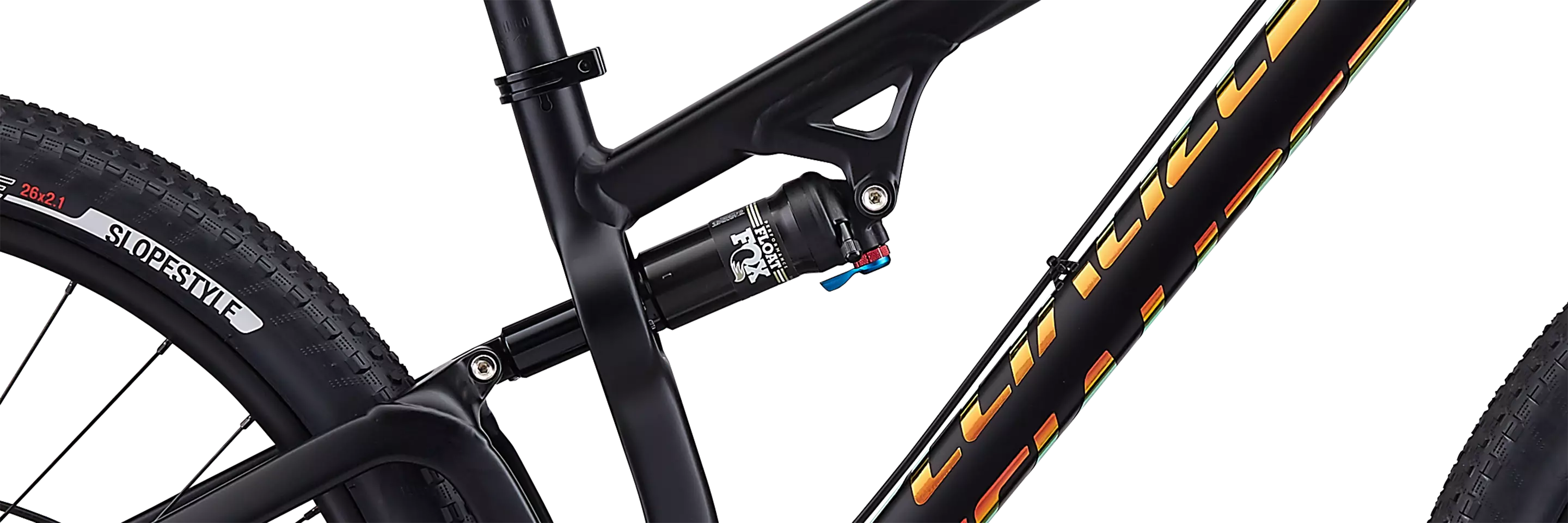

FOX FLOAT w/ DPS damper, 200x50mm, 85mm of travel

COCKPIT

HANDLEBARS

Specialized P.Series MTB Dirt, 6061 alloy, 9-degree backsweep, 6-degree upsweep, 38mm rise, 750mm width, 31.8mm clamp

STEM

Specialized P.Series, 4-bolt, 40mm

GRIPS

Specialized P.Grip, lock-on

SADDLE

Soder Dirt, steel rails

SEATPOST

Specialized 2-bolt head, forged alloy, 8mm offset, micro-adjust, 30.9mm

SEAT BINDER

Alloy, single-bolt, 34.9mm

BRAKES

FRONT BRAKE

SRAM Level T, hydraulic disc, 160mm

REAR BRAKE

SRAM Level T, hydraulic disc, 160mm

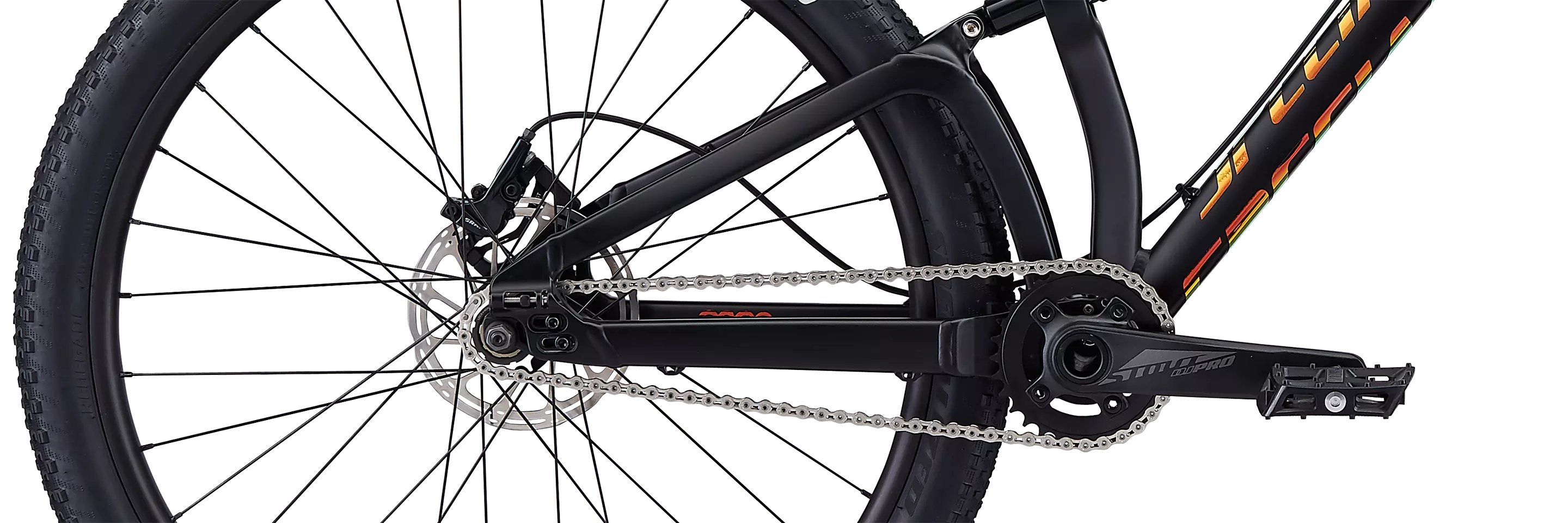

DRIVETRAIN

CASSETTE

Cr-Mo, 14t

CRANKSET

Stout DJ PRO, 30mm alloy spindle, 170mm

CHAINRINGS

Alloy, 30T

BOTTOM BRACKET

BB30 BB, 2-piece, 73mm shell

CHAIN

KMC K1SL, single-speed, 1/2x3/32"

WHEELS & TIRES

RIMS

P.Series 26" disc, 26.4mm internal width, 32h

FRONT HUB

P.Series Dirt Jump, sealed cartridge bearings, high-low flange, 15x100mm spacing, 32h

REAR HUB

P.Series Dirt Jump, sealed cartridge bearings, 10mm Cr-Mo axle, 32h

SPOKES

Stainless, 14g

FRONT TIRE

Renegade Slopestyle, 60 TPI, wire bead, 26x2.1"

REAR TIRE

Renegade Slopestyle, 60 TPI, wire bead, 26x2.1"

INNER TUBES

Schrader, 40mm valve

ACCESSORIES

PEDALS

Specialized Platform, nylon body, ball bearing, Cr-Mo, 9/16" spindle

* Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.

Geometría

	22.5" TT
Largo de biela	170mm
Ancho de manubrio	750mm
Largo de avance	40mm
Saddle Width	110mm
Largo de poste de asiento	150mm
Stack	580mm
Alcance	423mm
Largo de tubo de dirección	123mm
Ángulo de tubo de dirección	69.5°
BB Height	322mm
BB Drop	16mm
Trail	78mm
Fork Length, Full	493mm
Fork Rake/Offset	45mm
Distancia	682mm
Largo de vaina inferior	389mm
Distancia entre ejes	1070mm
Largo de tubo superior, Horizontal	541mm
Bike Standover Height	712mm
Seat Tube Length	355mm
Ángulo de tubo de asiento	78.5°
