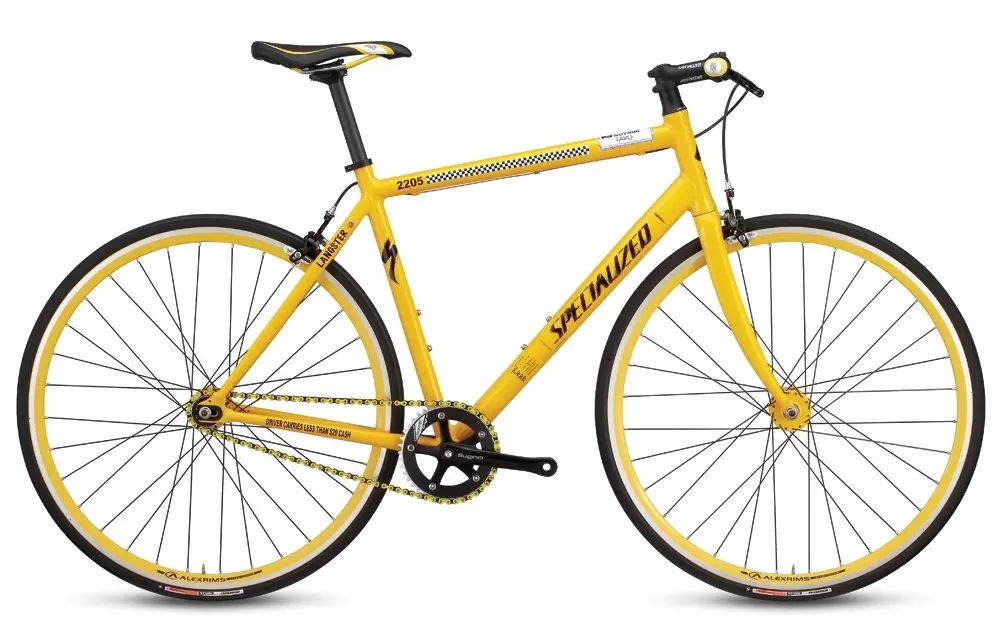

2009 Langster New York
0 Commentaires
BUILT FOR RALLYING CITY STREETS and lapping racers at the velodrome, the light and…
Caractéristiques du produit
- La géométrie compacte du cadre Aluminium A1 Premium du Langster convertit votre puissance en vitesse maîtrisée.
- Pédalier fixe avec plateau en aluminium 42dts.
- Potence de route en aluminium forgé 3D, diam. 31.8mm pour une meilleure précision de direction.
- La fourche en fibre de carbone procure un amortissement rigide des vibrations.
- La fourche en fibre de carbone procure un amortissement rigide des vibrations.
- La géométrie compacte du cadre Aluminium A1 Premium du Langster convertit votre puissance en vitesse maîtrisée.
Spécifications techniques
FRAMESET
FRAME
Specialized A1 Premium Aluminum, fully manipulated tubing, compact design, integrated headset
FORK
Specialized FACT carbon, carbon fiber legs, aluminum crown and steerer
HEADSET
Specialized Mindset, 1-1/8"" integrated threadless, steel cage bearings, 20mm alloy cone w/ 10mm alloy spacer
SEAT BINDER
Specialized alloy 31.8mm
WHEELS
FRONT TIRE
Specialized Mondo Sport, 700x23c, wire bead, 60TPI, Flak Jacket
REAR TIRE
Specialized Mondo Sport, 700x23c, wire bead, 60TPI, Flak Jacket
INNER TUBES
Specialized standard presta tube
RIMS
Alex Race 32, sleeve joint, CNC sidewall 32h
FRONT HUB
Track, bolt-on w/ track axle nuts, 32h
REAR HUB
Track bolt-on w/ track axle nuts, 32h
SPOKES
Stainless 14g
DRIVETRAIN
CASSETTE
Shimano Freewheel, 16t
CHAIN
KMC Z-510HX 1 Speed
CRANKSET
Sugino Zen Messenger
CHAINRINGS
42t
BOTTOM BRACKET
Sealed cartridge, square taper, 68mm x 103mm
COCKPIT
STEM
Specialized Sport, 3D forged alloy, 6 degree rise, 31.8mm clamp
HANDLEBARS
Specialized A1 Premium Aluminum flat bar, 400mm width, 31.8mm
TAPE
Body Geometry cork ribbon
SADDLE
Specialized Comp Road, full padding
SEATPOST
Specialized carbon wrapped, two-bolt clamp, 27.2mm
BRAKES
FRONT BRAKE
Ultralight dual pivot brakes, Teflon pivots, forged alloy w/ cartridge pads
REAR BRAKE
Ultralight dual pivot brakes, Teflon pivots, forged alloy w/ cartridge pads
BRAKE LEVERS
Avid FR-5, alloy, two-finger, linear pull
ACCESSORIES
PEDALS
Silver cage, black body, w/ toe clip and strap
* Poids basés sur les cadres peints en production comme illustré. Les poids réels varieront en fonction de la couleur, de la taille du cadre et de la variation des composants. Les spécifications sont sujettes à modification sans préavis.
Géométries
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Ground-Top | 71.5mm | 71.5mm | 69mm | 69mm | 67.5mm | 67.5mm |
| Angle tube de selle | 60° | 65° | 60° | 59° | 56° | 59° |
| Hauteur de douille de direction | 170mm | 170mm | 170mm | 170mm | 172.5mm | 172.5mm |
| Angle de direction | 580° | 580° | 587° | 595° | 610° | 617° |
| Longueur bases | 45mm | 45mm | 45mm | 43mm | 43mm | 43mm |
| Longueur tube horizontal | 74mm | 75.5mm | 73.5mm | 73.25mm | 72.5mm | 73mm |
| Boîte de pédalier – axe roue avant | 110mm | 130mm | 155mm | 180mm | 205mm | 230mm |
| Largeur de cintre | 300mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| Hauteur cadre à l’entrejambe | 80mm | 90mm | 100mm | 100mm | 110mm | 120mm |
| Longueur tube de selle - centre boîte de pédalier à sommet | 405mm | 405mm | 405mm | 405mm | 407mm | 410mm |
| Déport de fourche | 974mm | 975mm | 982mm | 991mm | 1008mm | 1018mm |
| B-B Drop | 71.75mm | 72.5mm | 72.5mm | 73mm | 73.5mm | 73mm |
| Stack | 430mm | 480mm | 500mm | 520mm | 540mm | 580mm |
| Reach | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Chasse | 708mm | 742mm | 764mm | 786mm | 808mm | 839mm |
| Empattement | 400mm | 400mm | 400mm | 400mm | 420mm | 420mm |
