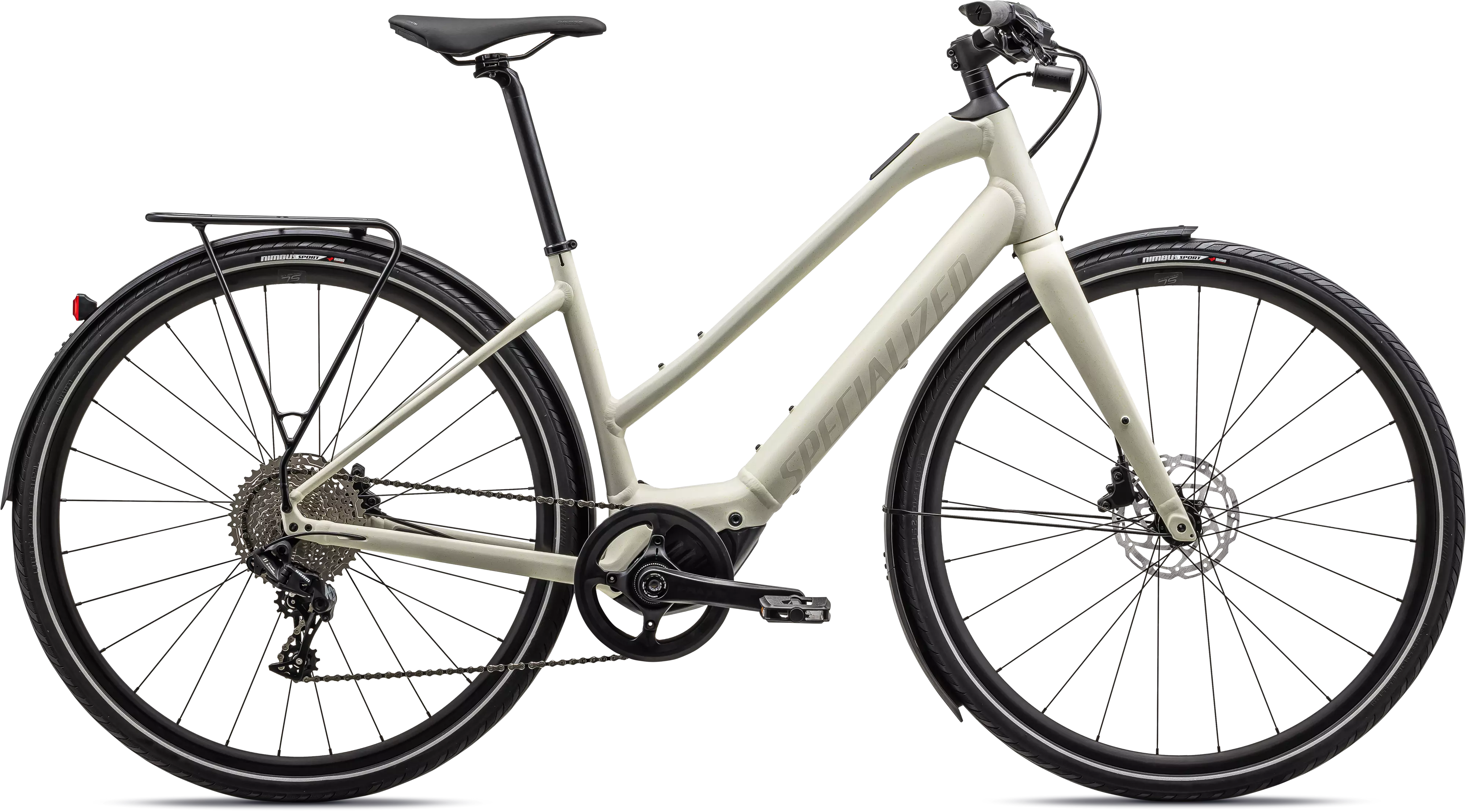

Turbo Vado SL 4.0 Step-Through EQ

3

1 Reviews

Meet the Vado SL. This super-light e-bike was designed to take on anything from daily…

Product Details

Add Icon

Meet the Vado SL. This super-light e-bike was designed to take on anything from daily commutes through urban landscapes to clocking even faster workouts. Need to carry your bike? No sweat. Weighing 40% less than the full-power Vado, there’s no other electric bike out there with ride quality, range, and power like this. All you need to do is get on and go.

The Vado SL comes equipped with everything you need to start riding right away. First, the extra-bright, built-in lights give you higher visibility in low-light areas. Next, the MasterMind Turbo Control Unit (TCU) makes it easy to view ride info on the go. The Nimbus tires roll fast on or off the pavement with plenty of grip, and the Vado SL's featherweight status also makes it perfect for city commuting and offers far more than ride quality — it means you can hang it on a wall or car rack. And it makes public transportation a breeze.

So whether you're going fast or far or both, the Vado SL provides the confidence to do it all at a fraction of the weight.

LIGHT WEIGHT: You’ll be blown away by how easy it is to lift your bike on to a rack, carry it up stairs, or ride nimbly around town, thanks to the category-leading light-weight of the Turbo SL technology, optimised frame materials, design, and specification.

COMFORTABLE AND CONFIDENT: Body position and handling are optimized to deliver unsurpassed riding comfort, confidence, and control. Powerful hydraulic disc brakes reign in your speed, while larger tires provide maximum traction for turning and stopping.

TURBO SL: The heart of the Vado is its Turbo SL technology, the advanced and integrated electric bike system that delivers an unequaled combination of light-weight, natural feel, anti-theft functions, training tips, a full-function bike computer, ride anywhere range, and more.

The speed limit at which the motor will stop supporting may vary significantly by region and is based on local requirements. It may also affect range: a higher speed limit may result in less range.

  • Long-Range - Fully integrated Specialized 320Wh downtube battery w/optional Range Extender compatibility for up to 80 miles (130 km) or 6 hours (eco mode) or up to 120 miles (200 km) or 9 hours w/ range extender (eco mode).

  • Specialized SL 1.1 custom lightweight motor, peak 240W / 35Nm, 2x you rider amplification (180% assistance), assist up to 28mph.

  • Turbo SL mounted rear rack, Racktime-compatible for your favorite bags and panniers, and DRYTECH fenders to keep the spray away.

  • Premium lightweight E5 Aluminum frame.

  • Clean internal cable routing, fender/rack mounts, and reflective graphics.

  • Step-through frame for easier on/off and managing commuter traffic.

  • Premium hydraulic disc brakes for maximum stopping power.

  • Bright, integrated front and rear lighting to see and be seen.

  • 11-speed Sram NX shifting for reliable performance for the long haul.

  • Durable, lightweight alloy wheels paired with fast-rolling, high-grip, Nimbus II Sport Reflect 700 tires with BlackBelt flat protection and reflective accents to increase visibility.

Technical Specifications

Add Icon

E-Bike

Motor

Specialized SL 1.1, custom lightweight motor

Battery

Specialized SL1-320, fully integrated, 320Wh

UI/Remote

Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote

Charger

Custom charger, 48V System w/ SL system charger plug

Wiring Harness

Custom Specialized wiring harness w/ chargeport

Frameset

Frame

E5 Aluminum, bottom bracket motor mount, fully integrated downtube battery, internal cable routing, fender and front rack mounts, Smooth Welds

Seat Binder

Specialized Alloy, 30.8mm

Suspension

Fork

Rigid full aluminum disc, Boost™ 12x110mm, front- rack-compatible

Brakes

Front Brake

Tektro HD-R290, hydraulic disc, 160mm

Rear Brake

Tektro HD-R290, hydraulic disc, 160mm

Drivetrain

Shift Levers

SRAM NX, 11-speed

Rear Derailleur

SRAM NX, 11-speed

Cassette

SUNRACE, CSMS7, 11-42t, 11-speed

Chain

KMC e11S, 11-speed w/ Missing Link™

Crankset

Praxis, Forged alloy M30, custom offset

Chainrings

Praxis, 44T, 110BCD

Wheels & Tires

Rims

700C disc, 22mm rim depth, 21mm internal width

Front Hub

Specialized alloy front hub disc, sealed cartridge bearings, 12x110mm, Center Lock™, 24h

Rear Hub

Specialized alloy rear hub disc, Center Lock™, sealed cartridge bearings, 12x148mm, 28h

Spokes

DT Swiss Industry

Front Tire

Nimbus II Sport Reflect, 700x38mm

Rear Tire

Nimbus II Sport Reflect, 700x38mm

Inner Tubes

Standard 40mm PV 700x32-50

Cockpit

Stem

Specialized Stealth Stem, alloy, 14 deg, 31.8mm, integrated TCD mount

Handlebars

Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm

Grips

Body Geometry Women's Contour

Saddle

Bridge Sport, hollow cr-mo rails, 155mm

SeatPost

Specialized, alloy, dual-bolt, 25mm offset, 27.2mm

Accessories

Pedals

Specialized Commuter w/ grip tape & reflectors

Headlight

Lezyne Ebike Hecto STVZO E65, 210Lumens, 12V

Taillight

Lezyne Ebike Rear Fender STVZO, 11Lumens, 12V

Rack

Turbo SL Rack, Closed Platform, direct fender mount, Racktime-compatible, 15kg

Fenders

Specialized DryTech, Aluminum

Kickstand

Specialized kickstand, 40mm mount

Bell

Simple bell

Weight

Weight

16.6kg (36 lb, 9.5 oz)

Weight Size

MD

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
SMLXL
Crank Length170mm172.5mm172.5mm175mm
Handlebar Width680mm680mm680mm680mm
Stem Length60mm75mm75mm90mm
Saddle Width155mm155mm155mm155mm
Seatpost Length350mm350mm350mm350mm
B-B Height291mm291mm291mm291mm
Trail71mm67mm64mm61mm
Head-Tube Angle70°70.5°71°71.5°
Chain-Stay Length445mm445mm445mm445mm
Bike Stand-Over Height616mm631mm655mm688mm
Head-Tube Length130mm161.5mm194.5mm230mm
Reach397mm419mm433mm442mm
Fork Length (full)390mm390mm390mm390mm
Seat-Tube Angle73.5°73.5°73.5°73.5°
Stack542mm574mm607mm643mm
Front-Center626mm655mm675mm690mm
Wheelbase1062mm1091mm1110mm1126mm
Top-Tube Length (horizontal)558mm587mm610mm630mm
B-B Drop70mm70mm70mm70mm
Fork Rake/Offset50mm50mm50mm50mm
Seat-Tube Length405mm431.5mm469.5mm510mm
Geometry

Rider Reviews

3

1 Reviews



disappointing flaw - chain space too small

After initial good ride, chain keeps falling off and unable to reposition manually as insufficient space between the frame and pedal.
