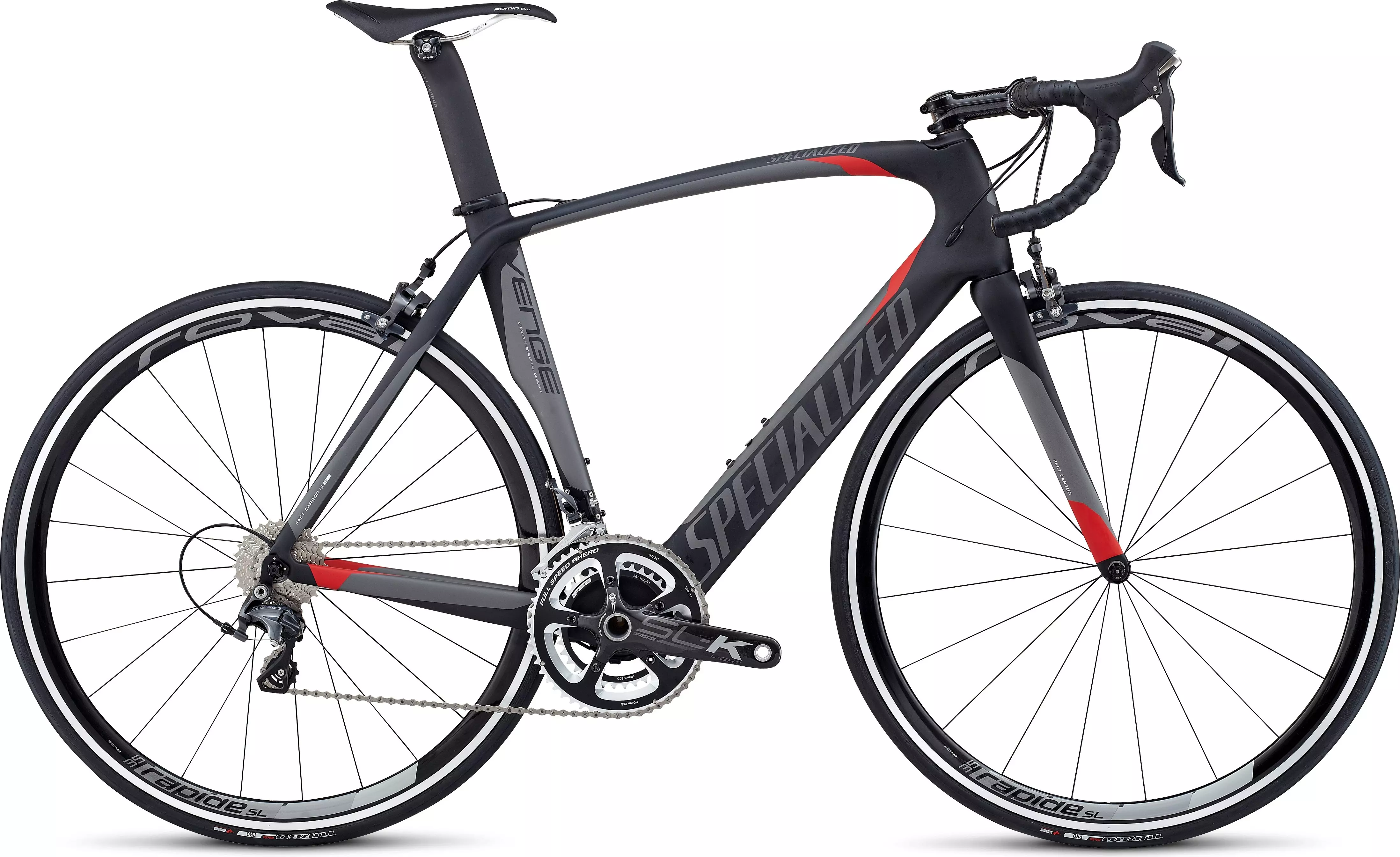

2014 Venge Expert Ultegra
0 Reviews
The Venge is fast. Plain and simple. Behind it sits a myriad of science, testing,…
Product Details
The Venge is fast. Plain and simple. Behind it sits a myriad of science, testing, aerodynamic tweaking and design. What does all this mean for you? A bike that's faster in the flats, faster over rollers, and faster in sprints. The Venge will save you 22 watts over 40kp/hr compared to a Tarmac. Couple that with FACT carbon that's nearly as light as it is stiff and the only excuse you have for going slower are those things you're standing on.
UCI-legal, FACT 10r carbon frameset with one-piece carbon OSBB/chainstay, internal cable routing, and tapered headtube, full carbon monocoque fork with 3:1 airfoil shaping and straight profile for best combination of aerodynamics and stiffness
UCI-legal, FACT 10r carbon frameset with one-piece carbon OSBB/chainstay, internal cable routing, and tapered headtube, full carbon monocoque fork with 3:1 airfoil shaping and straight profile for best combination of aerodynamics and stiffness
FSA SL-K Light carbon BB30 crank is stiff and light for excellent power transfer
FSA SL-K Light carbon BB30 crank is stiff and light for excellent power transfer
UCI-legal, FACT 10r carbon frameset with one-piece carbon OSBB/chainstay, internal cable routing, and tapered headtube, full carbon monocoque fork with 3:1 airfoil shaping and straight profile for best combination of aerodynamics and stiffness
Specialized Turbo Pro 23c tyres deliver an incredible package of light weight, low rolling resistance and superior traction, all with BlackBelt protection
Technical Specifications
FRAMESET
FRAME
Specialized FACT 10r carbon, FACT construction, aero-shaped tubing, compact race design, tapered 1-1/8"" to 1-3/8"" headtube, internal cable routing, carbon OSBB
FORK
Specialized Venge FACT carbon full monocoque, OS race for 1-3/8"" bearing
HEADSET
1-1/8"" upper and 1-3/8"" lower, stainless steel cartridge bearings, w/ custom Venge top cap
SEAT BINDER
Venge integrated seat clamp assembly
WHEELS
FRONT WHEEL
Roval Rapide SL 35
REAR WHEEL
Roval Rapide SL 35
FRONT TIRE
Specialized Turbo Pro, 127TPI, foldable aramid bead, BlackBelt protection, 700x23c
REAR TIRE
Specialized Turbo Pro, 127TPI, foldable aramid bead, BlackBelt protection, 700x23c
INNER TUBES
Lightweight, 80mm presta valve
DRIVETRAIN
SHIFT LEVERS
Shimano Ultegra STI, 11-speed
FRONT DERAILLEUR
Shimano Ultegra, braze-on, 11-speed
REAR DERAILLEUR
Shimano Ultegra, 11-speed
CASSETTE
Shimano Ultegra, 11-speed, 11-28
CRANKSET
FSA SL-K Light, carbon, BB30
CHAINRINGS
52/36
BOTTOM BRACKET
OS integrated, sealed bearings
CHAIN
Shimano Ultegra, 11-speed
COCKPIT
HANDLEBARS
Specialized Tarmac Expert, alloy, 140mm drop, 85mm reach
STEM
Specialized Expert Pro-Set, 3D forged aluminum, 4-position adjustable, 4-bolt, 31.8mm
TAPE
Specialized Classic Wrap
SADDLE
Body Geometry Romin Evo Expert, hollow Ti rails, 143mm
SEATPOST
Specialized Venge Aero, FACT carbon, flippable 20/0mm offset
BRAKES
FRONT BRAKE
Shimano Ultegra
REAR BRAKE
Shimano Ultegra
BRAKE LEVERS
Shimano Ultegra
ACCESSORIES
PEDALS
Nylon flat test ride, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49.0 | 52.0 | 54.0 | 56.0 | 58.0 | 61.0 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 100mm | 120mm | 140mm | 160mm | 190mm | 210mm |
| Seat-Post Length | 300mm | 300mm | 300mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
| Chain-Stay Length | 405mm | 405mm | 405mm | 405mm | 407mm | 410mm |
| Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Front-Centre | 576mm | 576mm | 583mm | 590mm | 605mm | 612mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 741mm | 766mm | 789mm | 809mm | 834mm | 860mm |
| Seat-Tube Length, B-B Centre to Top | 467mm | 487mm | 507mm | 527mm | 547mm | 577mm |
| Fork Rake | 45mm | 45mm | 45mm | 43mm | 43mm | 43mm |
| B-B Drop | 71.5mm | 71.5mm | 69mm | 69mm | 67.5mm | 67.5mm |
| Stack | 506mm | 528mm | 544mm | 566mm | 593mm | 614mm |
| Reach | 385mm | 385mm | 386mm | 395mm | 401mm | 407mm |
| Trail | 62mm | 57mm | 57mm | 56mm | 56mm | 53mm |
| Wheelbase | 970mm | 970mm | 978mm | 986mm | 1003mm | 1013mm |
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 110mm |
