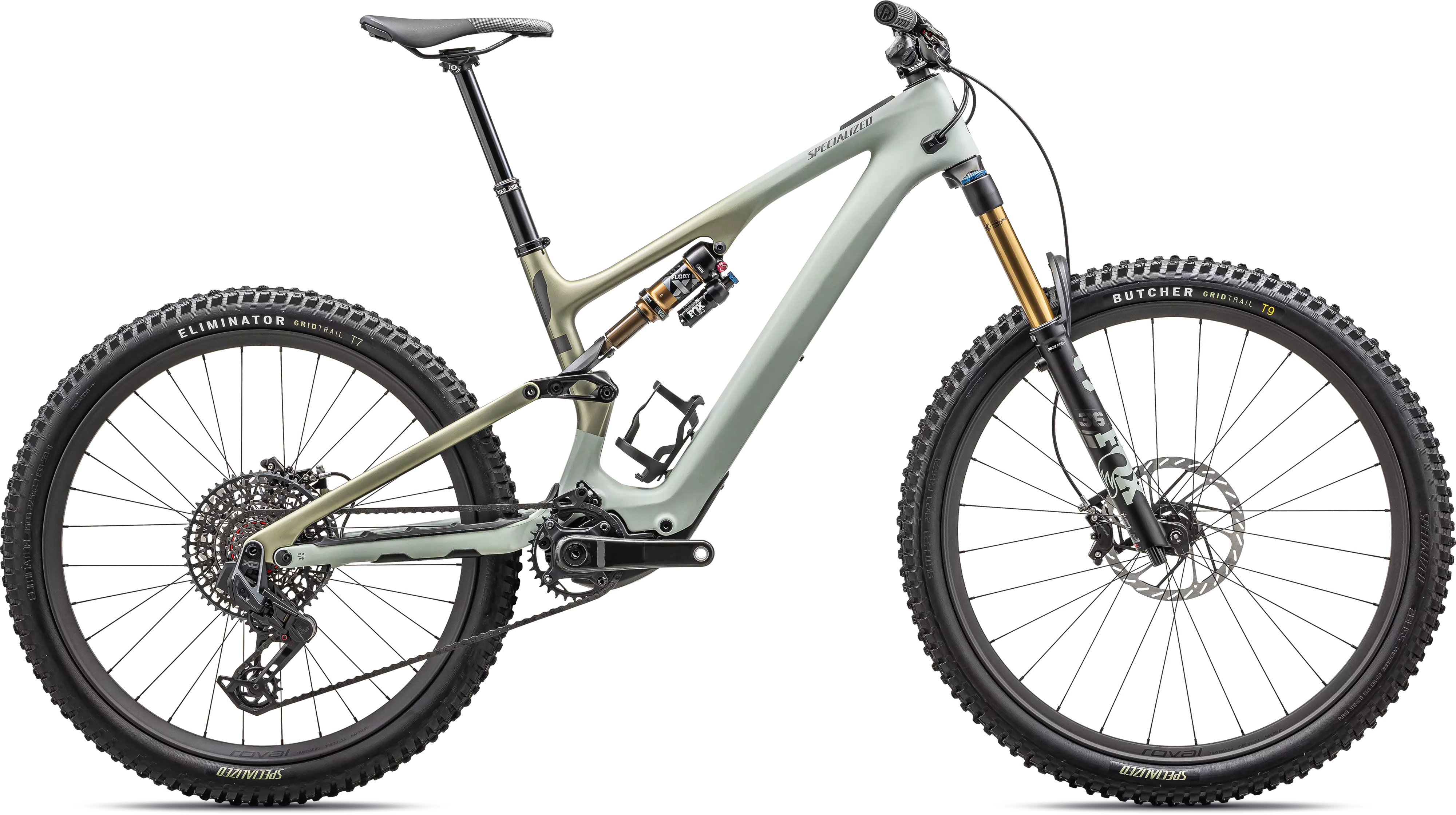

Turbo Levo SL Pro Carbon

5

1 Reviews

The Levo SL delivers unmatched ride quality and capability, amplified. For the trail…

Delivery Icon

We deliver! Just say when and how.

Specialized Levo SL: All About the Frame, Geometry, & Suspension

Product Details

Add Icon

The Levo SL delivers unmatched ride quality and capability, amplified. For the trail rider who craves serpentine singletrack, sending it skyward, and lives for advancing your skills and fitness. Meet your new bike, the Levo SL. You’ll be blown away by it’s unmatched combination of flawless handling, capability, and “2 X You” amplification that gives you the Power to Ride More Trails. Compare it to anything out there, with a motor or without, and we know you’ll agree — Levo SL is THE ULTIMATE TRAIL BIKE.

IT’S ALL ABOUT THE RIDE — When everything works just right a bike disappears when you ride it. We stripped away the mass to keep the Levo SL lean and responsive. It’s tough enough to withstand heavy abuse, but light enough to nail big moves. Its dialed geometry, kinematics, and shock tuning leave nothing desired.

THE FRAME OF REFERENCE — Everything starts here. Lively, precise ride feel. Strategic carbon fiber layup provides super-responsive chassis stiffness. We tuned the entire chassis—front end, rear end, and the link that unifies them—as a single unit to minimize lateral flex under pedaling to harness every bit of pedal force.

GEOMETRY OF CONTROL — The cockpit centers you in the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle, and reduced fork offset keep things stable in the rough while giving you the freedom to destroy the turns. The head angle can be personalized to, 63, 64.25, and 65.5 degrees.

LESS IS MORE – The Levo SL is greyhound lean and telepathically responsive. Its curated component selection is light, yet capable—for true trail riding. Put it all together and you get the benefits of amplification along with benchmark handling.

MIXED WHEEL — A 29” front wheel ensures stability and surefooted performance in the most hectic terrain, while a 27.5” rear wheel allows for a compact chainstay and super responsive behavior. If you prefer the rolling and traction benefits of a 29” rear wheel, just flip the pivot link chip and mount the big wheel.

TURBO OPERATING SYSTEM — Our seamlessly-integrated operating system delivers unmatched performance across torque, range, ride feel, ride quality, power, reliability, and rider experience. It’s the invisible hand that enables you to do more, know more, go farther, feel stronger, and have more fun.

SPECIALIZED SL 1.2 MOTOR — The all new Specialized SL 1.2 motor is whisper quiet, boasts unmatched smoothness, delivers 43% more torque (50Nm), and 33% more power (320 Watts) than its predecessor. Resulting in “2x You” performance

  • All new carbon frame, comes in mixed wheel configuration (compatible to 29 rear with no extra parts needed.) New kinematic with flatter leverage curve which provides more support and playfulness off the top, but plenty of control in rougher conditions. The headtube angle and bottom bracket height are both adjustable.

  • New SRAM X0 Transmission

  • New SRAM Code Silver Stealth Stealth brakes

Technical Specifications

Add Icon

E-Bike

Motor

Specialized 1.2 SL Custom Rx Trail Tuned Motor

Battery

Specialized SL1-320, fully integrated, 320Wh

UI/Remote

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote

Wiring Harness

Custom Specialized wiring harness

Charger

Custom charger, 48V System w/ SL system charger plug

Frameset

Frame

All new Levo SL Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.

Seat Binder

Alloy, 38.6mm

Suspension

Rear Shock

S1: Fox Float Factory, 210x50mm, S2-S6: Fox Float X Factory, 210.55mm

Fork

Fox 36 Factory series, 29", S1: 150mm, S2-6:160mm

Brakes

Front Brake

SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

Rear Brake

SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

Drivetrain

Shift Levers

SRAM Pod ultimate shifter

Rear Derailleur

SRAM X0 Eagle Transmission

Cassette

SRAM XS 1295, 12 speed, 10-52

Chain

SRAM X0 Chain

Crankset

SRAM Dub carbon cranks, 165/170/175mm

Chainrings

SRAM T-type ring, 32t

Wheels & Tires

Rims

Roval Traverse Carbon 29, hookless carbon, 30mm inner width, hand-built, 2Bliss Ready

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"

Inner Tubes

Presta, Standard Valve

Cockpit

Stem

Deity, 35.0mm

Handlebars

Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm

Grips

Diety Lockjaw grips

Saddle

Specialized Bridge Expert Mimic saddle

SeatPost

Bike Yoke Revive dropper post, S1: 125mm, S2/S3: 160mm, S4/S5: 185mm, S6: 213mm

Accessories

SWAT

SWAT CC tool inside steerer

Weight

Weight

17.74kg (39 lb, 1.8 oz)

Weight Size

S4

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
S1S2S3S4S5S6
Crank Length165mm165mm170mm170mm170mm175mm
Handlebar Width780mm780mm780mm780mm780mm780mm
Stem Length35mm35mm35mm35mm50mm50mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length125 mm160 mm160 mm185 mm185 mm213mm
Stack609mm617mm626mm635mm645mm654mm
Reach405mm425mm445mm470mm495mm525mm
Head-Tube Length95mm100mm110mm120mm130mm140mm
Head-Tube Angle64.6°64.6°64.6°64.6°64.6°64.6°
B-B Height343mm348mm348mm348mm348mm348mm
B-B Drop-34mm-29mm-29mm-29mm-29mm-29mm
Trail132mm132mm132mm132mm132mm132mm
Fork Length, Full560mm570mm570mm570mm570mm570mm
Fork Rake/Offset42mm42mm42mm42mm42mm42mm
Front-Centre726mm752mm776mm806mm835mm869mm
Chain-Stay Length433mm432mm432mm432mm432mm432mm
Wheelbase1158mm1184mm1208mm1238mm1267mm1301mm
Top Tube Length, Horizontal560mm582mm604mm631mm659mm691mm
Bike Stand-Over Height727mm763mm766mm767mm773mm778mm
Seat-Tube Length385mm385mm405mm425mm445mm465mm
Seat-Tube Angle75.8°75.8°75.8°75.8°75.8°75.8°
Geometry

Rider Reviews

5

1 Reviews



Incredible

A rare occasion when the marketing hype is real. The ultimate trail bike is an easy way to describe this bike. Descending performance is super- buttery smooth and supremely confident. Agile and stable at the same time. So much more fun than a 50-60lb behemoth of an ebike.
