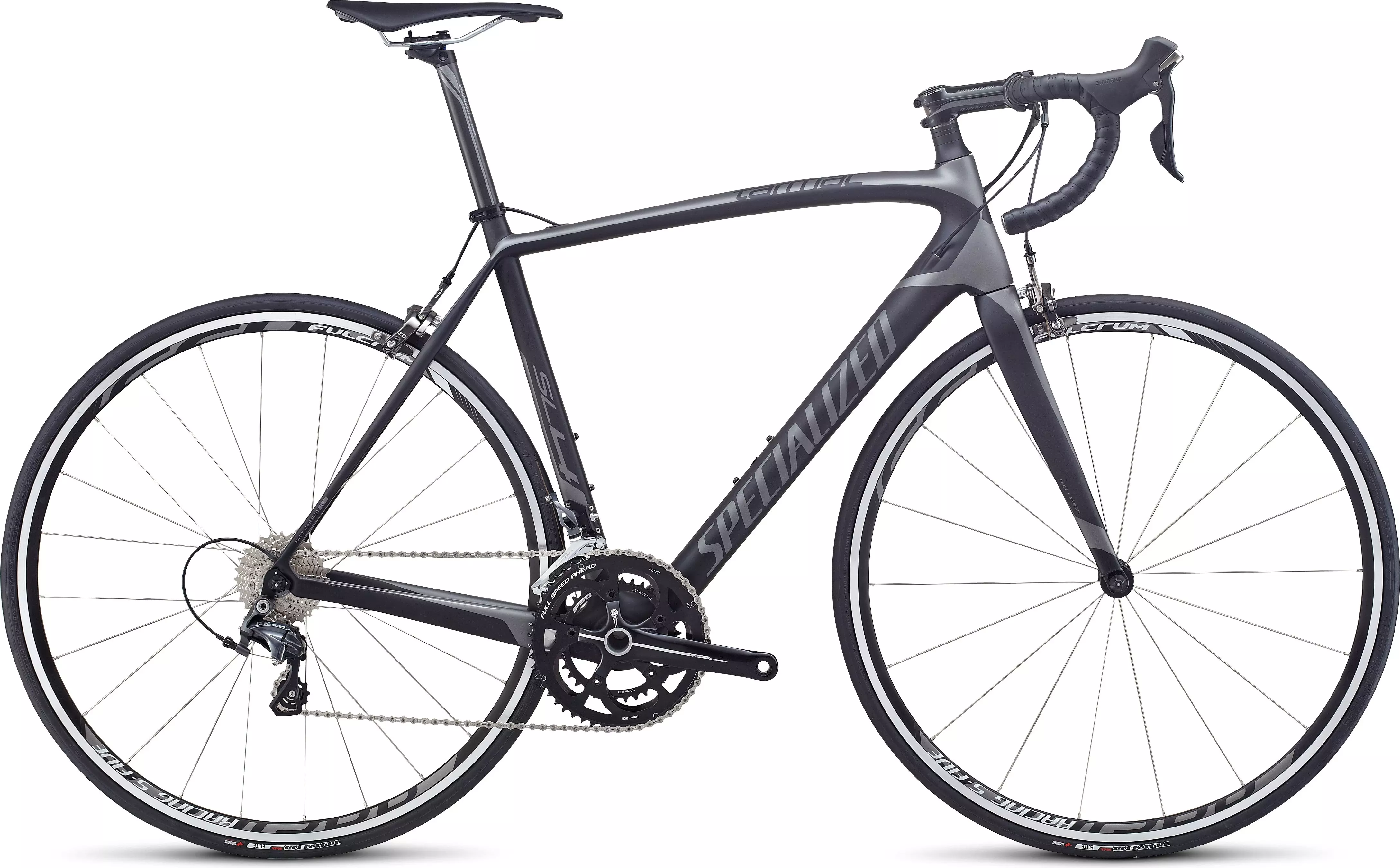

2014 Tarmac SL4 Comp Ultegra
0 Reviews
The Tarmac SL4 is a pure and unbridled race machine. It climbs effortlessly, descends…
Product Details
The Tarmac SL4 is a pure and unbridled race machine. It climbs effortlessly, descends confidently, and sprints ferociously. It's the lightest, stiffest frame we make and it shows as soon as you push on the pedals. Bottom line, you'll be faster on this bike. There's a reason it's the weapon of choice for the Saxo-Tinkoff, Astana and Omega Pharma-Quick-Step Pro Tour teams.
Specialized SL4 FACT 9r carbon frame with uniquely shaped, tapered headtube and OSBB: now even stiffer and lighter for pure, unbridled speed and power, paired with a tapered, full-monocoque FACT carbon fork for ultimate steering precision
Specialized Turbo Elite 23c tyres roll like a racing tyre, but offer incredible durability and puncture resistance through BlackBelt protection
Specialized SL4 FACT 9r carbon frame with uniquely shaped, tapered headtube and OSBB: now even stiffer and lighter for pure, unbridled speed and power, paired with a tapered, full-monocoque FACT carbon fork for ultimate steering precision
Specialized Turbo Elite 23c tyres roll like a racing tyre, but offer incredible durability and puncture resistance through BlackBelt protection
Technical Specifications
FRAMESET
FRAME
Specialized SL4 FACT 9r carbon, FACT construction, compact race design, 1-3/8"" lower bearing, OSBB
FORK
Specialized FACT carbon full monocoque, OS race for 1-3/8"" bearing
HEADSET
1-1/8"" upper and 1-3/8"" lower, Cr-Mo cartridge bearings integrated w/ headset, 20mm cone spacer, w/ 20mm of spacers
SEAT BINDER
Forged alloy, 32.6mm
WHEELS
FRONT WHEEL
Fulcrum S5
REAR WHEEL
Fulcrum S5
FRONT TIRE
Specialized Turbo Elite, 60TPI, foldable aramid bead, BlackBelt protection, 700x23c
REAR TIRE
Specialized Turbo Elite, 60TPI, foldable aramid bead, BlackBelt protection, 700x23c
INNER TUBES
Standard presta valve
DRIVETRAIN
SHIFT LEVERS
Shimano Ultegra STI, 11-speed
FRONT DERAILLEUR
Shimano Ultegra, braze-on, 11-speed
REAR DERAILLEUR
Shimano Ultegra, 11-speed
CASSETTE
Shimano Ultegra, 11-speed, 11-28
CRANKSET
FSA Gossamer Pro, BB30
CHAINRINGS
52/36
BOTTOM BRACKET
OS integrated, sealed bearings
CHAIN
KMC X11L
COCKPIT
HANDLEBARS
Specialized Tarmac Comp, alloy, 140mm drop, 85mm reach
STEM
Specialized Expert Pro-Set, 3D forged aluminum, 4-position adjustable, 4-bolt, 31.8mm
TAPE
Specialized Classic Wrap
SADDLE
Body Geometry Toupé Comp Gel, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized Comp, carbon, 27.2mm
BRAKES
FRONT BRAKE
AXIS 2.0
REAR BRAKE
AXIS 2.0
BRAKE LEVERS
Shimano Ultegra
ACCESSORIES
PEDALS
Nylon flat test ride, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 490.0 | 520.0 | 540.0 | 560.0 | 580.0 | 610.0 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 100mm | 120mm | 140mm | 160mm | 190mm | 210mm |
| Seat-Post Length | 300mm | 300mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
| Chain-Stay Length | 405mm | 405mm | 405mm | 405mm | 407mm | 410mm |
| Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Front-Centre | 576mm | 576mm | 583mm | 591mm | 605mm | 612mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 730mm | 755mm | 775mm | 795mm | 826mm | 850mm |
| Seat-Tube Length, B-B Centre to Top | 460mm | 490mm | 510mm | 530mm | 550mm | 580mm |
| Fork Rake | 45mm | 45mm | 45mm | 43mm | 43mm | 43mm |
| B-B Drop | 71.5mm | 71.5mm | 69mm | 69mm | 67.5mm | 67.5mm |
| Stack | 504mm | 526mm | 543mm | 564mm | 591mm | 612mm |
| Reach | 386mm | 386mm | 387mm | 395mm | 402mm | 408mm |
| Trail | 62mm | 57mm | 57mm | 56mm | 56mm | 53mm |
| Wheelbase | 970mm | 970mm | 978mm | 986mm | 1003mm | 1013mm |
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 110mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
