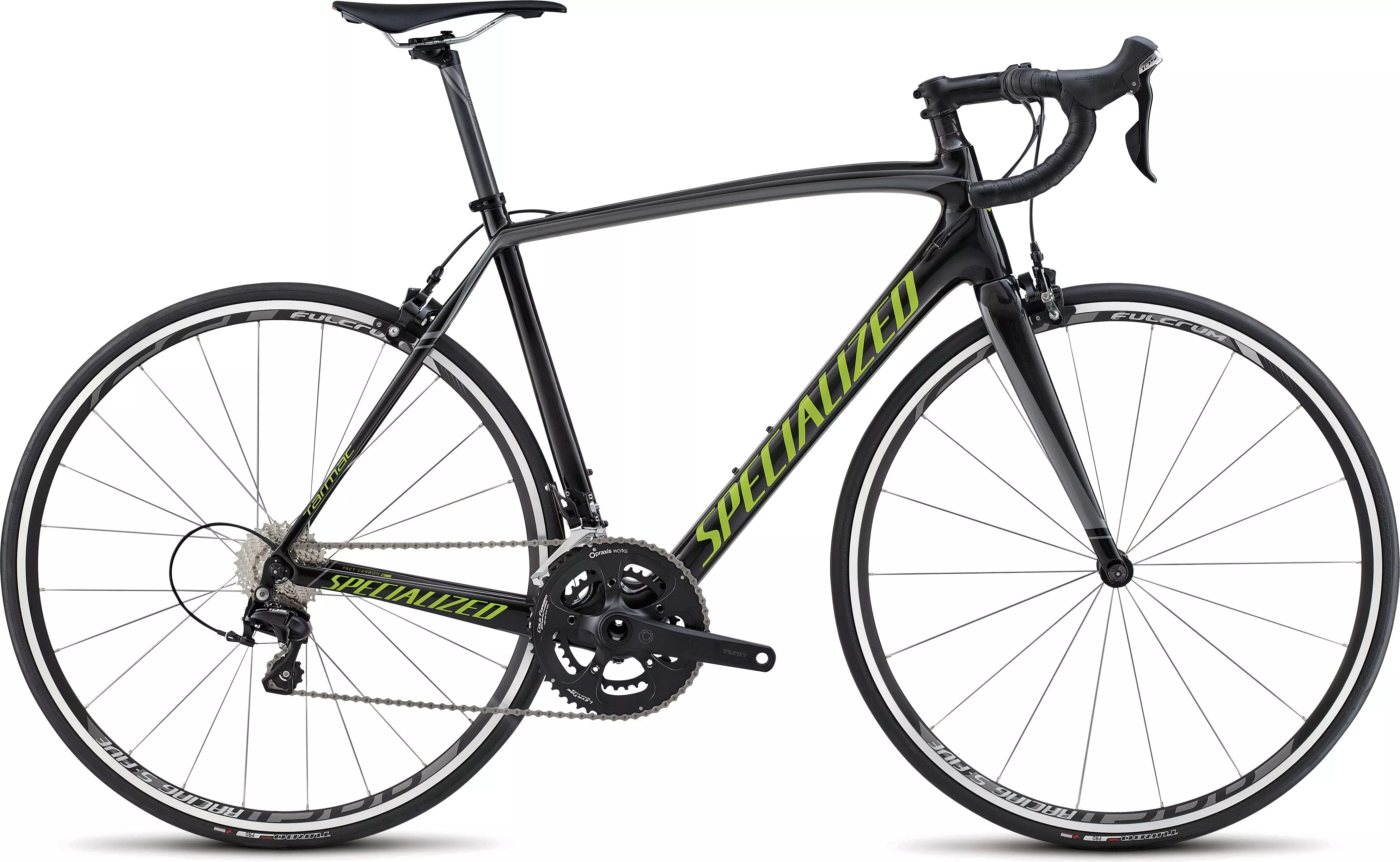

2015 Tarmac Elite 105
0 Reviews
The Tarmac Elite is a pure and unbridled race machine. It climbs effortlessly, descends…
Colour:
Gloss Carbon/Charcoal/Hyper Green
What's my size?
Select a Size
Product Details
The Tarmac Elite is a pure and unbridled race machine. It climbs effortlessly, descends confidently, and sprints ferociously. Bottom line, you'll be faster on this bike. With a Shimano 105 drivetrain it's the perfect combination of performance and exceptional value.
Turn Zayante compact crankset delivers excellent power transfer and consistent shifting
Shimano 105 brakes offer smooth and confident modulation
Shimano 105, 11-speed rear derailleur for crisp and dependable shifting
Body Geometry Toupé Comp Gel saddle w/ hollow Cr-Mo rails for comfort without compromise
FACT 9r carbon frame is ultra-stiff and lightweight for pure speed
Body Geometry Toupé Comp Gel saddle w/ hollow Cr-Mo rails for comfort without compromise
Fulcrum S5 wheelset is strong, reliable, and race-ready
FACT 9r carbon frame is ultra-stiff and lightweight for pure speed
Technical Specifications
FRAMESET
FRAME
Specialized FACT 9r carbon, FACT construction, compact race design, 1-3/8"" lower bearing, OSBB
FORK
Specialized FACT carbon, monocoque, OS race for 1-3/8"" bearing
HEADSET
1-1/8"" upper, 1-3/8"" lower, integrated Cr-Mo cartridge bearings, 20mm cone spacer, w/ 20mm spacers
SEAT BINDER
Alloy, 32.6mm
WHEELS
FRONT WHEEL
Fulcrum S5
REAR WHEEL
Fulcrum S5
FRONT TYRE
Turbo Pro, 700x23mm, 127TPI, folding bead, BlackBelt protection
REAR TYRE
Turbo Pro, 700x23mm, 127TPI, folding bead, BlackBelt protection
INNER TUBES
Standard, Presta valve
DRIVETRAIN
SHIFT LEVERS
Shimano 105 STI, 11-speed
FRONT DERAILLEUR
Shimano 105, braze-on
REAR DERAILLEUR
Shimano 105, 11-speed
CASSETTE
Shimano 105, 11-speed, 11-28t
CRANKSET
TURN Zayante by Praxis Works, BB30, 50/34T
CHAIN
Shimano 105, 11-speed
COCKPIT
HANDLEBARS
Specialized Comp, shallow drop, alloy, 125mm drop, 70mm reach
STEM
Specialized Comp Multi, 3D forged alloy, 4-bolt, 12-degree rise
TAPE
Specialized Classic, w/ gel
SADDLE
Body Geometry Toupé Comp Gel, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized Comp, FACT carbon, 27.2mm
BRAKES
FRONT BRAKE
Shimano 105
REAR BRAKE
Shimano 105
ACCESSORIES
PEDALS
Nylon, loose ball bearings, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 100mm | 120mm | 140mm | 160mm | 190mm | 210mm |
| Seat-Post Length | 300mm | 300mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
| Chain-Stay Length | 405mm | 405mm | 405mm | 405mm | 407mm | 410mm |
| Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Front-Centre | 576mm | 576mm | 583mm | 591mm | 605mm | 612mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 730mm | 755mm | 775mm | 795mm | 826mm | 850mm |
| Seat-Tube Length, B-B Centre to Top | 460mm | 490mm | 510mm | 530mm | 550mm | 580mm |
| Fork Rake | 45mm | 45mm | 45mm | 43mm | 43mm | 43mm |
| B-B Drop | 71.5mm | 71.5mm | 69mm | 69mm | 67.5mm | 67.5mm |
| Stack | 504mm | 526mm | 543mm | 564mm | 591mm | 612mm |
| Reach | 386mm | 386mm | 387mm | 395mm | 402mm | 408mm |
| Trail | 62mm | 57mm | 57mm | 56mm | 56mm | 53mm |
| Wheelbase | 970mm | 970mm | 978mm | 986mm | 1003mm | 1013mm |
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 110mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
