2012 Status Frame
5
1 Reviews
Build your own 200mm-travel downhill bike with the all-new Status frameset. It features…
Colour:
Gloss Black/Red
What's my size?
Select a Size
Product Details

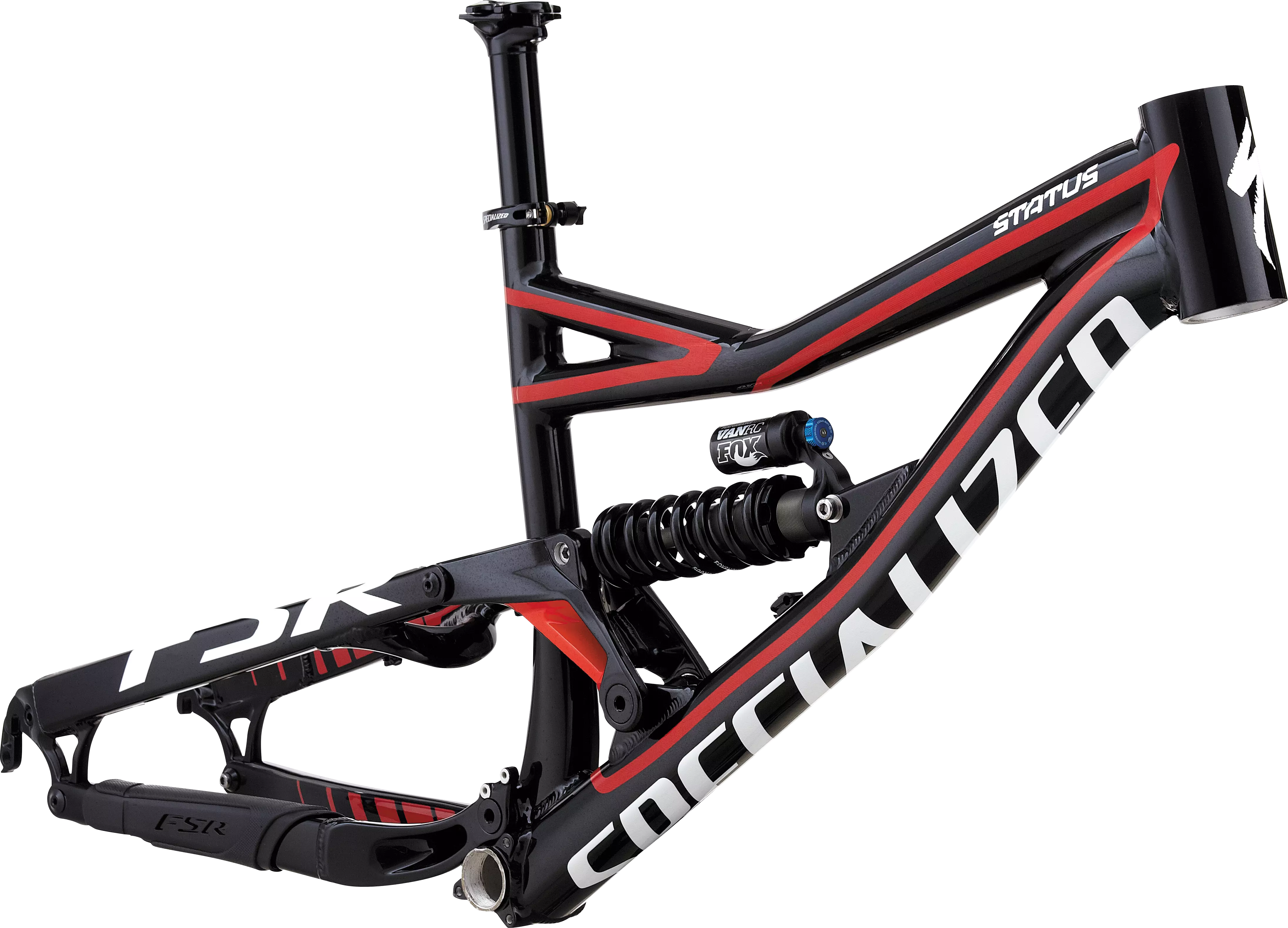

Build your own 200mm-travel downhill bike with the all-new Status frameset. It features a 135mm rear hub spacing, and FSR suspension, and a 1.5" head tube.
M4 alloy, 200mm-travel FSR frame with 1.5" head tube, full-cartridge bearing pivots and ISCG mounts makes the Status ready to handled the most technical descents
Coil-sprung Fox Van RC shock with compression and rebound adjust offers high-end performance in an affordable package
Technical Specifications
FRAMESET
FRAME
M4 hydroformed tubing, 1.5"" forged HT, ISCG mounts, 135mm rear spacing, full-cartridge bearing pivots, 200mm travel
SEAT BINDER
34.9mm clamp ID, alloy collar w/ QR, black
SUSPENSION
REAR SHOCK
Fox Van RC, coil w/piggy back, compression and rebound adj., 8.75x2.75"", S:450, M:500, L:550
COCKPIT
SEATPOST
6061 alloy, two bolt micro adjust, no offset, 30.9mm, 300mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | |
|---|---|---|---|
| Seat Tube Length, Centre to Top | 394mm | 419mm | 458mm |
| Top Tube Length, Actual | 531mm | 553mm | 574mm |
| Bottom Bracket Drop | -14.5mm | -14.5mm | -14.5mm |
| Bottom Bracket Height | 355mm | 355mm | 355mm |
| Seat Tube Angle, Actual | 71° | 71° | 71° |
| Seat Tube Angle, Effective | 75° | 75° | 75° |
| Wheel Base | 1164mm | 1189mm | 1214mm |
| Standover Height | 746mm | 743mm | 759mm |
| Stack | 646mm | 646mm | 646mm |
| Reach | 420mm | 425mm | 450mm |
| Head Tube Length | 120mm | 120mm | 120mm |
| Head Tube Angle | 64.5° | 64.5° | 64.5° |
| Front Centre | 739mm | 764mm | 789mm |
| Chainstay Length | 426mm | 426mm | 426mm |
| Top Tube Length, Horizontal | 558mm | 583mm | 608mm |
| Crank Length | 165mm | 165mm | 165mm |
| Handlebar Width | 750mm | 750mm | 750mm |
| Stem Length | 40mm | 40mm | 40mm |
| Seatpost Length | 300mm | 300mm | 300mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
