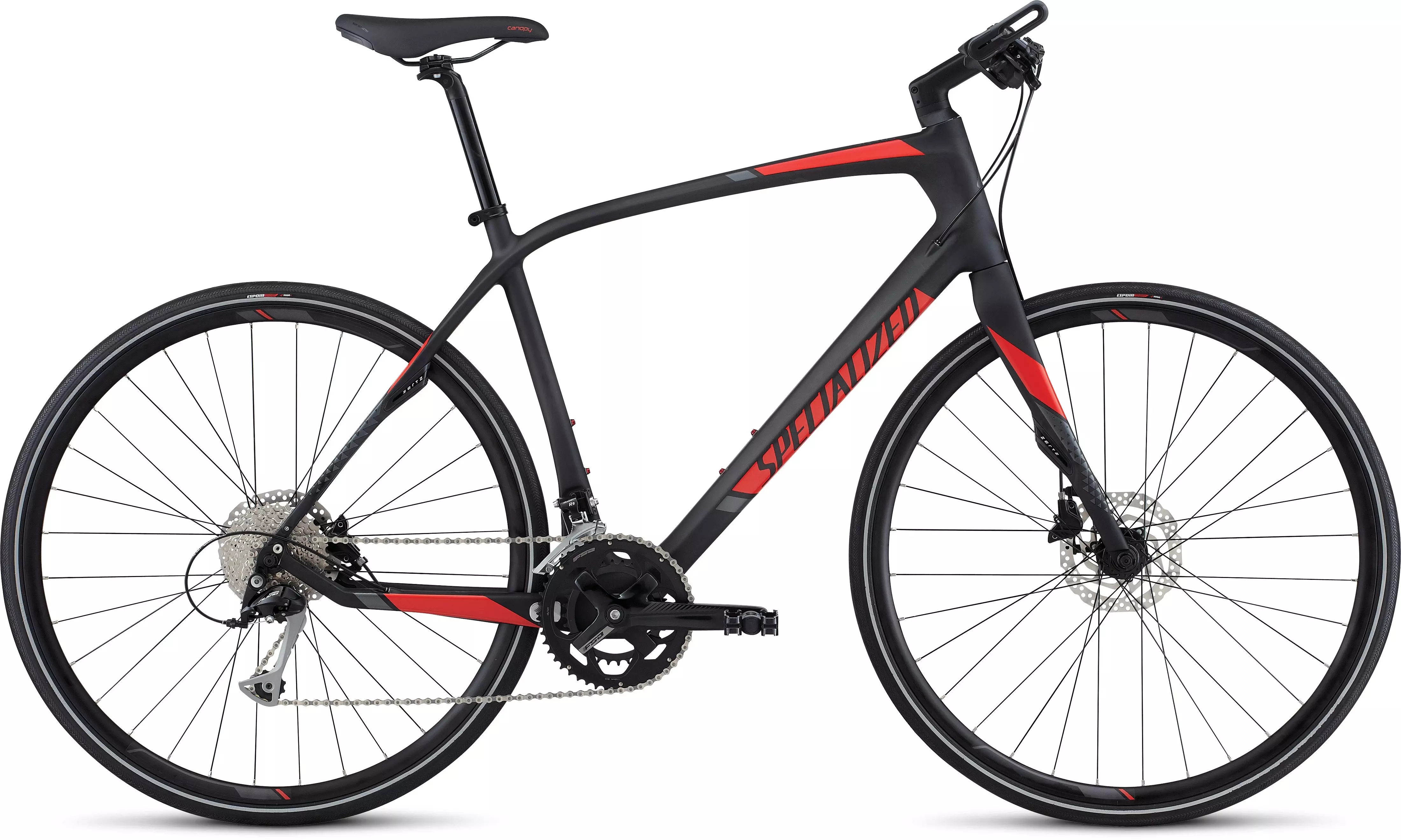

2017 Sirrus Sport Carbon
0 Reviews
Sure, getting in shape takes hard work and plenty of sweat, but that doesn't mean…
Product Details
Sure, getting in shape takes hard work and plenty of sweat, but that doesn't mean there's no room for fun, right? Our Sirrus Sport Carbon was designed to liven-up your fitness routine with a host of smart performance features that'll have you smiling as you sweat. That's why we gave it a high quality FACT 9r carbon construction that's lightweight and extremely responsive. Then there's the crisp and precise shifting that comes at the hands of a microSHIFT & Shimano mix of components, powerful hydraulic disc brakes, and all the comfort that follows our scientifically tested and engineered Body Geometry components. So as you push yourself to reach your goals, you'll feel more connected to your bike than ever, leaving you feeling that you have the perfect partner on your path to health and wellbeing.
The FACT 9r carbon fiber frame is engineered and designed with our Fitness Geometry, helping you ride more efficiently in a position that will see you riding comfortably, mile-after-mile.
Zertz inserts in the lightweight FACT carbon fiber fork absorb road vibration to make a smoother, more responsive ride, while the Plug + Play fender mounts give you the option to install rain-fighting fenders.
Shimano M315 hydraulic disc brakes will have you stopping at a moment's notice in any imaginable condition.
Technical Specifications
FRAMESET
FRAME
Specialized FACT 9r carbon, Fitness Geometry, Zertz, internal cable routing, tapered/integrated headset, post disc mount, Plug + Play fender mount
SUSPENSION
FORK
Specialized FACT carbon, full monocoque, Zertz, post mount disc, Plug + Play fender mounts
COCKPIT
HANDLEBARS
Specialized, double-butted alloy, 9-degree backsweep, 31.8mm
STEM
Specialized Flowset, integrated, 3D forged alloy, 4-bolt, 12-degree rise, 31.8mm clamp
TAPE
Specialized Body Geometry Targa, lock-on, integrated bar ends
SADDLE
Canopy Comp, hollow Cr-Mo rails, 155mm
SEATPOST
Alloy, 2-bolt, micro-adjust, 25mm offset, 27.2mm
SEAT BINDER
rack mount seat collar 31.6mm ID, stainless steel bolt, 7075 clamp body
WHEELS
RIMS
Disc, 6061 aluminium double-wall
FRONT HUB
Specialized Centre Lock, loose ball bearings, 32h, 9mm QR
REAR HUB
Shimano Centre Lock, disc, 10x135mm QR, 32h
SPOKES
Stainless, 14g w/self-locking threads
FRONT TYRE
Espoir Sport Reflect, 700x30mm, 60TPI, double BlackBelt protection
REAR TYRE
Espoir Sport Reflect, 700x30mm, 60TPI, double BlackBelt protection
INNER TUBES
700x28/38mm, 48mm Presta valve
DRIVETRAIN
SHIFT LEVERS
microSHIFT flatbar road, 9-speed
FRONT DERAILLEUR
microSHIFT R9, braze-on 9-speed, road double
REAR DERAILLEUR
Shimano Alivio, 9-speed
CASSETTE
Shimano, 9-speed, 11-34t
CRANKSET
FSA Vero, forged alloy, sub compact, 110mm BCD spider
CHAINRINGS
48/32T w/chainguard
BOTTOM BRACKET
BB-7420STw/Bolts w/RPM logo
CHAIN
SRAM PC-971 w/PowerLink
BRAKES
REAR BRAKE
Shimano M315 hydraulic disc, resin pads, 160mm rotor
FRONT BRAKE
Shimano M315 hydraulic disc, resin pads, 160mm rotor
ACCESSORIES
PEDALS
Specialized Fitness platform, alloy
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170mm | 172.5mm | 172.5mm | 175mm |
| Handlebar Width | 580mm | 600mm | 600mm | 620mm |
| Stem Length | 90mm | 90mm | 105mm | 105mm |
| Saddle Width | 155mm | 155mm | 155mm | 155mm |
| Seatpost Length | 300mm | 300mm | 350mm | 350mm |
| Seat-Tube Angle | 73.3° | 73.5° | 73° | 73° |
| Head-Tube Length | 150mm | 165mm | 190mm | 225mm |
| Head-Tube Angle | 71° | 71.5° | 72° | 72° |
| Chain-Stay Length | 435mm | 435mm | 435mm | 435mm |
| Front-Centre | 627mm | 635mm | 645mm | 666mm |
| B-B Drop | 70mm | 70mm | 70mm | 70mm |
| B-B Height | 275mm | 275mm | 275mm | 275mm |
| Bike Stand-Over Height | 752.2mm | 784.6mm | 821.9mm | 860.3mm |
| Fork Length (full) | 398mm | 398mm | 398mm | 398mm |
| Top-Tube Length (horizontal) | 568mm | 578mm | 598mm | 619mm |
| Seat-Tube Length | 440mm | 485mm | 530mm | 570mm |
| Stack | 574mm | 591mm | 616mm | 650mm |
| Reach | 395mm | 403mm | 410mm | 420mm |
| Trail | 65mm | 62mm | 58mm | 58mm |
| Fork Rake/Offset | 51mm | 51mm | 51mm | 51mm |
| Wheelbase | 1052mm | 1060mm | 1070mm | 1091mm |
