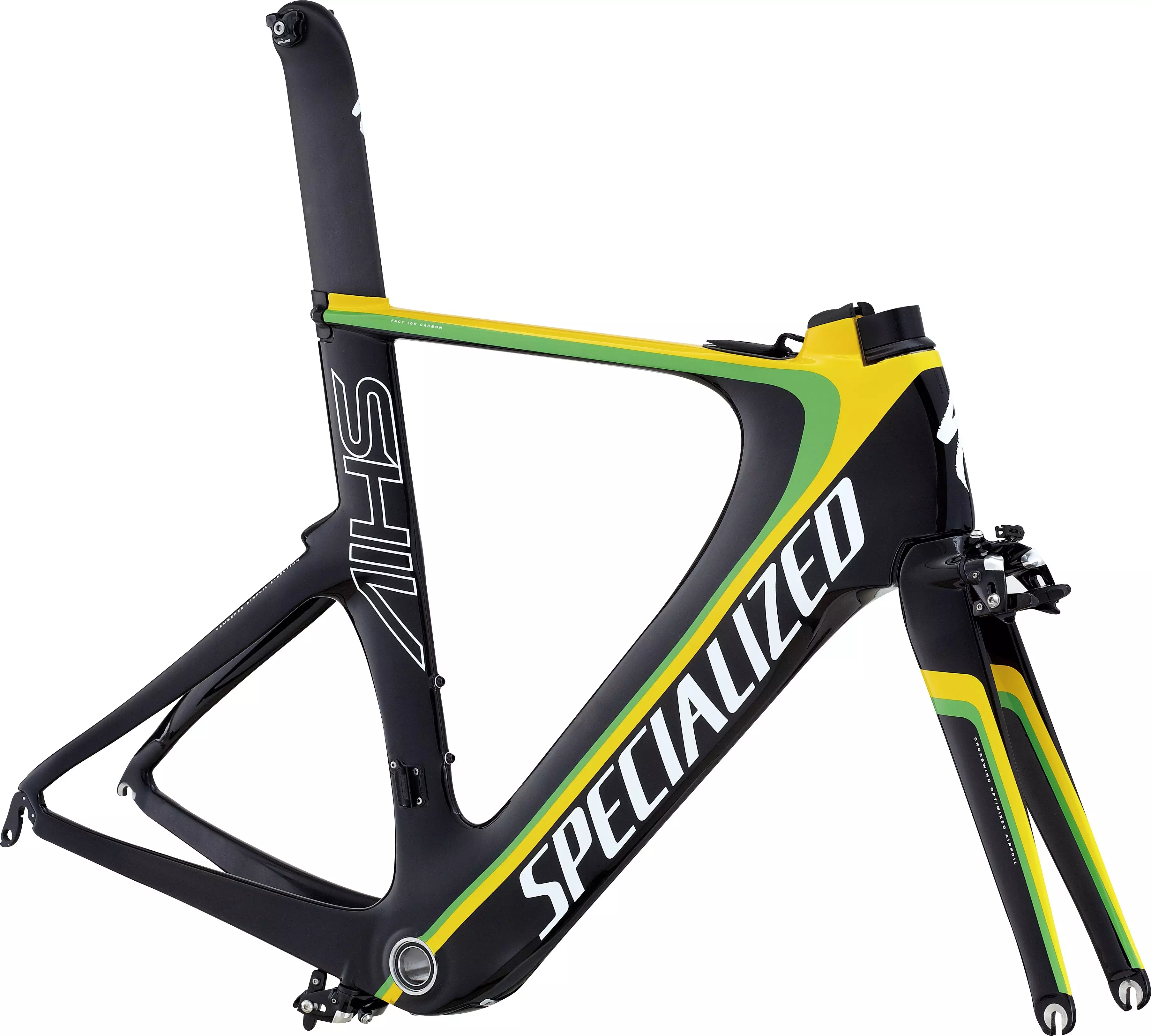

2014 Shiv Pro OSBB Frameset
0 Reviews
We ignored UCI rules and designed the Shiv Pro exclusively for triathlon: with unmatched…
Colour:
Gloss Carbon/Yellow/Green
What's my size?
Select a Size
Product Details
We ignored UCI rules and designed the Shiv Pro exclusively for triathlon: with unmatched aerodynamics, the Fuelselage integrated hydration system, and a huge range of fit adjustability. Equip the FACT 10r carbon frame with your favorite parts and feel the speed.
The Specialized FACT carbon monocoque fork with crosswind-optimised airfoils is stiff and stealthy for precision steering and maximum speed
Stiff, light, fully-adjustable Shiv FACT aero carbon seatpost provides speed with great fit, two setback options for optimal position
Integrated aerodynamic brakes minimise drag for aero excellence
Designed to fit inside the Shiv's frame, the Fuelselage is the ultimate integrated hydration system without any aerodynamic penalty
The ultimate frame for all triathlon distances, this Pro 10r carbon, FACT IS frame with OSBB is optimised for crosswinds and is the most race-ready aerodynamic frame anywhere
Technical Specifications
FRAMESET
FRAME
Specialized Shiv Pro 10r carbon, FACT IS construction, crosswind-optimized airfoils, 1-1/8"" lower bearing, OSBB, Control Tower Fit System, Fuelselage Integrated Hydration System
FORK
Specialized FACT Aero carbon, monocoque, carbon steerer and crown for 1-1/8"" bearing
SWAT
Integrated hydration, frame-mounted Fuelcell compatible
HEADSET
1-1/8"" upper and lower, stainless steel cartridge bearings
SEAT BINDER
Shiv seat clamp
DRIVETRAIN
BOTTOM BRACKET
OS integrated, sealed bearings
COCKPIT
SEATPOST
Shiv Aero FACT carbon, 12.5mm/37.5mm
BRAKES
FRONT BRAKE
Specialized Shiv Aero
REAR BRAKE
Specialized Shiv Aero
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Seat-Tube Angle | 77° | 77° | 77° | 77° | 77° |
| Head-Tube Length | 99mm | 115mm | 139mm | 163mm | 189mm |
| Seat Tube Length, BB Centre to Top | 505mm | 525mm | 551mm | 577mm | 603mm |
| Seat-Post Length | 350mm | 350mm | 350mm | 350mm | 350mm |
| Seat Post Setback | 12.5mm | 12.5mm | 12.5mm | 12.5mm | 12.5mm |
| Head-Tube Angle | 70.25° | 71.5° | 72° | 72.5° | 72.5° |
| Chain-Stay Length | 395mm | 395mm | 395mm | 395mm | 395mm |
| Frame Reach | 365mm | 385mm | 405mm | 425mm | 445mm |
| Front-Centre | 573mm | 589mm | 608mm | 631mm | 659mm |
| Frame Stack | 495mm | 515mm | 540mm | 565mm | 590mm |
| Top Tube Length | 481mm | 504mm | 530mm | 557mm | 582mm |
| Stand-Over Height | 752mm | 772mm | 797mm | 822mm | 847mm |
| Fork Rake | 50mm | 50mm | 45mm | 45mm | 45mm |
| B-B Drop | 72mm | 72mm | 72mm | 72mm | 72mm |
| Trail | 69mm | 61mm | 63mm | 60mm | 60mm |
| Wheelbase | 957mm | 973mm | 992mm | 1016mm | 1043mm |
| Crank Length | 167.5mm | 170mm | 172.5mm | 172.5mm | 175mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
