2015 Shiv Expert
0 Reviews
The Shiv Expert is the perfect triathlon weapon for setting a new PR thanks to…
Product Details

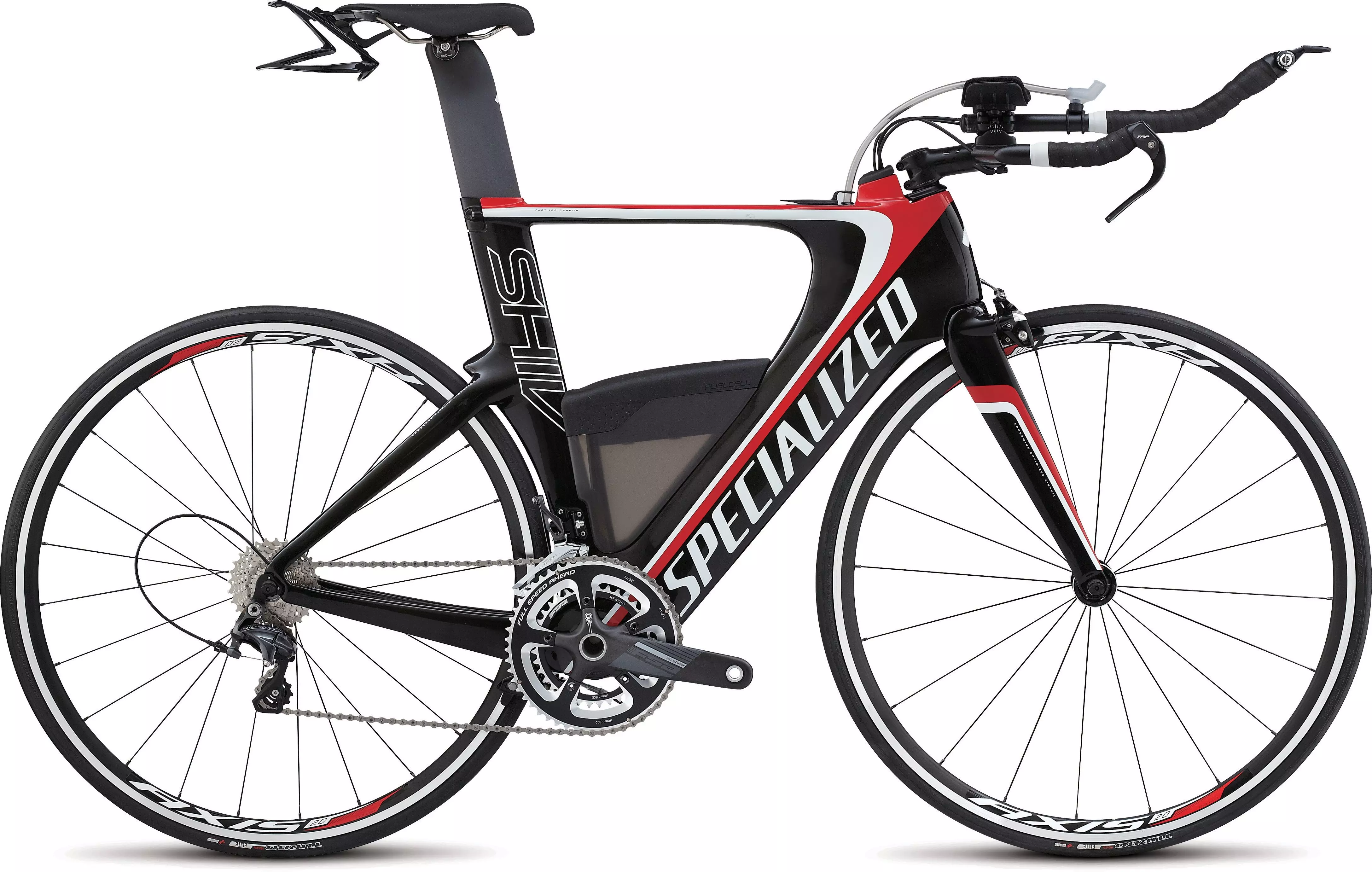

The Shiv Expert is the perfect triathlon weapon for setting a new PR thanks to equal parts stiffness and aero. Blending wind- cheating aerodynamics with lightweight and durable components like a Shimano Ultegra, 11-speed drivetrain, it's purpose built for tackling your next race.
AXIS 2.0 wheels are lightweight with strong, reliable rims
Body Geometry Sitero Expert saddle w/ hollow Ti rails for comfort in aero position
AXIS 2.0 wheels are lightweight with strong, reliable rims
Shimano Ultegra, 11-speed rear derailleur is lightweight w/ smooth and crisp shifting
Body Geometry Sitero Expert saddle w/ hollow Ti rails for comfort in aero position
Fully-adjustable, Specialized Hydroformed Alloy Aerobar provides numerous fit options
AXIS 2.0 wheels are lightweight with strong, reliable rims
Technical Specifications
FRAMESET
FRAME
Specialized FACT 10r carbon, FACT IS construction, crosswind-optimised airfoils, 1-1/8" lower bearing, OSBB, Control Tower Fit System, Fuelselage Integrated Hydration System
FORK
Specialized FACT Aero carbon
HEADSET
1-1/8"" upper/lower, stainless steel cartridge bearings
SUSPENSION
REAR SHOCK
WHEELS
FRONT WHEEL
AXIS 2.0
REAR WHEEL
AXIS 2.0
FRONT TIRE
Specialized Turbo Elite, 60TPI, folding bead, BlackBelt protection, 700x23c
REAR TIRE
Specialized Turbo Elite, 60TPI, folding bead, BlackBelt protection, 700x23c
INNER TUBES
Standard, presta valve
DRIVETRAIN
FRONT DERAILLEUR
Shimano Ultegra, 11-speed, braze-on
REAR DERAILLEUR
Shimano Ultegra, 11-speed
CASSETTE
Shimano Ultegra, 11-speed, 11-28t
CRANKSET
FSA, carbon, BB30
CHAIN
Shimano Ultegra, 11-speed
COCKPIT
HANDLEBARS
Specialized Shiv Alloy Aerobars
STEM
Specialized Comp Multi, 3D forged alloy, 4-bolt, 12-degree rise
TAPE
Specialized S-Wrap w/gel
SADDLE
Body Geometry Sitero Expert, hollow Ti rails
SEATPOST
Shiv Aero, FACT Carbon, +/-12.5mm setback
BRAKES
REAR BRAKE
Specialized Aero, side pull
BRAKE LEVERS
Tektro RL970, carbon Aero TT
FRONT BRAKE
Specialized Aero, side pull
ACCESSORIES
PEDALS
Nylon flat test ride, loose-ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Seat-Tube Angle | 77° | 77° | 77° | 77° | 77° |
| Head-Tube Length | 99mm | 115mm | 139mm | 163mm | 189mm |
| Seat-Post Length | 350mm | 350mm | 350mm | 350mm | 350mm |
| Seat Post Setback | 12.5mm | 12.5mm | 12.5mm | 12.5mm | 12.5mm |
| Head-Tube Angle | 70.25° | 71.5° | 72° | 72.5° | 72.5° |
| Chain-Stay Length | 395mm | 395mm | 395mm | 395mm | 395mm |
| Top-Tube Length, Horizontal | 481mm | 504mm | 530mm | 557mm | 582mm |
| Front-Centre | 573mm | 589mm | 608mm | 631mm | 659mm |
| Stand-Over Height | 752mm | 772mm | 797mm | 822mm | 847mm |
| Seat-Tube Length, B-B Centre to Top | 505mm | 525mm | 551mm | 577mm | 603mm |
| Fork Rake | 50mm | 50mm | 45mm | 45mm | 45mm |
| B-B Drop | 72mm | 72mm | 72mm | 72mm | 72mm |
| Stack | 495mm | 515mm | 540mm | 565mm | 590mm |
| Reach | 365mm | 385mm | 405mm | 425mm | 445mm |
| Trail | 69mm | 61mm | 63mm | 60mm | 60mm |
| Wheelbase | 957mm | 973mm | 992mm | 1016mm | 1043mm |
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm |
| Stem Length | 90mm | 90mm | 90mm | 90mm | 90mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
