2022 S-Works Tarmac SL7 Frameset - 2021 World Championship LTD

0 Reviews

Style. Panache. Daring. To celebrate Julian Alaphilippe’s back-to-back world Road…

50 Individually Numbered

50 Individually Numbered

The painstaking detail and craftsmanship that go into creating this stunning design mean each frame takes many hours to paint. Because of this, only Julian’s personal frames and 50 individually numbered Tarmac SL7 celebratory framesets will ever be made.

The Moment of Victory

The Moment of Victory

Each frameset includes an 8x10 image from race photographer Chris Auld, capturing the moment of victory in front of hundreds of thousands of screaming race fans in Leuven, Belgium, signed by the 2X world champ himself.

Made in Racing

Made in Racing

A two-decade-long collaboration with the best riders in the world has pushed our engineering team farther than we ever thought possible, so far in fact that the new Tarmac SL7 redefines the modern race bike.

Product Details

Add Icon

Style. Panache. Daring. To celebrate Julian Alaphilippe’s back-to-back world Road championships, we created a Tarmac SL7 frameset as stunning as his victory. Designed to celebrate not just the rainbow stripes but the swirling storm of competition, only 50 individually numbered framesets will ever be made.

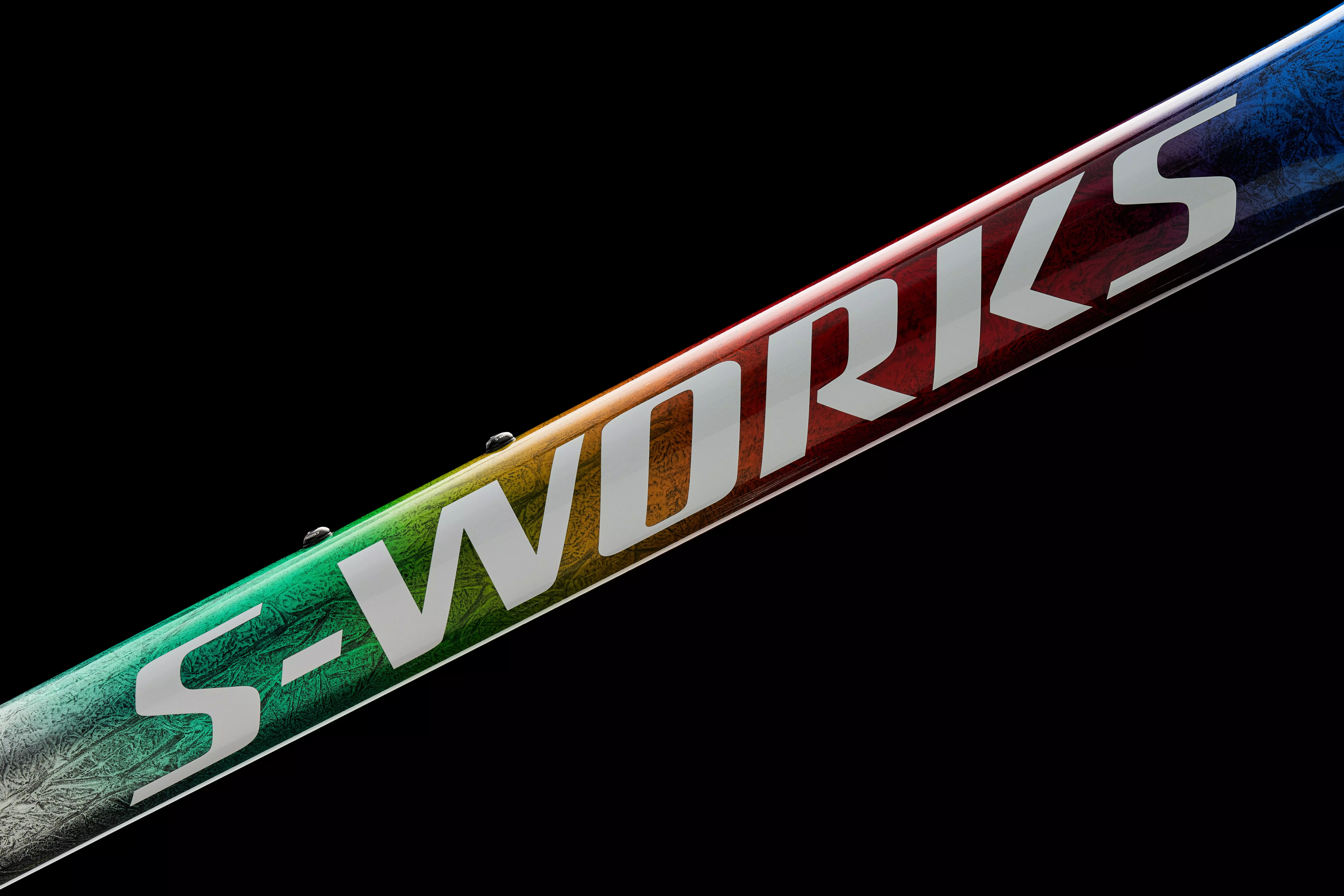

“That moment when all of the rider’s effort is being put into the pedals, their vision starts to blur, and the world champion rainbow stripes blur on the downtube and headtube. The silver granite represents the swirling of thoughts, emotions, training, and everything else that goes into that one singular moment of glory as they become the world champion.” - Tom Briggs, Senior Concepts Graphic Designer

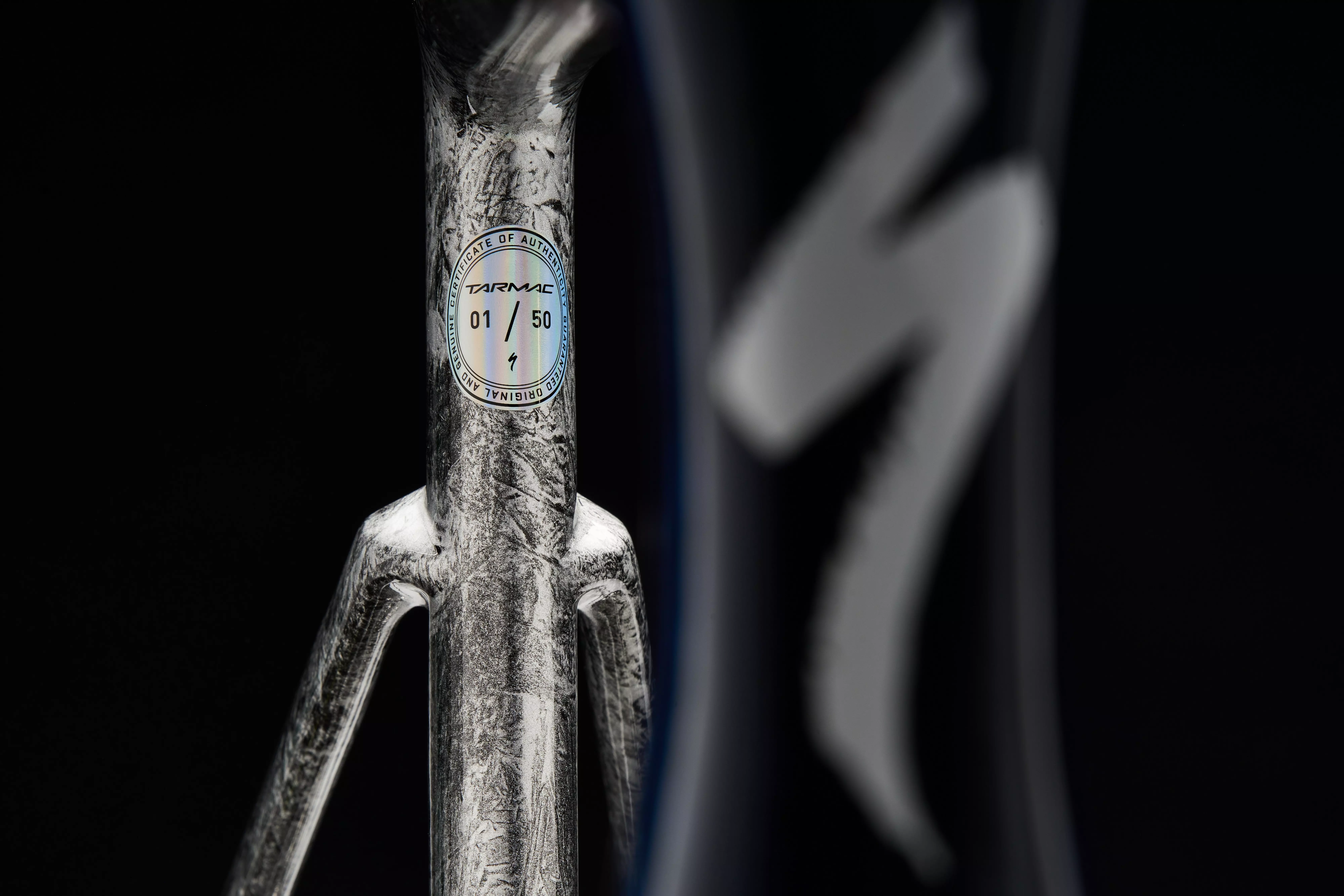

Each of these 50 limited-edition World Championship S-Works Tarmac SL7 framesets includes a photo capturing the moment of victory in Leuven, Belgium, signed by Julian Alaphilippe.

On the World Championship S-Works Tarmac SL7 frameset, you’ll climb on the lightest bike the UCI allows, then descend on the fastest. We’ve utilized our most advanced technologies, from our FreeFoil Shape Library to an all-new Rider-First Engineered™ frame, to deliver a race bike that is truly without compromise. The days of making sacrifices between “aero” and “lightweight” bikes are over—the all-new Tarmac is the fastest race bike ever. One bike to rule them all.

This World Championship S-Works Tarmac SL7 frameset is the perfect canvas to begin your dream build. Build your totally-custom dream bike, and be ready to ride fast.

  • “Aero is everything”—we’ve been preaching it for years and it’s still the driving force for the new Tarmac. In our quest for tube shapes that deliver the fastest frame that the UCI rules allow, we took a page out of the Venge development book and utilized our FreeFoil Shape Library. Armed with a library of optimized shapes, we turned to the Win Tunnel to plug these shapes into a modular test bike, for more testing and validation. The result? A new Tarmac that’s the fastest we’ve tested—45 seconds faster over 40km than the Tarmac SL6 (built with Roval Rapide handlebars, sold separately). No compromises, just pure speed.

  • While aerodynamics were paramount to the Tarmac’s development, and to the development of all of our race bikes, weight was the co-pilot on this optimal race bike journey. Previously “aero bikes” always compromised in the weight department—the more drag you reduced, the more weight you gained. With the new Tarmac, our design philosophy was to keep it at, or below, the UCI weight limit out of the box, with no sacrifices to aerodynamics. And with the help of the FreeFoil Shape Library, tools like isotopic FEA analysis, and some engineering wizardry by the best engineers in the industry, we delivered a frame that weighs a mere 800 grams, without giving up a gram of aero, stiffness or ride quality.

  • Continuing our quest to develop the perfect race bike, we used our Rider-First Engineered™ philosophy to ensure that the new Tarmac is the most balanced, best handling Tarmac yet—no matter the size. With an army of the world’s best test riders from our three World Tour Teams — SD-Worx, Deceuninck-Quick-Step, and Bora-hansgrohe — we made changes to the Tarmac based on their thousands of kilometers on the road. We balanced the ride quality between the front and rear end, so even the longest days in the saddle continue to be comfortable—all without giving up anything to the Tarmac’s legendary handling and race-winning snappiness.

  • Building on the learnings from the Venge, the new Tarmac utilizes simple integration to create a clean, fast cockpit that’s easy to live with. We’ve improved the routing for any configuration — mechanical shifting, traditional stems, round bars, etc. — all while keeping its aerodynamic attributes. These same traits also make the new Tarmac easy to work on and easy to travel with. It’s a win-win.

Technical Specifications

Add Icon

Frameset

Frame

S-Works Tarmac SL7 FACT 12r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc

Suspension

Fork

S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc

Cockpit

Stem

Tarmac integrated stem, 6-degree

SeatPost

2021 S-Works Tarmac Carbon seat post, FACT Carbon, 20mm offset

Seat Binder

Tarmac integrated wedge

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
4952545658
Stem Length80mm90mm100mm100mm110mm
Seatpost Length300mm300mm380mm380mm380mm
Head Tube Length93mm102mm113mm131mm151mm178mm198mm
BB Height266mm266mm266mm268mm268mm268mm268mm
Fork Rake/Offset47mm47mm47mm44mm44mm44mm44mm
Head Tube Angle70.5°71.75°72.5°73°73.5°73.5°74°
BB Drop74mm74mm74mm72mm72mm72mm72mm
Fork Length, Full366mm366mm366mm366mm366mm366mm366mm
Trail71mm63mm58mm58mm55mm55mm52mm
Seat Tube Angle75.5°75.5°74°74°73.5°73.5°73°
Front Centre572mm574mm577mm579mm592mm606mm613mm
Chainstay Length410mm410mm410mm410mm410mm410mm410mm
Bike Standover Height723mm735mm746mm768mm786mm808mm834mm
Wheelbase970mm973mm975mm978mm991mm1006mm1013mm
Seat Tube Length435mm447mm458mm475mm496mm517mm547mm
Top Tube Length, Horizontal496mm509mm531mm541mm563mm577mm595mm
Stack to Stem509mm522mm535mm552mm573mm599mm620mm
Reach to Stem363mm372mm377mm381mm393mm400mm406mm
Frame Stack491mm504mm517mm534mm555mm581mm602mm
Frame Reach369mm378mm383mm387mm398mm405mm411mm
Geometry
