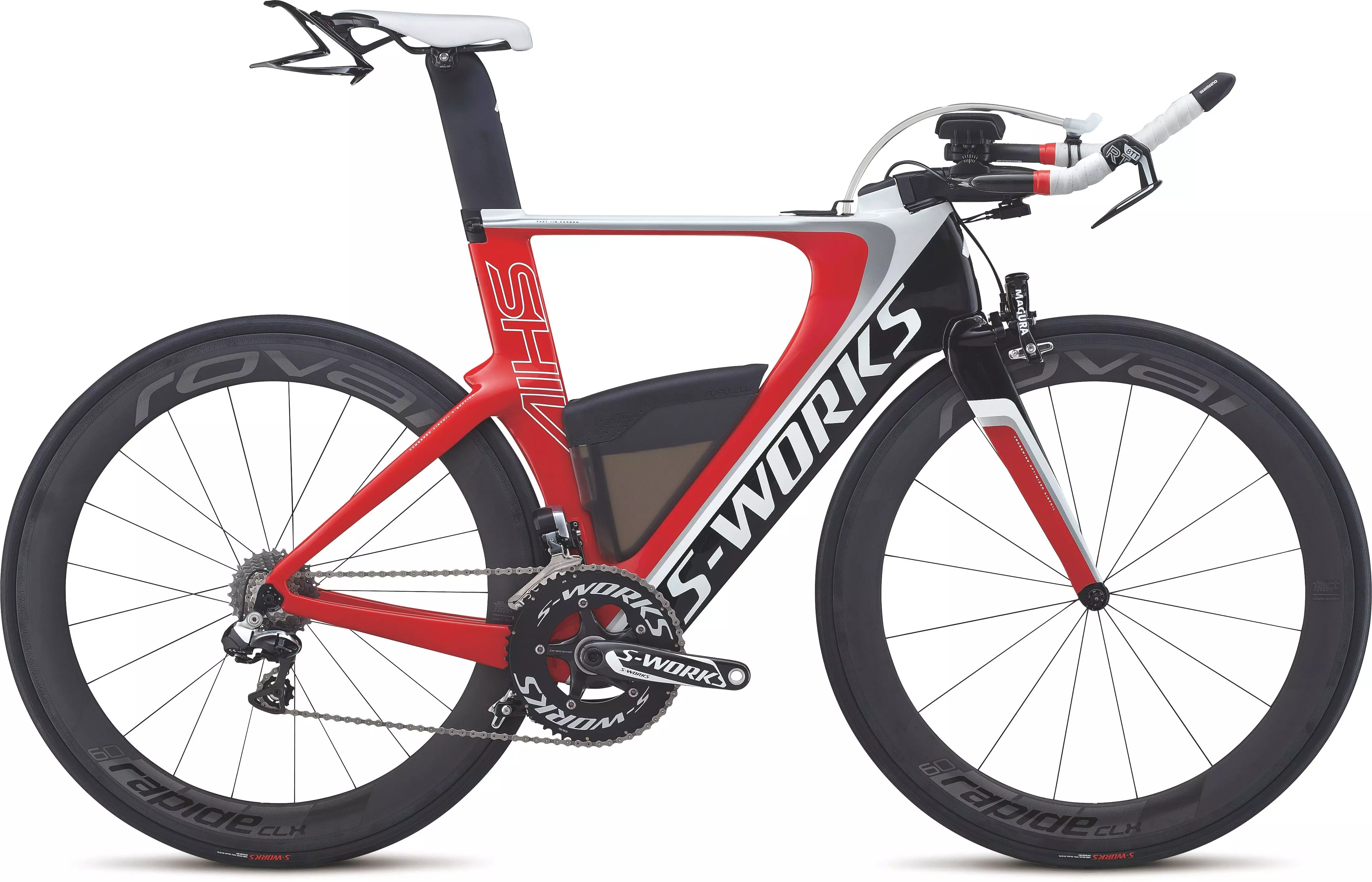

2015 S-Works Shiv Di2
0 Reviews
The S-Works Shiv is the ultimate triathlon weapon, delivering the perfect blend…
Colour:
Gloss Red/Carbon/White
What's my size?
Select a Size
Product Details
The S-Works Shiv is the ultimate triathlon weapon, delivering the perfect blend of stealthy power, drag-defying aerodynamics, and tailored fit options. Complete with Shimano Di2 drivetrain, it has one speed—fast.
Shiv Aero, FACT carbon seatpost w/ 12.5mm and 37.5mm offset options for aero efficiency
Shiv Aero, FACT carbon seatpost w/ 12.5mm and 37.5mm offset options for aero efficiency
Body Geometry Sitero Pro saddle w/ carbon rails for comfort in aero position
Roval Rapide CLX 60 carbon clincher wheelset blends aero, stiffness and light weight
Roval Rapide CLX 60 carbon clincher wheelset blends aero, stiffness and light weight
Body Geometry Sitero Pro saddle w/ carbon rails for comfort in aero position
Roval Rapide CLX 60 carbon clincher wheelset blends aero, stiffness and light weight
Technical Specifications
FRAMESET
FRAME
S-Works FACT 11r carbon, FACT IS construction, crosswind-optimised airfoils, 1-1/8" lower bearing, OSBB, Control Tower Fit System, Fuelselage Integrated Hydration System
FORK
Specialized FACT Aero carbon
HEADSET
1-1/8"" upper/lower, hybrid cartridge bearings
WHEELS
FRONT WHEEL
Roval Rapide CLX 60, w/ CeramicSpeed ceramic bearings
REAR WHEEL
Roval Rapide CLX 60, w/ CeramicSpeed ceramic bearings
FRONT TIRE
S-Works Turbo, 220TPI, folding bead, BlackBelt protection, 700x24c
REAR TIRE
S-Works Turbo, 220TPI, folding bead, BlackBelt protection, 700x24c
INNER TUBES
Standard, presta valve
DRIVETRAIN
SHIFT LEVERS
Shimano Di2 TT, 11-speed
FRONT DERAILLEUR
Shimano Dura-Ace Di2, 11-speed, braze-on
REAR DERAILLEUR
Shimano Dura-Ace Di2, 11-speed
CASSETTE
Shimano Dura-Ace, 11-speed, 11-28t
CRANKSET
S-Works FACT carbon, w/ TT chainrings
CHAINRINGS
53/39 TT
CHAIN
Shimano Dura-Ace, 11-speed
COCKPIT
HANDLEBARS
Specialized Carbon Aerobar
STEM
Shiv Aerostem
TAPE
Specialized S-Wrap, w/ sticky gel
SADDLE
Body Geometry Sitero Pro, carbon rails
SEATPOST
Shiv Aero, FACT Carbon, +/-12.5mm and +/-37.5mm setback
BRAKES
REAR BRAKE
Magura RT8TT
BRAKE LEVERS
Magura RT8TT
FRONT BRAKE
Magura RT8TT
ACCESSORIES
PEDALS
Nylon flat test ride, loose-ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Seat-Tube Angle | 77° | 77° | 77° | 77° | 77° |
| Head-Tube Length | 99mm | 115mm | 139mm | 163mm | 189mm |
| Seat-Post Length | 350mm | 350mm | 350mm | 350mm | 350mm |
| Seat Post Setback | 12.5mm | 12.5mm | 12.5mm | 12.5mm | 12.5mm |
| Head-Tube Angle | 70.25° | 71.5° | 72° | 72.5° | 72.5° |
| Chain-Stay Length | 395mm | 395mm | 395mm | 395mm | 395mm |
| Top-Tube Length, Horizontal | 481mm | 504mm | 530mm | 557mm | 582mm |
| Front-Centre | 573mm | 589mm | 608mm | 631mm | 659mm |
| Stand-Over Height | 752mm | 772mm | 797mm | 822mm | 847mm |
| Seat-Tube Length, B-B Centre to Top | 505mm | 525mm | 551mm | 577mm | 603mm |
| Fork Rake | 50mm | 50mm | 45mm | 45mm | 45mm |
| B-B Drop | 72mm | 72mm | 72mm | 72mm | 72mm |
| Stack | 495mm | 515mm | 540mm | 565mm | 590mm |
| Reach | 365mm | 385mm | 405mm | 425mm | 445mm |
| Trail | 69mm | 61mm | 63mm | 60mm | 60mm |
| Wheelbase | 957mm | 973mm | 992mm | 1016mm | 1043mm |
| Crank Length | 167.5mm | 170mm | 172.5mm | 172.5mm | 175mm |
| Stem Length | 90mm | 90mm | 90mm | 90mm | 90mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
