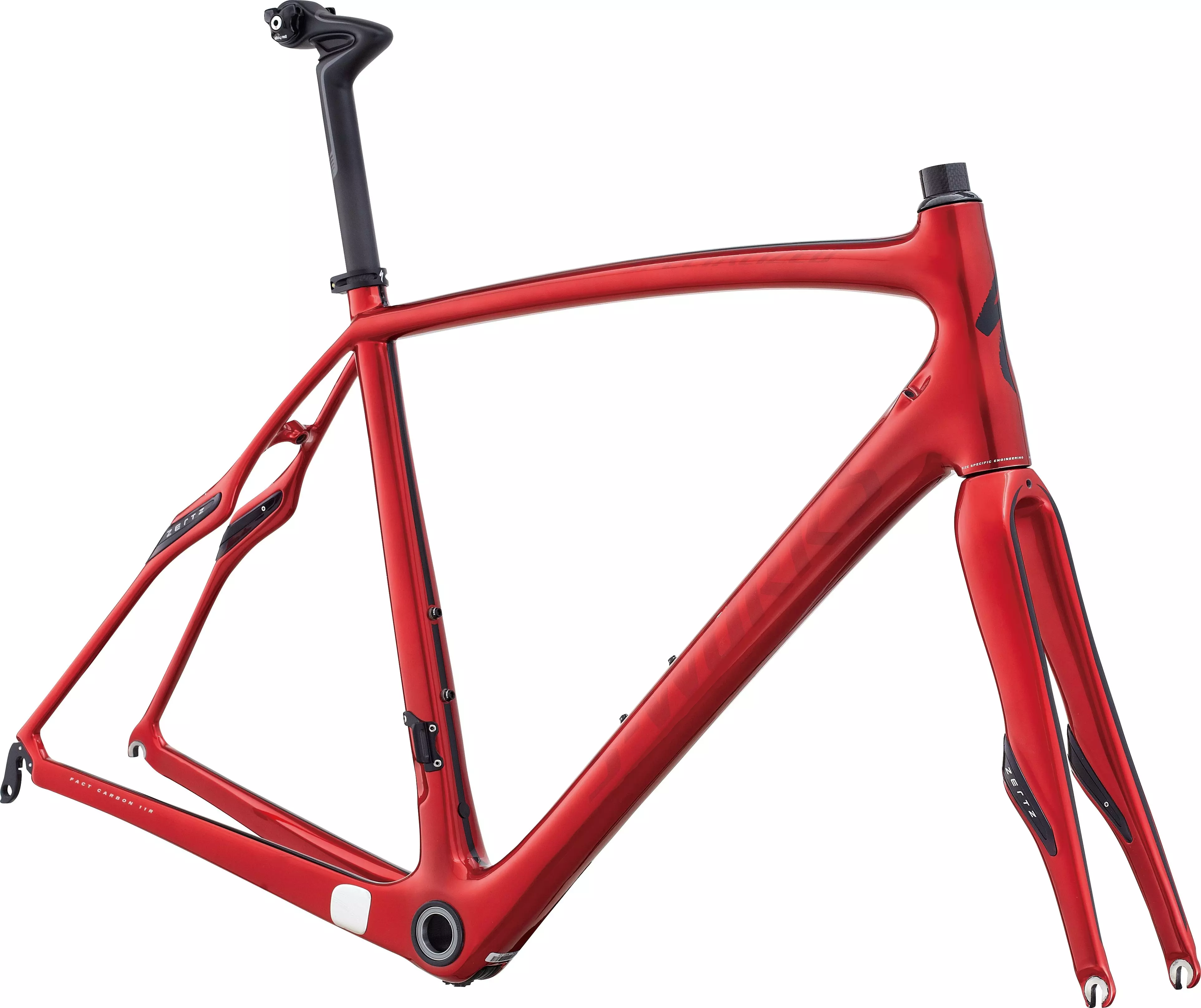

2014 S-Works Roubaix SL4 Frameset

0 Reviews

Smoother is faster. The more comfortable and less fatigued you are at the end of…

Product Details

Smoother is faster. The more comfortable and less fatigued you are at the end of a 4 hour ride, the stronger you'll be. Like shocks on a race car, the Zertz vibration damping inserts on the S-Works Roubaix SL4 help absorb road impact and keep power planted firmly on the road - couple that with a FACT carbon 10r frame and it's still plenty stiff to thrash around in a sprint. Just ask four time Paris-Roubaix champion Tom Boonen

The revolutionary CG-R post features 18mm of vertical compliance and Zertz vibration damping, while FACT carbon construction delivers unsurpassed comfort, control, and efficiency without adding weight or complication to the frame
The revolutionary CG-R post features 18mm of vertical compliance and Zertz vibration damping, while FACT carbon construction delivers unsurpassed comfort, control, and efficiency without adding weight or complication to the frame
S-Works SL4 FACT 11r frame with Zertz is the fastest and smoothest endurance bike available, with size-specific engineering, tapered headtube, and ultra light weight
S-Works SL4 FACT 11r frame with Zertz is the fastest and smoothest endurance bike available, with size-specific engineering, tapered headtube, and ultra light weight

Technical Specifications

FRAMESET

FRAME

S-Works SL4 FACT 11r carbon, FACT construction, tapered/shaped 1-1/8"" to size-specific lower headtube, compact race design, Zertz, internal cable routing, carbon OSBB

SEAT BINDER

Forged alloy, Ti bolt, 32.6mm

FORK

S-Works Roubaix FACT carbon full monocoque, Zertz, size-specific, hollow carbon dropouts

HEADSET

1-1/8"" upper and size-specific lower, hybrid cartridge lightweight bearings, 8mm carbon cone spacer, w/ 20mm of carbon spacers

DRIVETRAIN

BOTTOM BRACKET

OS integrated, CeramicSpeed, sealed ceramic bearings

COCKPIT

SEATPOST

S-Works CG-R, FACT carbon w/ Zertz, 27.2mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	490.0	520.0	540.0	560.0	580.0	610.0
Seat-Tube Angle	75.5°	74°	73.5°	73.25°	73°	72.5°
Head-Tube Length	125mm	145mm	165mm	190mm	225mm	245mm
Seat-Post Length	300mm	300mm	350mm	350mm	350mm	350mm
Head-Tube Angle	72°	72°	72°	72.5°	72.5°	73°
Chain-Stay Length	412mm	412mm	415mm	415mm	418mm	420mm
Top-Tube Length, Horizontal	518mm	537mm	548mm	565mm	582mm	600mm
Front-Centre	582mm	589mm	596mm	606mm	621mm	628mm
Handle-Bar Width	400mm	420mm	420mm	420mm	440mm	440mm
Stand-Over Height	730mm	756mm	776mm	798mm	829mm	851mm
Seat-Tube Length, B-B Centre to Top	455mm	475mm	495mm	515mm	540mm	565mm
Fork Rake	49mm	49mm	49mm	49mm	49mm	49mm
B-B Drop	73mm	73mm	71.5mm	71.5mm	70mm	70mm
Stack	528mm	547mm	564mm	590mm	622mm	643mm
Reach	378mm	379mm	380mm	387mm	392mm	398mm
Trail	59mm	59mm	59mm	56mm	56mm	53mm
Wheelbase	983mm	990mm	1000mm	1011mm	1029mm	1039mm
Crank Length	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Stem Length	75mm	90mm	100mm	100mm	110mm	110mm
