This is the bike that defines the very genre that bears its name—the S-Works Enduro…

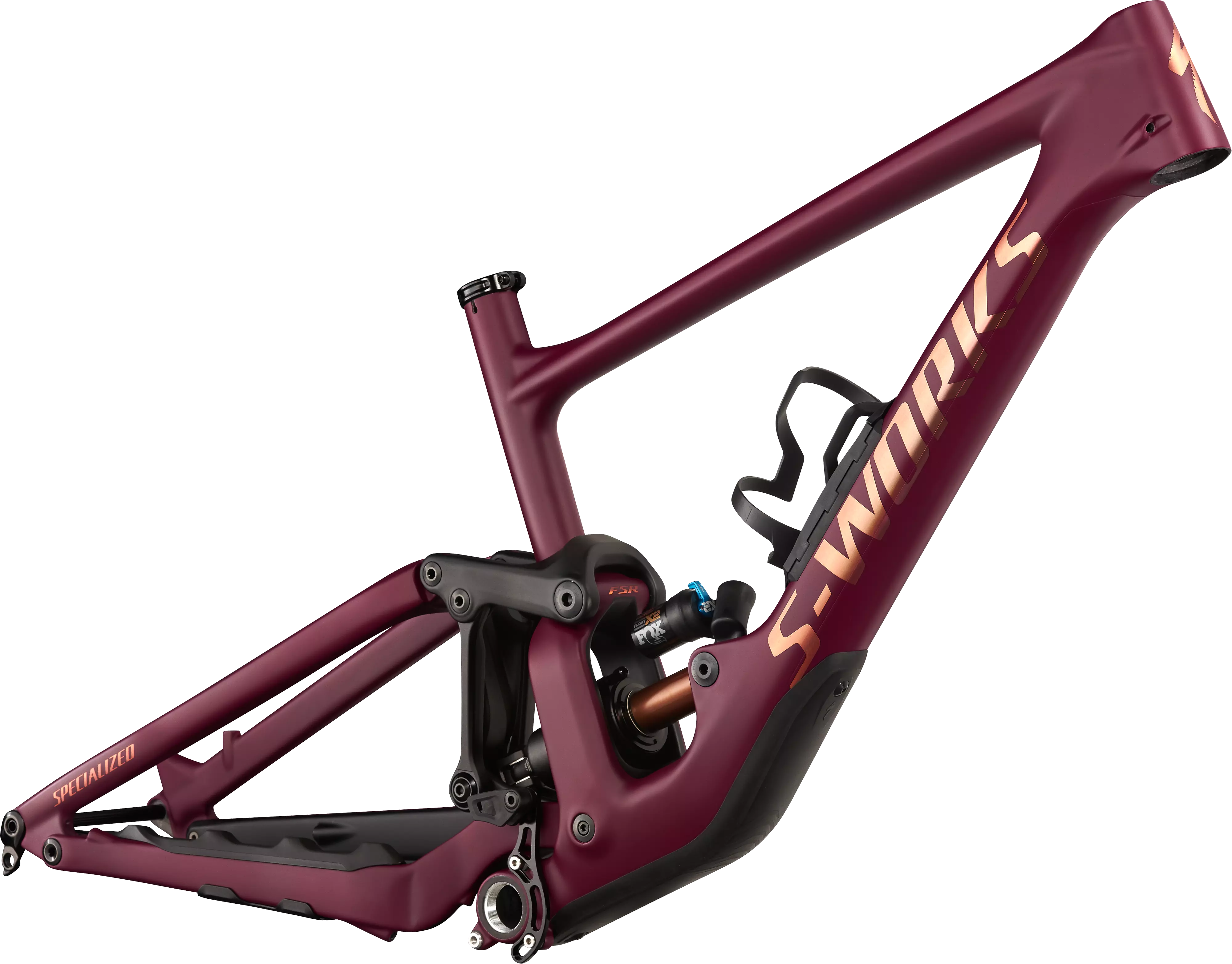

This is the bike that defines the very genre that bears its name—the S-Works Enduro climbs with utmost efficiency yet stays calm on even the gnarliest descents. It features a bomber, yet lightweight carbon frame that blissfully tackles the kind of terrain that chews up and spits out lesser bikes.
Frame
FACT 11m carbon chassis and rear-end, S-Sizing Enduro Race Geometry, SWAT™ Door integration, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 170mm of travel
SWAT
Seat Binder
Alloy, 38.6
Rear Shock
FOX FLOAT X2 Factory, Rx Trail Tune, 2-position adjustment, high and low speed rebound and compression adjust, Trunnion mount, 205x60mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
S2 | S3 | S4 | S5 | |
---|---|---|---|---|
Stack (low BB) | 616mm | 620mm | 629mm | 638mm |
Reach (low BB) | 437mm | 464mm | 487mm | 511mm |
Head-Tube Length | 95mm | 100mm | 110mm | 120mm |
Head-Tube Angle (low BB) | 63.9° | 63.9° | 63.9° | 63.9° |
Head-Tube Angle | 64.3mm | 64.3mm | 64.3mm | 64.3mm |
B-B Height (low BB) | 347mm | 347mm | 347mm | 347mm |
B-B Height | 354mm | 354mm | 354mm | 354mm |
B-B Drop (low BB) | 28mm | 28mm | 28mm | 28mm |
B-B Drop | 21mm | 21mm | 21mm | 21mm |
Trail (low BB) | 132mm | 132mm | 132mm | 132mm |
Fork Length (full) | 581mm | 581mm | 581mm | 581mm |
Fork Rake/Offset | 46mm | 46mm | 46mm | 46mm |
Front-Center (low BB) | 777mm | 806mm | 833mm | 862mm |
Chain-Stay Length | 442mm | 442mm | 442mm | 442mm |
Wheelbase | 1217mm | 1246mm | 1274mm | 1302mm |
Seat-Tube Length | 400mm | 420mm | 440mm | 465mm |
Seat-Tube Angle | 76° | 76° | 76° | 76° |
Top Tube Length (Horizontal) | 591mm | 619mm | 644mm | 670mm |
