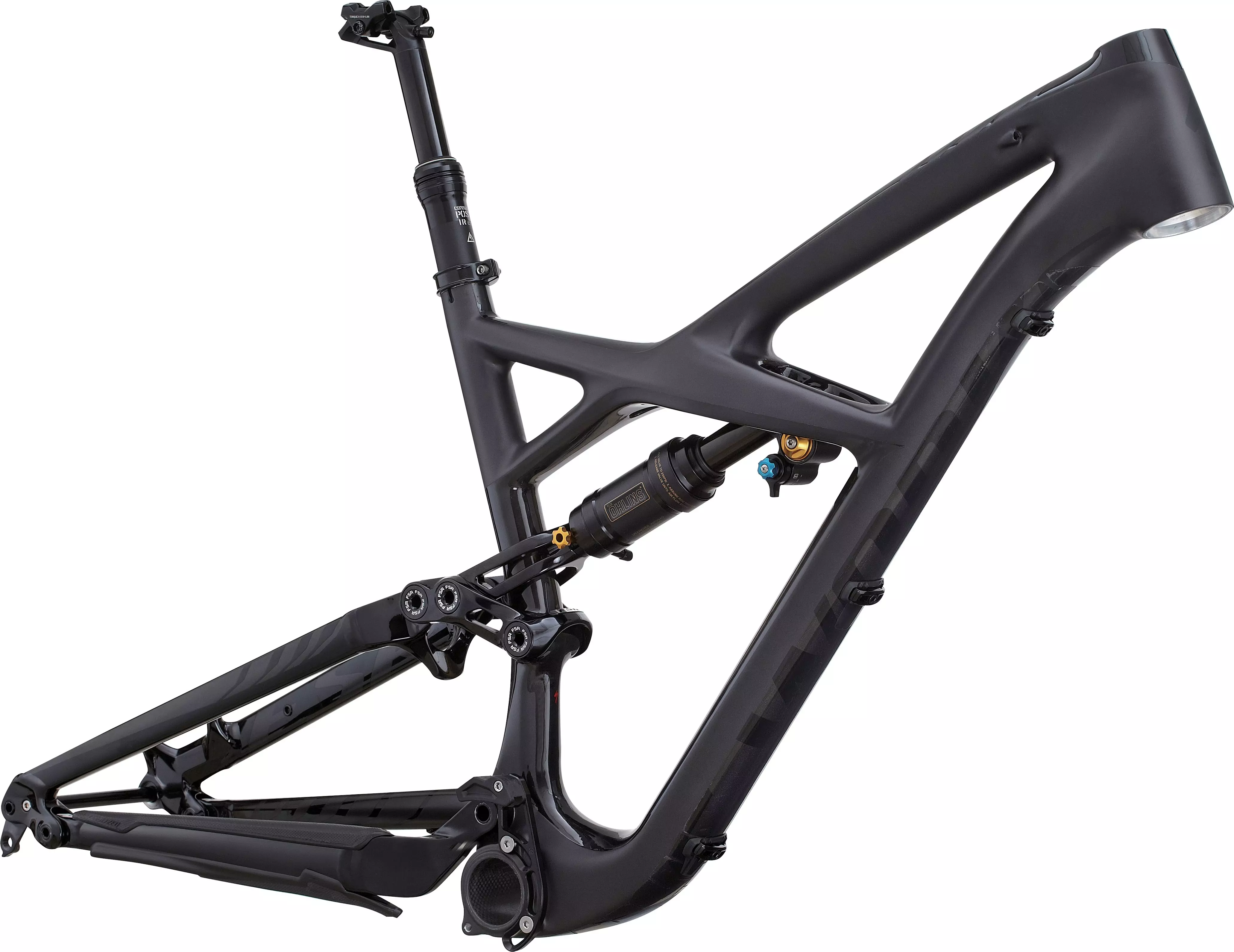

2016 S-Works Enduro 650b Frame

0 Reviews

We know that you're particular about how you build-out your dream bike, which is…

Product Details

Add Icon

We know that you're particular about how you build-out your dream bike, which is why we offer our revolutionary S-Works Enduro FSR 650b as a frameset. It's constructed from our top-tier FACT IS-X 11m carbon fibre to keep the weight down, while this material comes with the added benefit of being incredibly stiff. However, everything is kept in balance by our nimble 650b Geometry's roomy top tube, short chainstays, slack head tube, and longer wheelbase. To ensure top-level performance on the descents, this geo is mated with our exclusive, uncompromising 165mm Öhlins STX single tube shock with 3rd Chamber air spring technology at the rear. And to ensure that you're in the perfect position for any trail section, we've also included our all-new Command Post IRcc dropper with up to 125mm of travel and 10 middle positions. This Enduro gives you the tools—now create your masterpiece.

  • Command Post IRcc seatpost features up to 125mm of micro-adjust height adjustability for a more customisable position, ultimately resulting in more control and increased handling on both climbs and descents

  • Command Post IRcc seatpost features up to 125mm of micro-adjust height adjustability for a more customisable position, ultimately resulting in more control and increased handling on both climbs and descents

  • Command Post IRcc seatpost features up to 125mm of micro-adjust height adjustability for a more customizable position, ultimately resulting in more control and increased handling on both climbs and descents.

Technical Specifications

Add Icon

FRAMESET

FRAME

FACT IS-X 11m carbon, 650b geometry, FACT carbon front triangle, M5 rear triangle, tapered head tube, PF30 BB, internal Command Post IR routing, 142mm dropouts, full cartridge bearing pivots, replaceable derailleur hanger, 165mm travel

HEADSET

1-1/8"" upper, 1-1/2"" lower, threadless, Campy style, cartridge bearings

SEAT BINDER

Specialized, 7050 alloy, single bolt, 34.9mm

SUSPENSION

REAR SHOCK

Custom Öhlins STX, single tube, 3rd Chamber air spring technology, AUTOSAG, compression adjust, rebound adjust, 215.9x57.2mm

COCKPIT

SEATPOST

Command Post IRcc, cruiser control technology, micro-adjust height adjustable, alien head design, bottom mount cable routing, remote adjust SRL and grip lever, 30.9mm, S: 100mm travel, M/L/XL: 125mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
