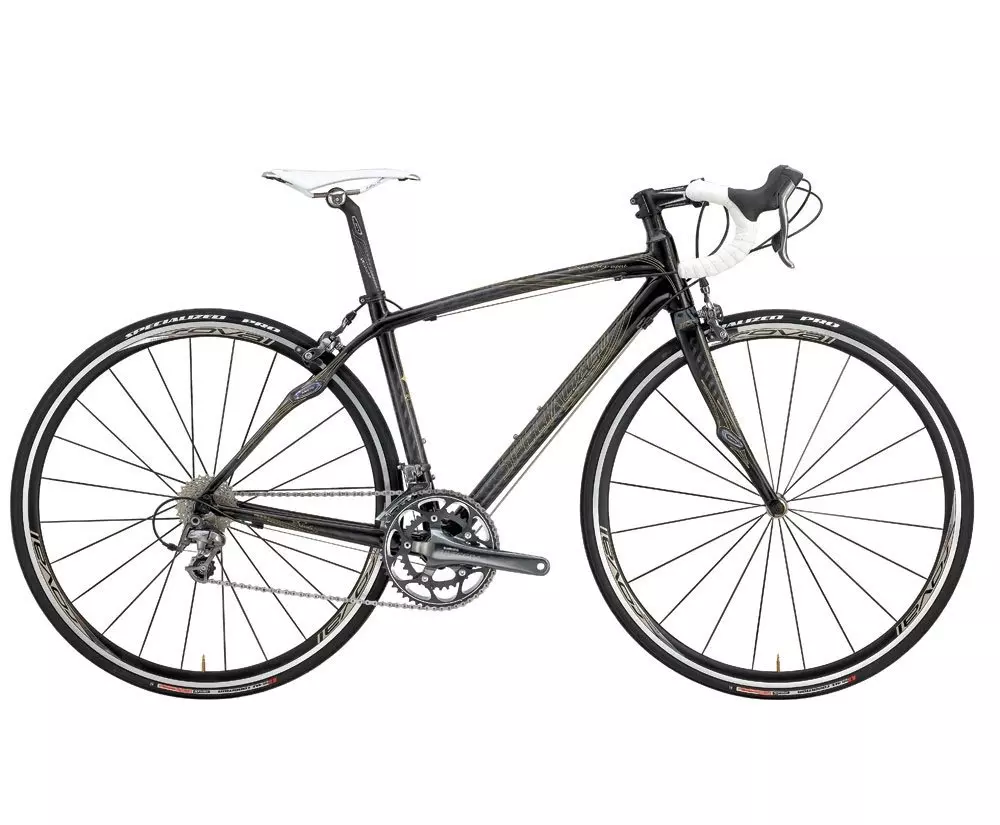

2008 Ruby Expert Compact

0 Reviews

Women's Performance Road PLAY LIKE THE PROS The Ruby is a pure performance racehorse,…

Product Details

Women's Performance Road PLAY LIKE THE PROS The Ruby is a pure performance racehorse, engineered for women who like to fly. Performance optimized for speed-hungry riders and racers looking for the lightest, fastest and best fitting partner on the road, the Ruby® will satisfy your addiction for brutal climbs, thrilling descents and high mileage.

Inside Tech Specially-tuned tubing dimensions and geometry (to fit female anatomies) yields a super lightweight, smooth riding chassis of superior caliber. Not to mention, unheard of strength and stiffness-toweight ratios. You're allowed to geek out on this kind of technology!

Useful Links www.D4WGear.com FACT Carbon Roval Wheels Manuals/Tech Bulletins

Specialized FACT 8r carbon frame, Az1 construction, Designs for Women compact design, Zertz inserts
Specialized FACT monocoque carbon fork, full carbon legs, crown and steerer w/ Zertz inserts
Shimano Ultegra 10-speed STI shifters and rear derailleur, short cage
SRAM OG-1070 cassette, 10-speed 11-28t
50x34T chainrings
Roval Echappee wheelset
Body Geometry Ruby Women's saddle

Technical Specifications

FRAMESET

FRAME

Specialized FACT 8r carbon, Az1 construction, Designs for Women compact design, Zertz inserts

FORK

Specialized FACT monocoque carbon fork, full carbon legs, crown and steerer w/ Zertz inserts

HEADSET

Specialized Mindset Plus Carbon, 1 1/8"" integrated threadless, cartridge sealed bearings, carbon 20mm cone w/ one 10mm and two 5mm carbon spacers

SEAT BINDER

Specialized CNC, alloy, 32.6mm clamp

WHEELS

FRONT TIRE

Specialized All Condition Pro, 700x23c, aramid bead, 120TPI w/ Flak Jacket

REAR TIRE

Specialized All Condition Pro, 700x23c, aramid bead, 120TPI w/ Flak Jacket

RIMS

Roval Echappee

FRONT HUB

Roval Echappee, Roval QR

REAR HUB

Roval Echappee, alloy cassette, Roval QR

SPOKES

DT Stainless 14/15g Butted Aero

DRIVETRAIN

FRONT DERAILLEUR

Shimano Ultegra, 34.9mm clamp, bottom pull

REAR DERAILLEUR

Shimano Ultegra, short cage

SHIFT LEVERS

Shimano Ultegra, 10-speed STI, flight deck compatible

CHAIN

Shimano Ultegra, 10-speed

CRANKSET

Shimano Ultegra, Hollowtech II 2-piece crankset

CHAINRINGS

50x34T

BOTTOM BRACKET

FSA MegaExo, integrated exterior cartridge bearings, alloy

COCKPIT

STEM

Specialized Pro-Set lightweight stem, 3D forged alloy, 4-bolt 31.8mm bar clamp, 4- position adjustable

HANDLEBARS

Specialized Zertz Womens Pro, 2014 alloy, short-reach drop, ergonomic shaping, 31.8

SADDLE

Body Geometry Ruby Women's, carbon reinfoced base, hollow Ti rails, microfiber cover

BRAKES

FRONT BRAKE

Shimano Ultegra

REAR BRAKE

Shimano Ultegra

BRAKE LEVERS

Shimano Ultegra, 10-speed STI, flight deck compatible

ACCESSORIES

PEDALS

Composite body test ride pedals

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	44	48	51	54	56
Ground-Top	73mm	73mm	73mm	73mm	71.5mm
Seat-Tube Angle	66°	62°	59°	59°	59°
Head-Tube Length	165mm	165mm	170mm	170mm	172.5mm
Head-Tube Angle	574°	579°	582°	588°	595°
Chain-Stay Length	51mm	51mm	49mm	49mm	49mm
Top-Tube Length, Horizontal	76mm	75.75mm	75.5mm	74mm	73.5mm
Front-Centre	105mm	115mm	125mm	145mm	165mm
Handle-Bar Width	300mm	300mm	350mm	350mm	350mm
Stand-Over Height	75mm	75mm	90mm	100mm	100mm
Seat-Tube Length, B-B Centre to Top	405mm	405mm	405mm	405mm	408mm
Fork Rake	967mm	973mm	976mm	982mm	993mm
B-B Drop	70.5mm	71.25mm	72mm	72mm	72mm
Stack	400mm	430mm	450mm	480mm	500mm
Reach	496mm	506mm	518mm	537mm	548mm
Trail	693mm	718mm	735mm	758mm	778mm
Wheelbase	380mm	380mm	400mm	400mm	420mm
