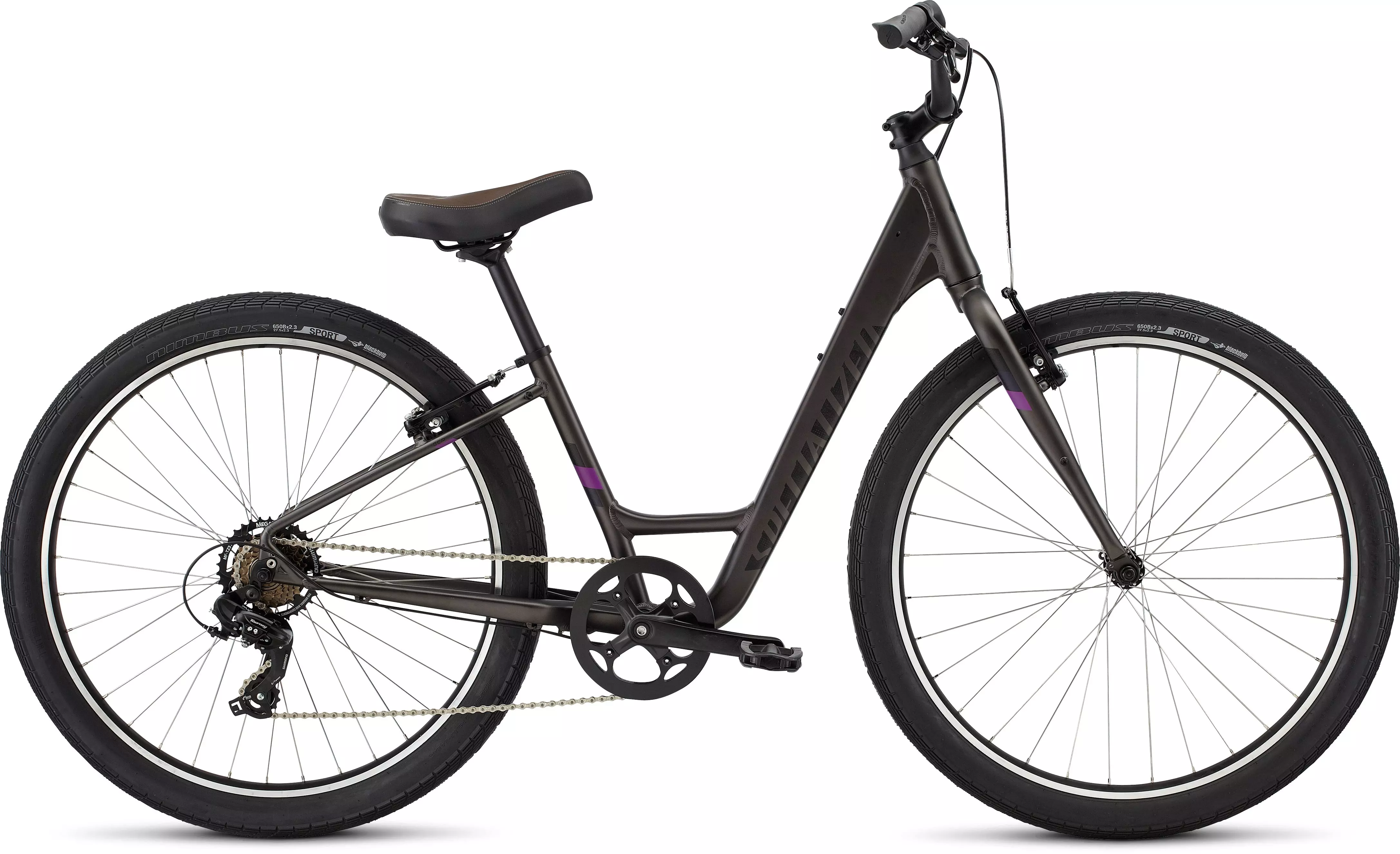

Roll Low Entry
FRAME
Specialized A1 Premium Aluminium, Ground Control Positioning, formed tubes, disc mount, fender/rack mounts
SEAT BINDER
Alloy, 31.8mm
FORK
Roll Disc Steel, fender/rack mounts
RIMS
650b double-wall
FRONT HUB
Specialized V-brake, alloy, loose ball bearings, 9mm, QR
REAR HUB
Specialized V-brake, loose ball bearings, QR, 32h
SPOKES
Stainless, 14g
FRONT TYRE
Nimbus Sport, 60TPI, 650bx2.3", BlackBelt protection
REAR TYRE
Nimbus Sport, 60TPI, 650bx2.3", BlackBelt protection
REAR DERAILLEUR
Shimano Tourney, 7-speed
SHIFT LEVERS
Shimano Altus, 7-speed
CASSETTE
Shimano Tourney freewheel, 7-speed, 14-34t
CHAIN
KMC Z51, 6-/7-speed
CRANKSET
Cold-forged alloy crankarms, 3-piece construction, 104mm BCD spider, 4-arm w/steel chainring
CHAINRINGS
42T w/steel chainguard
BOTTOM BRACKET
BSA, square taper, cartridge bearings
STEM
Forged alloy, 17-degree rise, 31.8mm clamp
HANDLEBARS
Specialized Roll, 6061 alloy, 15-degree backsweep, 5-degree upsweep, 125mm rise, 31.8mm
SADDLE
Body Geometry The Cup, steel rails, 245mm
SEATPOST
Alloy, 12mm offset, 2-bolt clamp, 27.2mm
FRONT BRAKE
Tektro V-brake, linear pull
REAR BRAKE
Tektro V-brake, linear pull
PEDALS
Specialized City platform
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
SM | LG | |
---|---|---|
Crank Length | 165mm | 170mm |
Handlebar Width | 680mm | 680mm |
Stem Length | 60mm | 60mm |
Saddle Width | 245mm | 245mm |
Seatpost Length | 350mm | 350mm |
Seat-Tube Angle | 67° | 67° |
Head-Tube Length | 155mm | 215mm |
Head-Tube Angle | 68° | 69° |
Chain-Stay Length | 480mm | 480mm |
Front-Centre | 618mm | 645mm |
B-B Drop | 70mm | 70mm |
B-B Height | 285mm | 285mm |
Bike Stand-Over Height | 496.2mm | 495.3mm |
Fork Length (full) | 420mm | 420mm |
Top-Tube Length (horizontal) | 595mm | 635mm |
Seat-Tube Length | 370mm | 480mm |
Stack | 586mm | 647mm |
Reach | 346mm | 360mm |
Trail | 84mm | 77mm |
Fork Rake/Offset | 55mm | 55mm |
Wheelbase | 1089mm | 1116mm |
