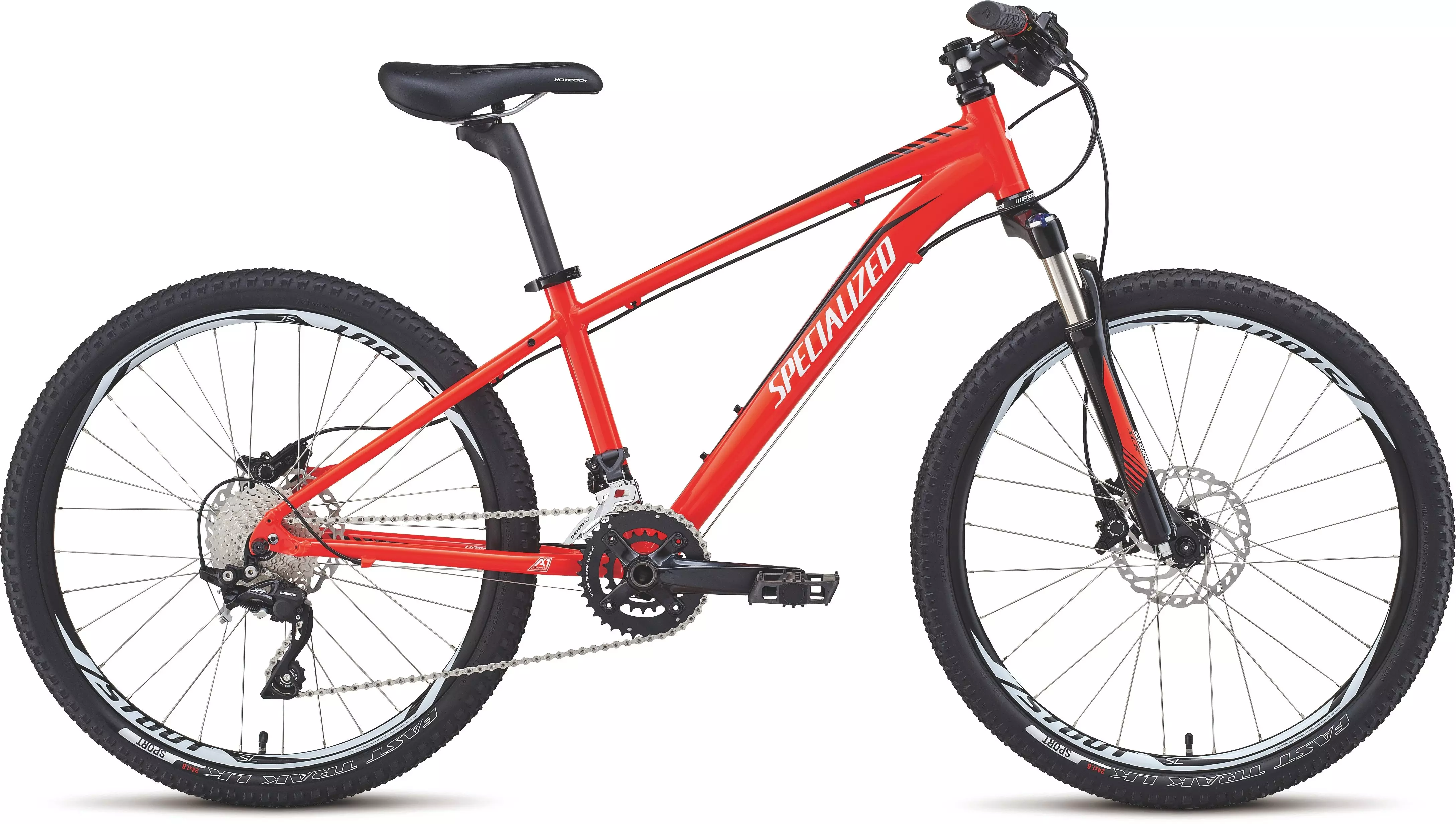

2014 Hotrock 24 XC Pro
Part No.: 94014-1013
0 Reviews
This singletrack ripper is fully up to any trail task asked. With Shimano drivetrain…
Colour:
Red/Black/White
Size:
13
Product Details
This singletrack ripper is fully up to any trail task asked. With Shimano drivetrain and Shimano Deore hydraulic disc brakes this bike will get the kids tackling the toughest trails at an early age.
24" A1 Premium Aluminium frame is built like an adult XC bike with double butted tubing, forged dropouts, and disc brake mounts
Shimano Deore XT Shadow Plus 10-speed rear derailleur for high-end MTB performance
Custom SRAM XC double crankset with 160mm arms for great performance that fits smaller riders
Custom SRAM XC double crankset with 160mm arms for great performance that fits smaller riders
Custom SRAM XC double crankset with 160mm arms for great performance that fits smaller riders
Shimano Deore XT Shadow Plus 10-speed rear derailleur for high-end MTB performance
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, double-butted and formed downtube/toptube, externally relieved headtube, forged dropouts w/ replaceable hanger, disc mount
FORK
SR Suntour XCR-AIR-LO, 1pc. alloy lower, 28mm Hi-Ten stanchions, 1-1/8"" alloy steerer, air spring w/ preload adj., Speed Lock hydraulic lockout, 63mm travel
HEADSET
FSA Orbit Ahead style, sealed cartridge bearings
SEAT BINDER
Forged alloy, single bolt, 31.8mm
WHEELS
RIMS
Disc 24"", double wall, 23mm, sleeve joint, 28h
FRONT HUB
Forged alloy, double-sealed, ground race, QR, 28h
REAR HUB
Disc, alloy, Hi Lo flange, sealed bearings, steel cassette body, 28h
SPOKES
Stainless, 14g (2.0mm)
FRONT TIRE
Specialized Fast Trak Sport, 24x1.8"", wire bead, 60TPI
REAR TIRE
Specialized Fast Trak Sport, 24x1.8"", wire bead, 60TPI
INNER TUBES
Standard Schrader valve
DRIVETRAIN
FRONT DERAILLEUR
SRAM X7
REAR DERAILLEUR
Shimano Deore XT Shadow Plus, 10-speed, SGS Cage
SHIFT LEVERS
Shimano Deore, 10-speed Rapidfire, SL type
CASSETTE
Sunrace, 10-speed, 11-36
CHAIN
KMC X10
CRANKSET
Custom SRAM S-1255 10-speed, 160mm arms
CHAINRINGS
SRAM 32/22
BOTTOM BRACKET
SRAM GXP, 68mm shell
COCKPIT
STEM
Syntace F109, 6-degree rise, 31.8mm clamp
HANDLEBARS
Mini riser bar, carbon, 640mm wide, 31.8mm
GRIPS
Specialized Body Geometry XC Contour, Kraton w/ gel
SADDLE
Body Geometry Kid's Rival, 7mm rails, front/rear bumpers
SEATPOST
Carbon, 27.2mm
BRAKES
FRONT BRAKE
Shimano Deore BR-615 hydraulic disc, 160mm rotor
REAR BRAKE
Shimano Deore BR-615 hydraulic disc, 140mm rotor
BRAKE LEVERS
Shimano, hydraulic lever
ACCESSORIES
PEDALS
Composite platform, w/ reflectors, 9/16""
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 11.5 | 13.5 | |
|---|---|---|
| Ground-Top | 769mm | 787mm |
| Bottom Bracket Height - Low Setting | 264mm | 271mm |
| Top Tube Length (Horizontal) | 490mm | 530mm |
| Head Tube Height | 90mm | 110mm |
| Head Tube Angle - Low Setting | 70° | 70° |
| Seat Tube Angle (Actual) - Low Setting | 73° | 73° |
| Top Tube Length (Actual) | 484mm | 513mm |
| Seat Tube Length - Centre to Top | 305mm | 342mm |
| Wheel Base | 960mm | 1005mm |
| Standover Height | 608mm | 648mm |
| Stack | 505mm | 516mm |
| Reach | 335mm | 372mm |
| Chainstay Length | 420mm | 420mm |
