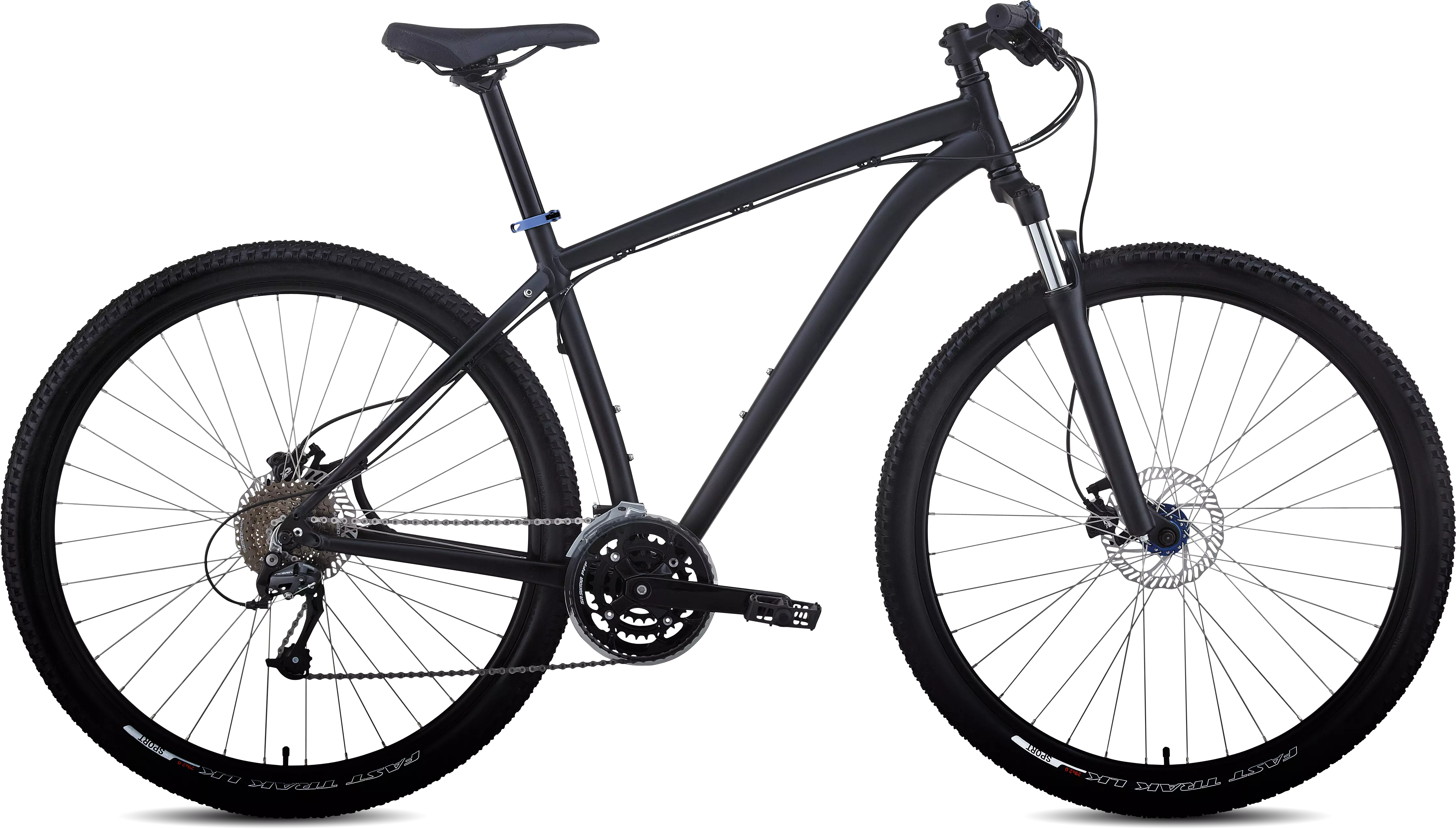

2012 Hardrock Sport Disc Int
0 Reviews
With a smooth SR Suntour 29er fork with lockout, powerful Avid BB5 disc brakes,…
Colour:
Blk Pnk/Blu Ano
What's my size?
Select a Size
Product Details
With a smooth SR Suntour 29er fork with lockout, powerful Avid BB5 disc brakes, and double-walled 29
Fully butted A1 Premium Aluminum 29er frame with double ORE down tube for a lighter, more compliant and durable bike
80mm smooth-travel 29" SR Suntour fork with preload adjustment, lockout, and size-specific spring rates for more versatility and tunability over varying terrain
Light and durable double-walled 29" alloy rims are tough enough to handle the rough stuff
Specialized 29" Fast Trak LK Sport 60 TPI tires use a reduced knob height for lower rolling resistance, but have plenty of grip for confidence on the trail
SR's fully replaceable ring crankset uses Shimano's Octalink-splined BB interface for reliable power transfer, chainguard included
Sealed cartridge bearing BB is durable and easy to service
Flat alloy XC handlebar for solid control
Tektro Draco hydraulic disc brakes with dual pistons and forged calipers assure precision braking and durability
Shimano Acera 9-speed rear derailleur and Acera Rapidfire shifters for reliable high-end performance
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum 29"", fully butted, disc only, 6061 alloy, double ORE down tube, externally relieved head tube, forged dropouts and reinforced disc mount, alloy replaceable derailleur hanger
HEADSET
1-1/8"" threadless, loose ball w/ seals
SEAT BINDER
34.9mm, alloy, extruded QR lever/collar
SUSPENSION
FORK
SR Suntour XCM (SF11-XCM-V3-29-DS-MLO), 1pc. alloy lower, 30mm Hi-Ten stanchions, mechanical LO, custom women's coil/mcu spring w/ preload adj., spring assisted seals, 80mm travel
WHEELS
RIMS
Alex HR Disc 29"", alloy double-wall, disc, pin joint, 24mm, 36h
FRONT HUB
Disc hub, high-lo flange, sealed loose ball, machined disc mount, QR, 36h
REAR HUB
Machined disc mount & flanges, double-sealed loose ball, polished races,19mm contact, QR, 36h
SPOKES
Stainless silver, 2.0mm (14g)
FRONT TIRE
Specialized Fast Trak LK Sport, 60 TPI, wire bead, 29x2.0""
REAR TIRE
Specialized Fast Trak LK Sport, 60 TPI, wire bead, 29x2.0""
INNER TUBES
Schrader valve
DRIVETRAIN
FRONT DERAILLEUR
Shimano Acera, 9-speed, 34.9mm clamp, top-swing, dual-pull
REAR DERAILLEUR
Shimano Acera, 9-speed, SGS cage
SHIFT LEVERS
Shimano Acera, 9-speed Rapidfire plus, SL type w/ optical display
CASSETTE
Shimano 9-speed, 11-34t
CHAIN
KMC X-9, 9-speed, reusable Missing Link
CRANKSET
SR Suntour, 9-speed, Octalink spline, w/ chainguard
CHAINRINGS
42/32/22, replaceable outer, w/ chainguard
BOTTOM BRACKET
Shimano, Octalink spline, cartridge bearing, 68mm
COCKPIT
SEATPOST
Alloy, 2 bolt head, 30.9mm, 12.5mm offset, micro adjust
STEM
3D forged 6061 alloy, 4 bolt clamp, 10º rise, 25.4mm
HANDLEBARS
Alloy flat bar, 8º backsweep, 4º upsweep, 25.4mm
GRIPS
Specialized Enduro, dual compound
SADDLE
Specialized Body Geometry Hardrock, steel rails, front and rear bumpers, 143mm width
BRAKES
FRONT BRAKE
Tektro Draco hydraulic disc brake, post mount, 160mm 6-bolt rotor
REAR BRAKE
Tektro Draco hydraulic disc brake, post mount, 160mm 6-bolt rotor
BRAKE LEVERS
Tektro Draco hydraulic
ACCESSORIES
PEDALS
Composite platform w/ molded pins, toe clip compatible, 9/16"" w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 15.5 | 17.5 | 19.0 | 21.0 | 23.0 | |
|---|---|---|---|---|---|
| Top Tube Length (Horizontal) | 574mm | 591mm | 610mm | 640mm | 660mm |
| Seat Tube Angle (Effective) | 74.25° | 73° | 73° | 73° | 73° |
| Top Tube Length (Actual) | 555mm | 566mm | 581mm | 610mm | 631mm |
| Seat Tube Angle (Actual) | 73° | 72° | 72° | 72° | 72° |
| Seat Tube Length, Centre to Top | 394mm | 444mm | 483mm | 533mm | 584mm |
| Bottom Bracket Drop | 68.5mm | 68.5mm | 68.5mm | 68.5mm | 68.5mm |
| Bottom Bracket Height | 301mm | 301mm | 301mm | 301mm | 301mm |
| Wheel Base | 1083mm | 1090mm | 1105mm | 1136mm | 1157mm |
| Standover Height | 710mm | 787mm | 824mm | 858mm | 894mm |
| Stack | 622mm | 592mm | 634mm | 653mm | 672mm |
| Reach | 395mm | 410mm | 416mm | 440mm | 456mm |
| Head Tube Length | 100mm | 100mm | 110mm | 130mm | 150mm |
| Head Tube Angle | 70.5° | 71° | 71° | 71° | 71° |
| Chainstay Length | 450mm | 450mm | 450mm | 450mm | 450mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm | 175mm |
| Handlebar Width | 640mm | 660mm | 660mm | 660mm | 660mm |
| Stem Length | 60mm | 80mm | 80mm | 100mm | 100mm |
| Seatpost Length | 350mm | 350mm | 400mm | 400mm | 400mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
