Here's proof you don't need tons of suspension travel to tackle challenging trails.…

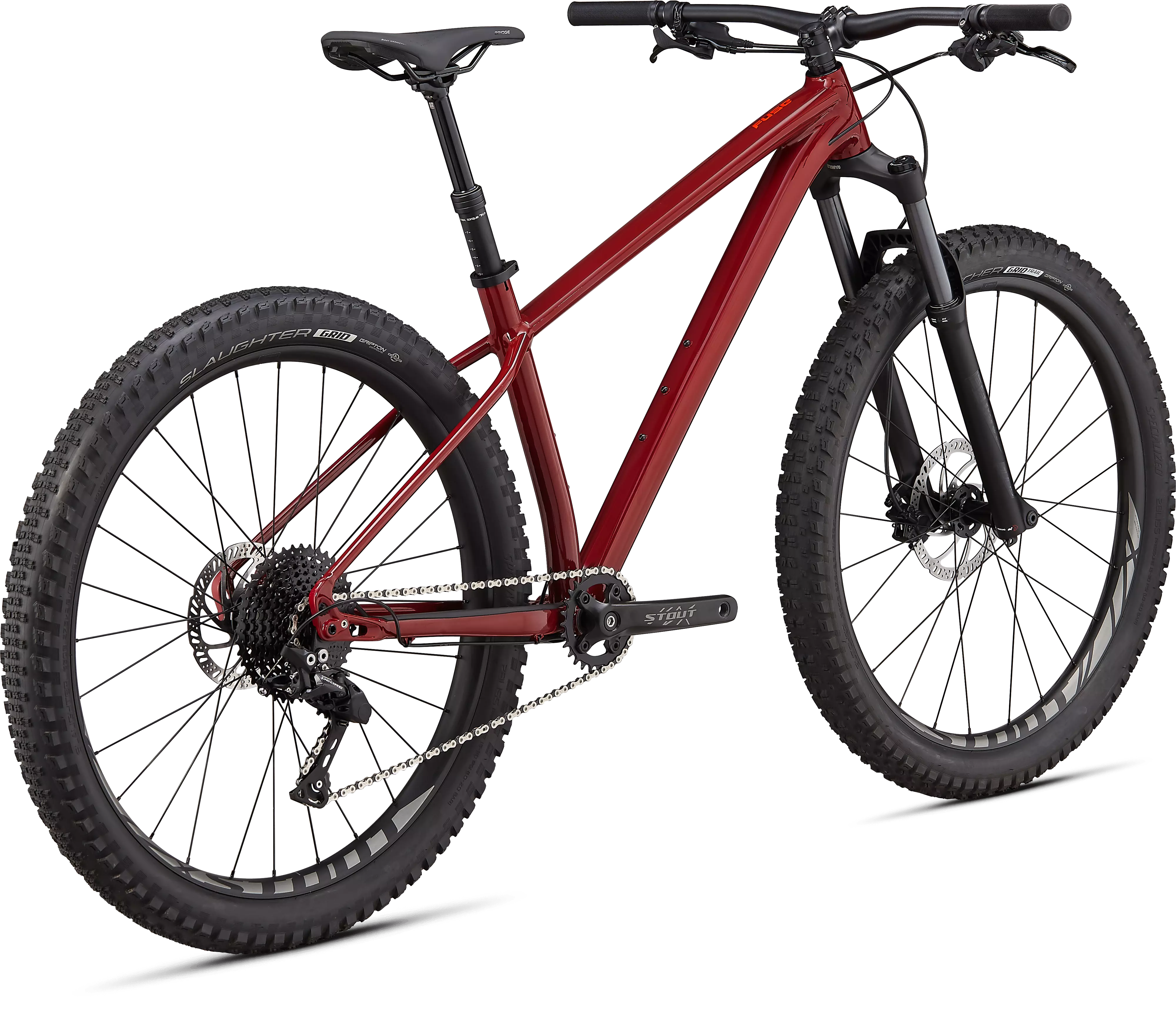

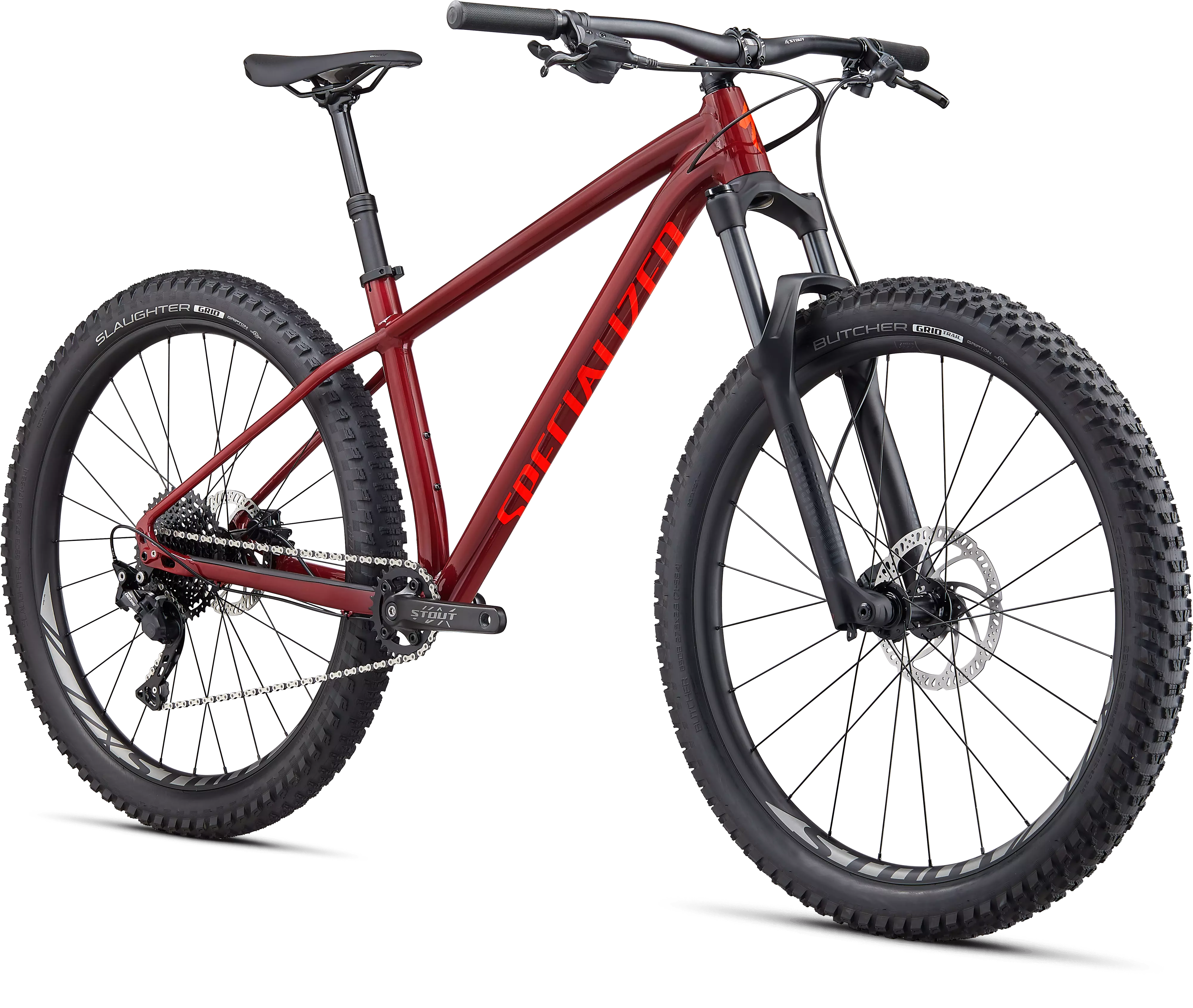

Here's proof you don't need tons of suspension travel to tackle challenging trails. Equipped with an all-new, longer, lower and rowdier chassis, we've added 27.5x2.8 wheels and tires to the Fuse 27.5 to create a bike that lets you hit rocks and roots at speed with absolute control.
ROWDY BY DESIGN
The Fuse is loaded with smart touches. The wide-diameter down tube boosts stiffness. The low-slung top tube improves maneuverabilty on tight trails. And while this Fuse's 27.5x2.8 tires give it tons of traction and stability.
PERFECTLY DIALED
Fail to nail the geometry and advanced designs will still amount to nothing on the trail. Fuse gets it right. The long reach gives you even weight distribution. The slack head angle lends confidence on sketchy descents. The steep seat angle makes quick work of steep climbs.
SMART PARTS PICK
• Plus-size tires provide insane traction and stability on the choppiest trails.
• 130-millimeters of suspension courtesy of a RockShox Judy Silver TK fork.
• Highlights include hydraulic disc brakes, a dropper post, and single-ring drivetrain.
FRAME
Specialized A1 Aluminum, 148mm thru-axle, tapered head tube, internal cable routing
SEAT BINDER
Alloy, 38.6mm
FORK
RockShox Judy Silver TK, air spring, 42mm offset, 130mm of travel
STEM
Stout 3D-forged alloy, 31.8mm, 6-degree rise
HANDLEBARS
Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm
GRIPS
Specialized Trail Grips
SADDLE
Body Geometry Bridge Saddle, steel rails
SEATPOST
TranzX Dropper, 30.9mm, XS-S: 100mm, M-XL: 120mm
REAR BRAKE
Tektro HD-M275, hydraulic disc, 160mm
FRONT BRAKE
Tektro HD-M275, hydraulic disc, 180/160mm
REAR DERAILLEUR
Shimano Deore, Shadow Plus, GS cage, 10-speed
SHIFT LEVERS
Shimano Deore, 10-speed
CASSETTE
SunRace, 11-42t, 10-speed
CHAIN
KMC X10, 10-speed w/ reusable Missing Link™
CRANKSET
Stout, forged alloy, 76mm BCD
CHAINRINGS
30T
BOTTOM BRACKET
Square taper, 73mm, internal bearings
RIMS
Stout Trail 27.5, 38mm internal width, disc-specific
FRONT HUB
Stout, alloy, sealed cartridge bearings, 15x110mm thru-axle, 24h
REAR HUB
Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Butcher GRID TRAIL, GRIPTON® compound, 2Bliss Ready, 27.5x2.8"
REAR TIRE
Slaughter GRID TRAIL, GRIPTON® compound, 2Bliss Ready, 27.5x2.8"
INNER TUBES
Presta, 40mm valve
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
XS | S | M | L | XL | |
---|---|---|---|---|---|
Crank Length | 170 | 170 | 170 | 170 | 175 |
Handlebar Width | 750MM | 750MM | 780MM | 780MM | 780MM |
Stem Length | 45 | 45 | 45 | 45 | 45 |
Saddle Width | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 360 | 360 | 400 | 400 | 400 |
Seat-Tube Angle | 74° | 74° | 74° | 74° | 74° |
Head-Tube Length | 105mm | 105mm | 105mm | 120mm | 135mm |
Head-Tube Angle | 66° | 66° | 66° | 66° | 66° |
Chain-Stay Length | 430mm | 430mm | 430mm | 430mm | 430mm |
Front-Centre | 695mm | 715mm | 735mm | 761mm | 787mm |
B-B Drop | 48mm | 48mm | 48mm | 48mm | 48mm |
B-B Height | 315mm | 315mm | 315mm | 315mm | 315mm |
Bike Stand-Over Height | 717mm | 736mm | 739mm | 744mm | 789mm |
Fork Length (full) | 520mm | 520mm | 520mm | 520mm | 520mm |
Top-Tube Length (horizontal) | 573mm | 593mm | 613mm | 637mm | 661mm |
Seat-Tube Length | 340mm | 375mm | 410mm | 455mm | 505mm |
Stack | 603mm | 603mm | 603mm | 615mm | 630mm |
Reach | 400mm | 420mm | 440mm | 460mm | 480mm |
Trail | 113mm | 113mm | 113mm | 113mm | 113mm |
Fork Rake/Offset | 42mm | 42mm | 42mm | 42mm | 42mm |
Wheelbase | 1120mm | 1140mm | 1160mm | 1186mm | 1213mm |
