2015 Era Expert Carbon 29
0 Reviews
The 100mm-travel, carbon fibre, Era Expert Carbon 29 is a pure-bred competitive XC…
Colour:
Gloss Metallic White/Flo Red/Charcoal
What's my size?
Select a Size
Product Details

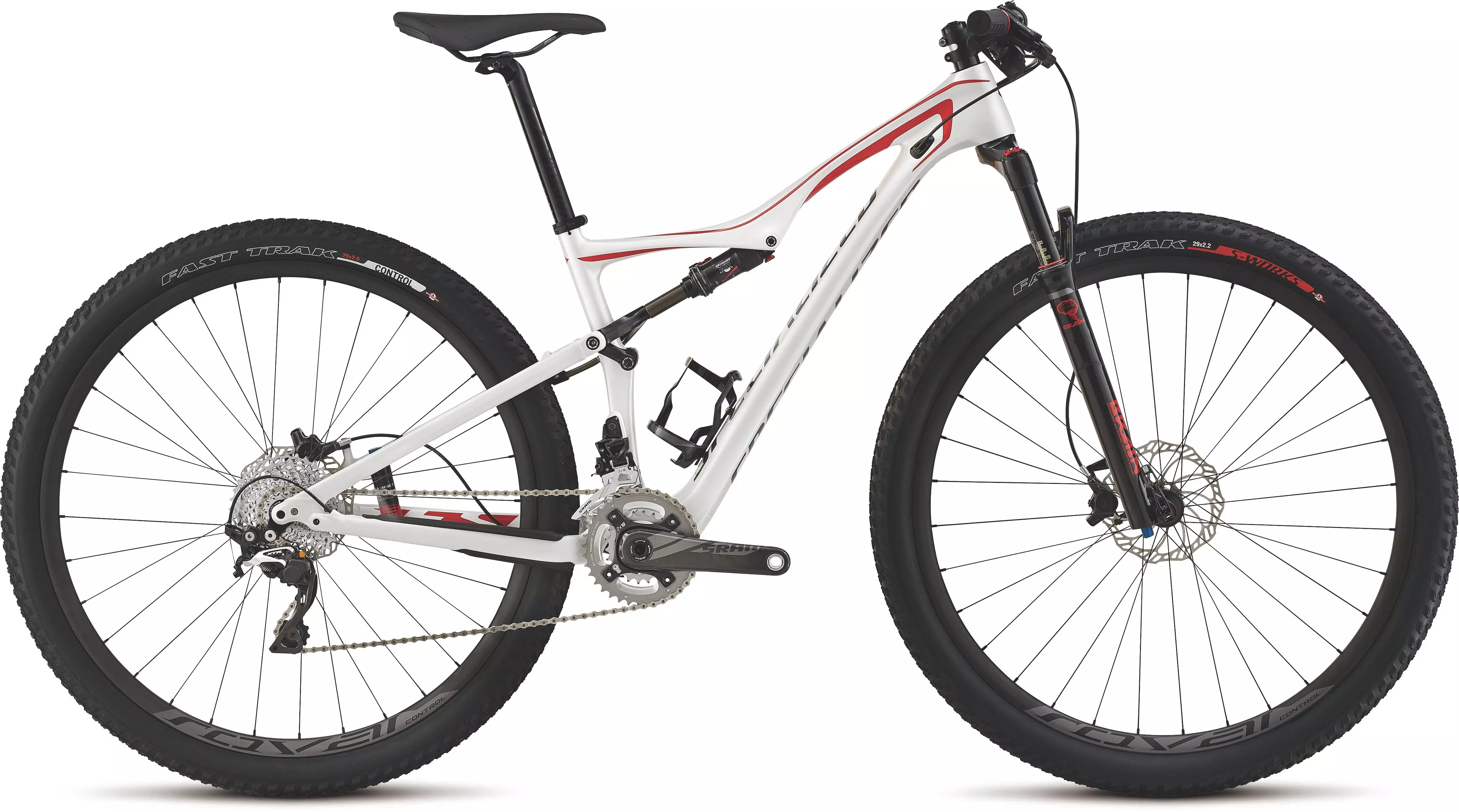

The 100mm-travel, carbon fibre, Era Expert Carbon 29 is a pure-bred competitive XC machine. With the Specialized/FOX Brain shock and Roval Control Carbon wheelset, the all-new Era is the fastest women's XC bike in the sport.
Carbon, 100mm-travel frame w/ Women's Performance 29 Geometry and SWAT EMT kit for XC terrain
Ride longer and in more comfort w/ the Body Geometry Myth Comp saddle w/ hollow Cr-Mo rails
RockShox SID World Cup fork w/ Brain damping and 100mm travel for race-ready XC performance
Ride longer and in more comfort w/ the Body Geometry Myth Comp saddle w/ hollow Cr-Mo rails
Magura MTS hydraulic disc brakes w/ Storm SL rotors for total control and performance
RockShox SID World Cup fork w/ Brain damping and 100mm travel for race-ready XC performance
Ride longer and in more comfort w/ the Body Geometry Myth Comp saddle w/ hollow Cr-Mo rails
Technical Specifications
FRAMESET
FRAME
FACT 9m carbon front triangle, M5 alloy rear triangle, FACT IS construction, tapered headtube, carbon PF30 BB, full internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, SWAT EMT tool cradle, S: 90mm travel, M/L: 100mm
SWAT
SWAT bottle cage, EMT Tool, and Top Cap Chain Tool
HEADSET
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
Alloy, 31.8mm
SUSPENSION
REAR SHOCK
FOX/Specialized remote Mini-Brain w/ AUTOSAG, inertia valve, BrainFade adjust, 200x48mm, 95mm travel
FORK
RockShox SID World Cup 29 Brain, Solo Air spring, tapered alloy steerer, bottom-mount BrainFade, rebound adjust, 15mm thru-axle, S: 90mm travel, M/L: 100mm
WHEELS
RIMS
Roval Control Carbon 29, carbon disc, hookless bead, 22mm internal width, 32h
FRONT HUB
Roval Control Carbon 29, 15mm thru-axle, 32h
REAR HUB
Roval Control Carbon 29 142+, DT Swiss Star Ratchet, 12mm thru-axle, 32h
SPOKES
DT Swiss Revolution
FRONT TIRE
S-Works Fast Trak Control, 120TPI, 2Bliss Ready, folding bead, 29x2.2""
REAR TIRE
Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0""
DRIVETRAIN
FRONT DERAILLEUR
SRAM X7, 2x10, high direct mount
REAR DERAILLEUR
Shimano XTR Shadow Plus, 10-speed, GS mid cage
SHIFT LEVERS
Shimano SLX, 10-speed, trigger
CASSETTE
SRAM PG 1050, 10-speed, 11-36
CHAIN
SRAM PC 1051, 10-speed, w/ PowerLink
CRANKSET
Custom SRAM S-2200, carbon, PF30 spindle, 104/64mm BCD spider
BOTTOM BRACKET
SRAM PF30, OS press-in bearings
COCKPIT
SADDLE
Body Geometry Women's Myth Comp, hollow Cr-Mo rails, 155mm
SEATPOST
Specialized alloy, single bolt, 27.2mm
STEM
Specialized, 3D-forged alloy, 4-bolt, 6-degree rise
HANDLEBARS
Specialized flat, 8-degree backsweep, 31.8mm
GRIPS
Specialized Sip Grip, lock-on, half-waffle, S/M: regular thickness, L: XL thickness
BRAKES
FRONT BRAKE
Magura MTS, hydraulic disc, Hi Friction pad, alloy master cylinder, alloy caliper, Storm SL rotor
REAR BRAKE
Magura MTS, hydraulic disc, Hi Friction pad, alloy master cylinder, alloy caliper, Storm SL rotor
BRAKE LEVERS
Magura MTS, alloy lever
ACCESSORIES
PEDALS
Resin Test Ride Pedals with toe clips, CEN std.
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | |
|---|---|---|---|
| Seat Tube Length, Centre to Top | 382mm | 420mm | 445mm |
| Top Tube Length, Actual | 528mm | 545mm | 567mm |
| Bottom Bracket Drop | 40mm | 45mm | 50mm |
| Bottom Bracket Height | 322mm | 327mm | 332mm |
| Seat Tube Angle, Actual | 70.5° | 71° | 71.5° |
| Seat Tube Angle, Effective | 75° | 75° | 75° |
| Wheel Base | 1076mm | 1108mm | 1135mm |
| Standover Height | 726mm | 735mm | 744mm |
| Stack | 589mm | 598mm | 607mm |
| Reach | 388mm | 415mm | 438mm |
| Head Tube Length | 90mm | 95mm | 105mm |
| Head Tube Angle | 70.5° | 70.5° | 70.5° |
| Chainstay Length | 448mm | 448mm | 448mm |
| Top Tube Length, Horizontal | 546mm | 575mm | 601mm |
| Crank Length | 165mm | 170mm | 175mm |
| Handlebar Width | 680mm | 680mm | 680mm |
| Stem Length | 60mm | 75mm | 90mm |
| Seatpost Length | 350mm | 350mm | 400mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
