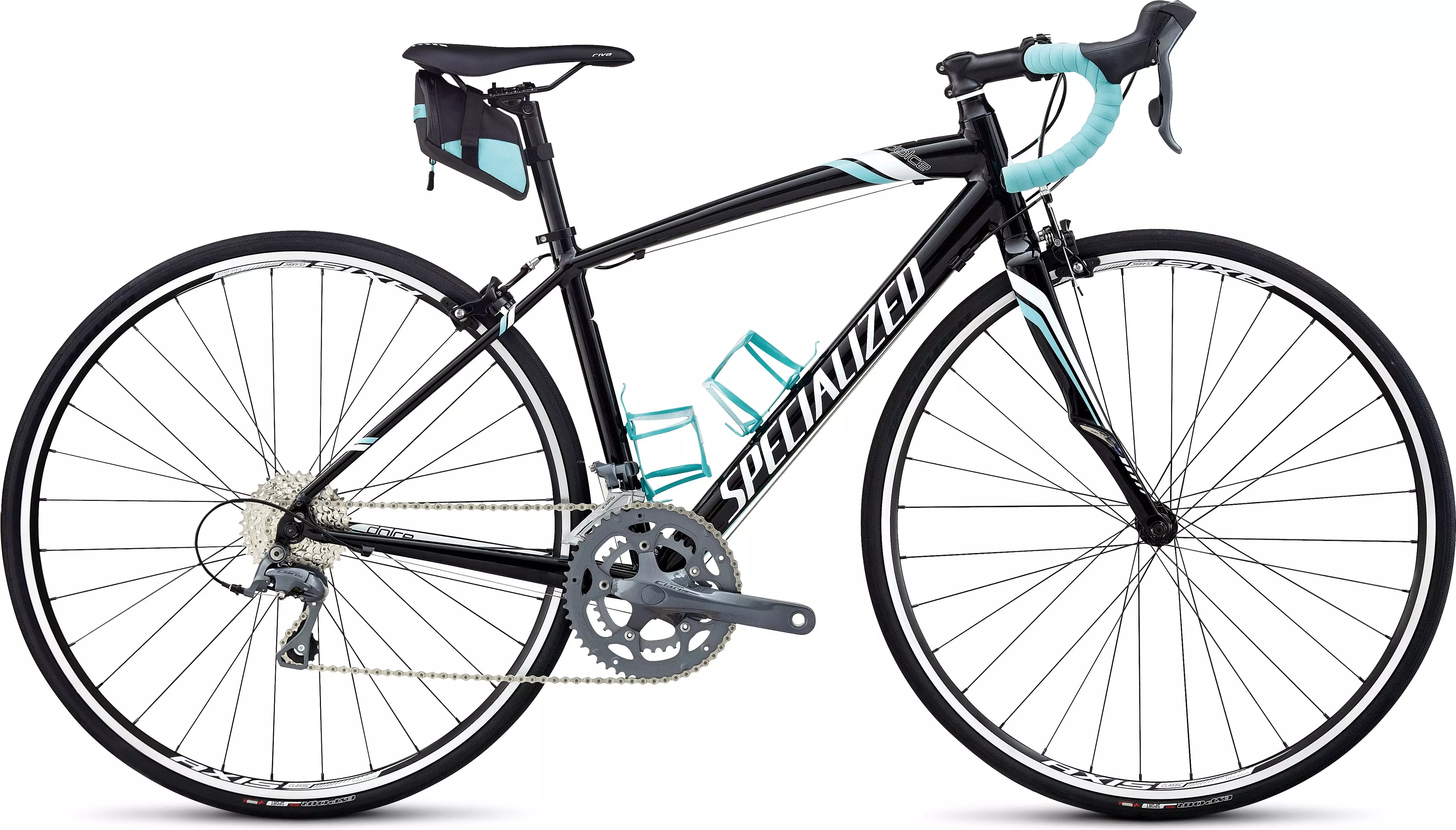

2014 Dolce Compact EQ
0 Reviews
Every key component of the Dolce was specifically selected for riders like you, looking…
Colour:
Gloss Black/Teal
What's my size?
Select a Size
Product Details
Every key component of the Dolce was specifically selected for riders like you, looking to tackle everything from the weekend workout to the upcoming century ride. The Dolce has an A1 alloy frame with Women's Endurance Geometry plus Zertz for a responsive, yet forgiving ride, while the Shimano compact drivetrain provides reliable and quiet shifting. To help get you ready for your first adventure, the EQ comes equipped with two alloy Zee cages and a Mini-Wedgie seat bag.
Smooth-welded A1 Premium Aluminium frame with Women's Endurance Geometry delivers great performance and value
Smooth-welded A1 Premium Aluminium frame with Women's Endurance Geometry delivers great performance and value
Smooth-welded A1 Premium Aluminium frame with Women's Endurance Geometry delivers great performance and value
Smooth-welded A1 Premium Aluminium frame with Women's Endurance Geometry delivers great performance and value
Lightweight FACT carbon fork for precision steering through tight turns, with Zertz inserts to absorb road chatter
Two colour-matched alloy Zee cages and a matching Mini-Wedgie seat bag for a bike that is ready for any ride, right out of the box
Technical Specifications
FRAMESET
FORK
Specialized Dolce FACT carbon, alloy steerer/crown for 1-1/8"" bearings, Zertz
HEADSET
1-1/8"" sealed Cr-Mo cartridge bearings integrated w/ headset, 20mm alloy cone spacer
SEAT BINDER
Alloy, 31.8mm
FRAME
Specialized A1 Premium Aluminum, fully manipulated tubesets, 1-1/8"" lower bearing
WHEELS
FRONT WHEEL
AXIS Classic
REAR WHEEL
AXIS Classic
FRONT TIRE
Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x25c
REAR TIRE
Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x25c
INNER TUBES
Standard presta valve
DRIVETRAIN
SHIFT LEVERS
Shimano 2400 Claris STI
FRONT DERAILLEUR
Shimano 2400 Claris
REAR DERAILLEUR
Shimano 2400 Claris
CHAINRINGS
50/34
CHAIN
KMC Z51
CASSETTE
Sunrace, 8-speed, 11-32
BOTTOM BRACKET
Sealed cartridge bearings, Octalink spline, 68mm
CRANKSET
Shimano 2400, compact
COCKPIT
TAPE
Specialized Roubaix
HANDLEBARS
Specialized Comp, 6061 alloy, shallow bend
SEATPOST
Specialized Sport, alloy, 27.2mm
STEM
Cast alloy, 4-bolt, 31.8mm clamp
SADDLE
Body Geometry Riva Sport Women's, steel rails, 155mm
BRAKES
BRAKE LEVERS
Shimano 2400 Claris STI
FRONT BRAKE
Tektro, dual pivot
REAR BRAKE
Tektro, dual pivot
ACCESSORIES
PEDALS
Nylon flat test ride, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 44.0 | 48.0 | 51.0 | 54.0 | 57.0 | |
|---|---|---|---|---|---|
| Seat-Tube Angle | 75.75° | 75.75° | 75.5° | 74° | 73.5° |
| Head-Tube Length | 120mm | 130mm | 140mm | 165mm | 190mm |
| Seat-Post Length | 300mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 70.25° | 71.25° | 71.5° | 72° | 72° |
| Chain-Stay Length | 412mm | 415mm | 415mm | 415mm | 417mm |
| Top-Tube Length, Horizontal | 498mm | 506mm | 515mm | 532mm | 556mm |
| Front-Centre | 575mm | 580mm | 586mm | 584mm | 604mm |
| Handle-Bar Width | 360mm | 380mm | 400mm | 400mm | 420mm |
| Stand-Over Height | 684mm | 711mm | 733mm | 762mm | 793mm |
| Seat-Tube Length, B-B Centre to Top | 376mm | 392mm | 426mm | 456mm | 481mm |
| Fork Rake | 51mm | 51mm | 51mm | 49mm | 49mm |
| B-B Drop | 73mm | 73mm | 73mm | 73mm | 71.5mm |
| Stack | 516mm | 529mm | 540mm | 566mm | 588mm |
| Reach | 358mm | 366mm | 372mm | 368mm | 381mm |
| Trail | 68mm | 62mm | 60mm | 59mm | 59mm |
| Wheelbase | 976mm | 983mm | 990mm | 988mm | 1011mm |
| Crank Length | 165mm | 165mm | 170mm | 170mm | 175mm |
| Stem Length | 75mm | 75mm | 90mm | 105mm | 105mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
