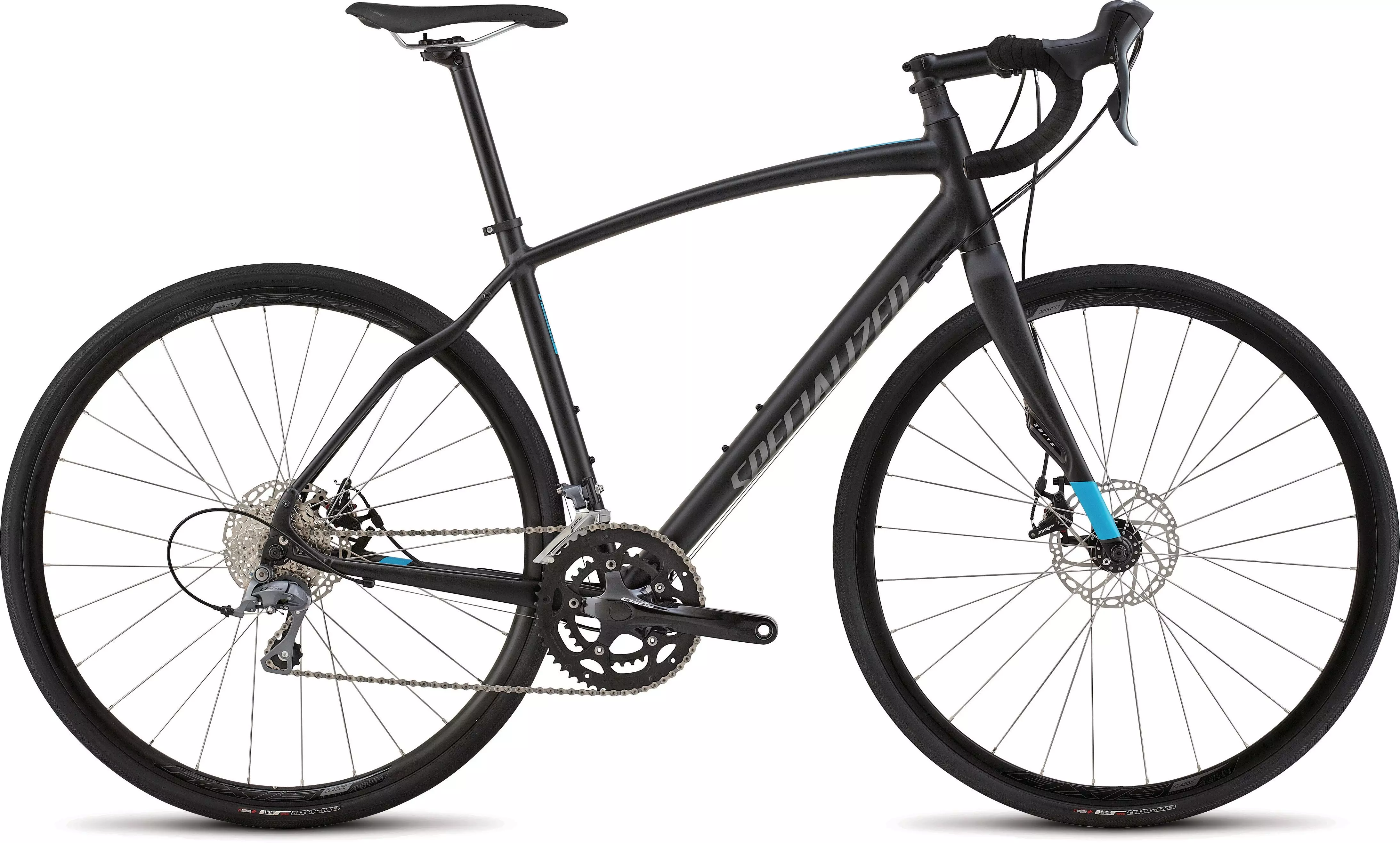

2015 Diverge A1
0 Reviews
Whether it's dirt roads or navigating potholes on the road less travelled, the Diverge…
Colour:
Satin Black/Cyan
What's my size?
Select a Size
Product Details
Whether it's dirt roads or navigating potholes on the road less travelled, the Diverge can handle it all. With the Shimano Claris drivetrain and tuned frame and fork, it's only limited by your imagination.
Specialized A1 Premium Aluminium frame is both stiff and compliant
AXIS Classic Disc wheels for durable, all day performance
Shimano Claris, compact crankset offers reliable power transfer and gearing options
AXIS Classic Disc wheels for durable, all day performance
Specialized FACT carbon fork w/ Zertz for road chatter damping
Shimano Claris, compact crankset offers reliable power transfer and gearing options
Specialized A1 Premium Aluminium frame is both stiff and compliant
Specialized A1 Premium Aluminium frame is both stiff and compliant
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminium, threaded BB
HEADSET
1-1/8"" integrated sealed Cr-Mo cartridge bearings, 20mm alloy cone spacer, w/ 20mm of spacers
SUSPENSION
FORK
FACT carbon fibre, alloy steerer/crown, Zertz inserts, post disc mount, Plug + Play fender mount
COCKPIT
HANDLEBARS
Specialized Shallow Drop, alloy, 125mm drop, 70mm short-reach
STEM
Specialized, 3D-forged alloy, 4-bolt, 6-degree rise, 31.8mm clamp, 60mm
TAPE
Specialized Roubaix, w/ 2.5mm gel pads, bar end plug
SADDLE
Body Geometry Toupé Sport, steel rails, 155mm
SEATPOST
Specialized Sport, alloy, 2-bolt, 27.2mm
SEAT BINDER
Alloy, 31.8mm
WHEELS
FRONT WHEEL
AXIS Classic Disc
REAR WHEEL
AXIS Classic Disc
FRONT TYRE
Espoir Sport, 700x30mm, 60TPI, wire bead, double BlackBelt protection
REAR TYRE
Espoir Sport, 700x30mm, 60TPI, wire bead, double BlackBelt protection
INNER TUBES
Standard, presta valve
DRIVETRAIN
SHIFT LEVERS
Shimano Claris 2400 STI
FRONT DERAILLEUR
Shimano Claris 2400, braze-on
REAR DERAILLEUR
Shimano Claris 2400, 8-speed
CASSETTE
Sunrace, 8-speed, 11-32t
CRANKSET
Shimano Claris, 50/34
BOTTOM BRACKET
Shimano, Octalink spline
CHAIN
KMC X9, 9-speed, reusable Missing Link
BRAKES
FRONT BRAKE
Tektro Spyre, mechanical disc, dual pivot
REAR BRAKE
Tektro Spyre, mechanical disc, dual pivot
ACCESSORIES
PEDALS
Nylon flat test ride, loose-ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 94mm | 114mm | 134mm | 159mm | 194mm | 214mm |
| Seat-Post Length | 300mm | 300mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72° | 72° | 72° | 72.5° | 72.5° | 73° |
| Chain-Stay Length | 412mm | 412mm | 415mm | 415mm | 418mm | 420mm |
| Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Front-Centre | 582mm | 588mm | 595mm | 606mm | 621mm | 628mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 730mm | 756mm | 776mm | 798mm | 829mm | 851mm |
| Seat-Tube Length, B-B Centre to Top | 418mm | 447mm | 466mm | 485mm | 510mm | 535mm |
| Fork Rake | 49mm | 49mm | 49mm | 49mm | 49mm | 49mm |
| B-B Drop | 73mm | 73mm | 71.5mm | 71.5mm | 70mm | 70mm |
| Stack | 528mm | 547mm | 564mm | 590mm | 622mm | 643mm |
| Reach | 378mm | 378mm | 380mm | 387mm | 391mm | 398mm |
| Trail | 59mm | 59mm | 59mm | 56mm | 56mm | 53mm |
| Wheelbase | 983mm | 989mm | 1000mm | 1010mm | 1029mm | 1038mm |
| Crank Length | 170mm | 170mm | 170mm | 175mm | 175mm | 175mm |
| Stem Length | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
