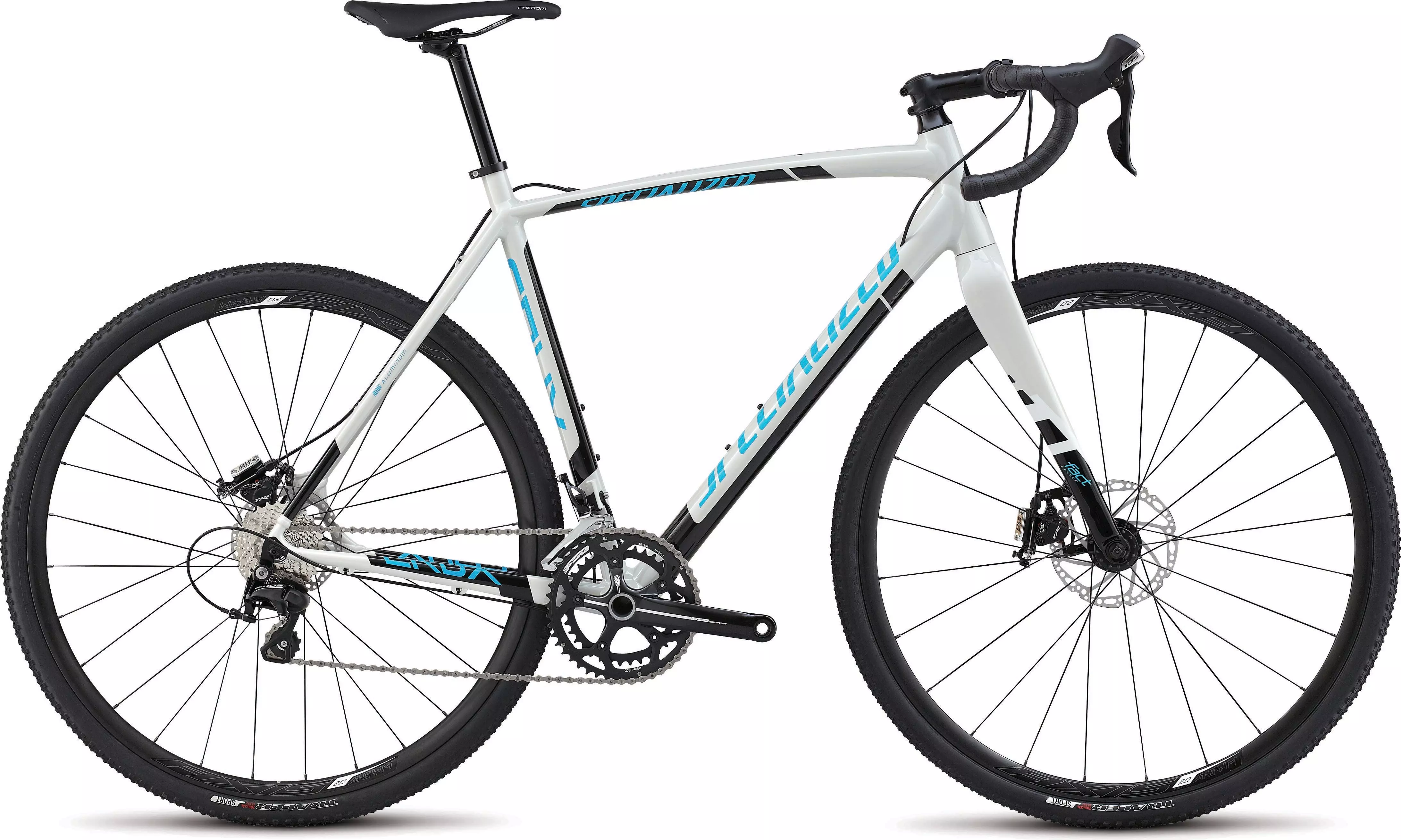

2015 CruX Sport E5
0 Reviews
The CruX Sport E5 is a 'cross beast, with race-optimised geometry, tapered headtube,…
Colour:
Gloss Dirty White/Black/Cyan/White
What's my size?
Select a Size
Product Details
The CruX Sport E5 is a 'cross beast, with race-optimised geometry, tapered headtube, internal cable routing, and an outstanding stiffness-to-weight ratio to power through the nastiest courses. Reliable Shimano 105 drivetrain with integrated hydraulic disc brakes rounds out an excellent 'cross setup for the most demanding racers.
AXIS 2.0 Disc wheels are tough, race-ready wheels perfect for all conditions
AXIS 2.0 Disc wheels are tough, race-ready wheels perfect for all conditions
Body Geometry Phenom Comp saddle w/ hollow Cr-Mo rails provides comfort for all-out efforts
AXIS 2.0 Disc wheels are tough, race-ready wheels perfect for all conditions
AXIS 2.0 Disc wheels are tough, race-ready wheels perfect for all conditions
AXIS 2.0 Disc wheels are tough, race-ready wheels perfect for all conditions
AXIS 2.0 Disc wheels are tough, race-ready wheels perfect for all conditions
Technical Specifications
FRAMESET
FRAME
Specialized E5 Premium Aluminium, fully manipulated tubing, semi-compact race design, shaped toptube, 1-3/8" lower bearing, internal cable routing, integrated headset, OSBB
FORK
Specialized FACT carbon
HEADSET
1-1/8"" upper, 1-3/8” lower, steel bearings, 20mm alloy cone spacer, w/ 20mm spacers
COCKPIT
HANDLEBARS
Specialized Comp, shallow drop, alloy, 125mm drop, 70mm reach
STEM
Specialized Comp Multi, 3D forged alloy, 4-bolt, 12-degree rise
TAPE
Specialized CX Pro Gel
SADDLE
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized Sport, alloy, 2-bolt, 27.2mm
SEAT BINDER
Alloy, 31.8mm
WHEELS
FRONT WHEEL
AXIS 2.0 Disc SCS
REAR WHEEL
AXIS 2.0 Disc SCS
FRONT TYRE
Tracer Sport, 700x33mm, 60TPI, wire bead
REAR TYRE
Tracer Sport, 700x33mm, 60TPI, wire bead
INNER TUBES
Standard, presta valve
DRIVETRAIN
SHIFT LEVERS
Shimano 105 STI, 11-speed
FRONT DERAILLEUR
Shimano 105, braze-on
REAR DERAILLEUR
Shimano 105, 11-speed
CASSETTE
Shimano 105, 11-speed, 11-28t
CRANKSET
FSA Gossamer, BB30, 46/36
CHAIN
Shimano 105, 11-speed
BRAKES
FRONT BRAKE
TRP HY/RD, hydraulic disc
REAR BRAKE
TRP HY/RD, hydraulic disc
ACCESSORIES
PEDALS
Nylon flat test ride, loose-ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 46 | 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 100mm | 115mm | 125mm | 140mm | 155mm | 170mm | 190mm |
| Seat-Post Length | 300mm | 300mm | 300mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 69.5° | 70.5° | 71.5° | 71.5° | 72° | 72.5° | 73° |
| Chain-Stay Length | 425mm | 425mm | 425mm | 425mm | 425mm | 425mm | 425mm |
| Top-Tube Length, Horizontal | 510mm | 516mm | 536mm | 549mm | 560mm | 570mm | 586mm |
| Front-Centre | 593mm | 595mm | 595mm | 601mm | 606mm | 609mm | 615mm |
| Handle-Bar Width | 400mm | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 764mm | 782mm | 795mm | 809mm | 825mm | 841mm | 862mm |
| Seat-Tube Length, B-B Centre to Top | 460mm | 490mm | 520mm | 540mm | 560mm | 580mm | 610mm |
| Fork Rake | 51mm | 51mm | 51mm | 49mm | 49mm | 49mm | 49mm |
| B-B Drop | 71mm | 71mm | 71mm | 69mm | 69mm | 67mm | 67mm |
| Stack | 522mm | 540mm | 554mm | 566mm | 583mm | 597mm | 618mm |
| Reach | 366mm | 370mm | 375mm | 379mm | 384mm | 387mm | 392mm |
| Trail | 78mm | 72mm | 65mm | 67mm | 64mm | 61mm | 57mm |
| Wheelbase | 1008mm | 1009mm | 1009mm | 1016mm | 1022mm | 1025mm | 1031mm |
| Crank Length | 170mm | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 75mm | 90mm | 100mm | 100mm | 110mm | 110mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
