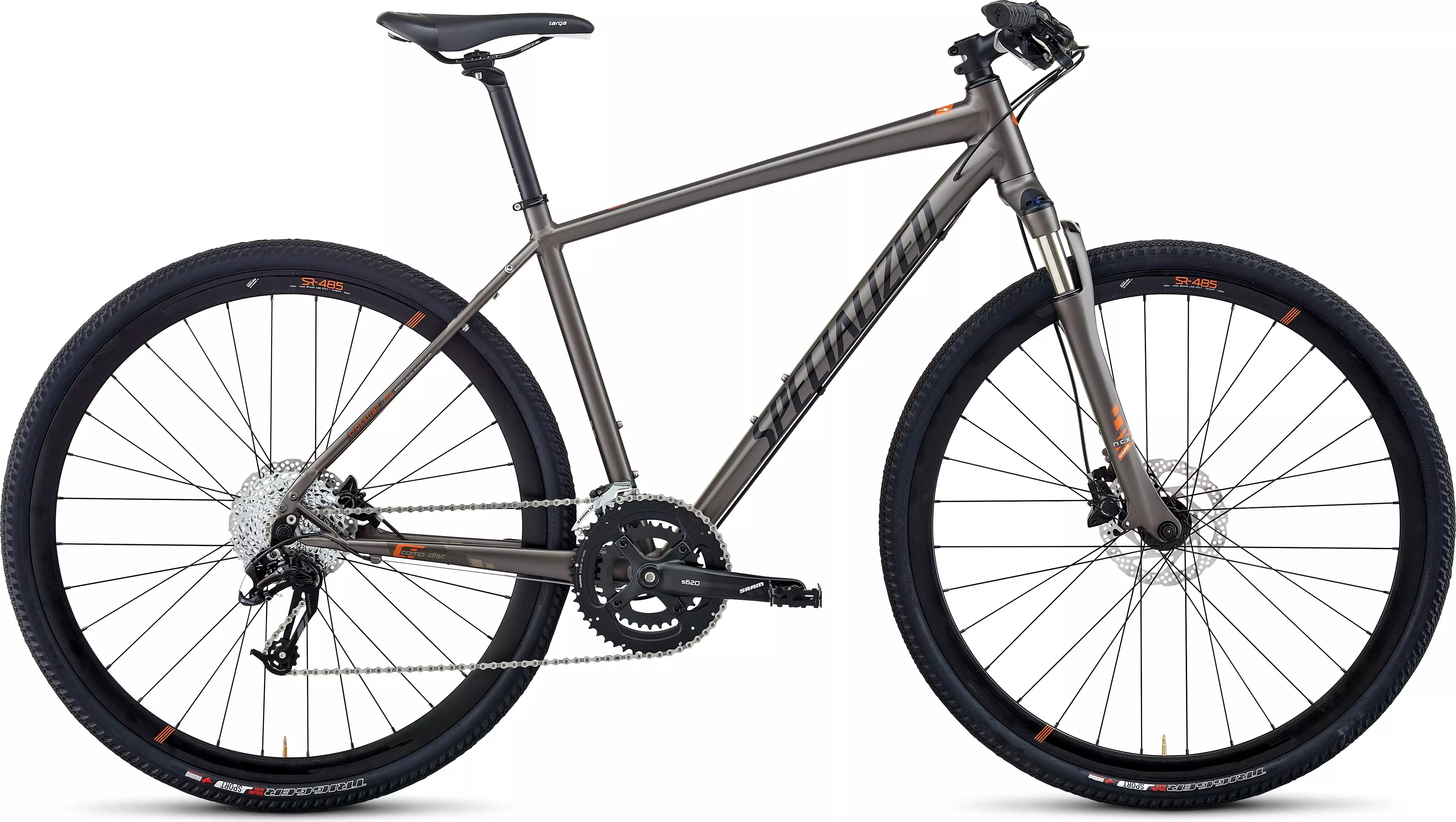

2014 Crosstrail Comp Disc
0 Reviews
Just roll out of your front door for after work and weekend adventures. The Crosstrail…
Colour:
Gunmetal/ Orange/ White
What's my size?
Select a Size
Product Details
Just roll out of your front door for after work and weekend adventures. The Crosstrail Comp Disc features reliable components, like the 50mm-travel fork featuring lockout, Shimano hydraulic disc brakes, and SRAM X7 rear derailleur.
SRAM 2X10 crankset with 48/32 rings for lightweight, wide-range gearing and spot-on shifting every time
Smooth-welded M4 Premium Aluminium disc frame plus custom Suntour NCXi 50mm-travel fork with lockout for lightweight confidence on any surface, with fender/rack braze-ons for versatility
SRAM 2X10 drivetrain plus SRAM X7 10-speed rear derailleur provide crisp shifting and reliable performance
Smooth-welded M4 Premium Aluminium disc frame plus custom Suntour NCXi 50mm-travel fork with lockout for lightweight confidence on any surface, with fender/rack braze-ons for versatility
Smooth-welded M4 Premium Aluminium disc frame plus custom Suntour NCXi 50mm-travel fork with lockout for lightweight confidence on any surface, with fender/rack braze-ons for versatility
Technical Specifications
FRAMESET
FRAME
Specialized M4 Premium Aluminum, double-butted w/ smooth welds, fender/rack braze-ons, forged dropouts, kickstand mount
HEADSET
1-1/8"" FSA Campy style, integrated cartridge, 8mm alloy cone spacer
SEAT BINDER
Alloy, 31.8mm
SUSPENSION
FORK
SR Suntour NCXi Coil, magnesium lower, custom integrated fork crown, hydraulic lockout, 50mm travel
WHEELS
RIMS
Alloy double-wall, sleeved rim, 32h
FRONT HUB
Disc, Hi Lo flange, machined disc side, loose ball, dual-lock nuts w/ 19mm contact side, QR
REAR HUB
Disc, Hi Lo flange, machined disc mount, double-sealed, loose ball, ground race, dual-lock nuts w/ 19mm contact side, QR
FRONT TIRE
Specialized Trigger Sport, 60TPI, wire bead, 700x38c
REAR TIRE
Specialized Trigger Sport, 60TPI, wire bead, 700x38c
INNER TUBES
Standard presta valve
DRIVETRAIN
FRONT DERAILLEUR
SRAM X7, top-swing, dual-pull
REAR DERAILLEUR
SRAM X7, 10-speed
SHIFT LEVERS
SRAM SL-500, 10-speed
CASSETTE
SRAM PG-1030, 10-speed, 11-36
CHAIN
KMC X10
CRANKSET
SRAM S-620, 48/32, 10-speed
CHAINRINGS
48/32
BOTTOM BRACKET
SRAM Power Spline
COCKPIT
SADDLE
Body Geometry Targa Comp, Cr-Mo rails, 155mm
SEATPOST
Alloy, 2-bolt, 12.5mm offset, 27.2mm
STEM
Specialized 3D forged alloy, 10-degree rise, 31.8mm clamp
HANDLEBARS
Specialized flat bar, double-butted alloy, 10-degree backsweep, 31.8mm
GRIPS
Specialized Body Geometry XCT, dual compound, lock-on
BRAKES
FRONT BRAKE
Shimano BR-M446, hydraulic disc, dual piston, 160mm rotor
REAR BRAKE
Shimano BR-M446, hydraulic disc, dual piston, 160mm rotor
BRAKE LEVERS
Shimano, hydraulic lever
ACCESSORIES
PEDALS
Alloy, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| SM | MD | LG | XL | |
|---|---|---|---|---|
| Seat-Tube Angle | 73° | 73° | 73° | 73° |
| Head-Tube Length | 105mm | 120mm | 135mm | 160mm |
| Seat-Post Length | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 70° | 70° | 70° | 70° |
| Chain-Stay Length | 445mm | 445mm | 445mm | 445mm |
| Top-Tube Length, Horizontal | 572mm | 585mm | 600mm | 615mm |
| Front-Centre | 627mm | 641mm | 657mm | 673mm |
| Handle-Bar Width | 660mm | 660mm | 660mm | 660mm |
| Stand-Over Height | 639mm | 651mm | 662mm | 676mm |
| Seat-Tube Length, B-B Centre to Top | 395mm | 440mm | 485mm | 550mm |
| Fork Rake | 38mm | 38mm | 38mm | 38mm |
| B-B Drop | 60mm | 60mm | 60mm | 60mm |
| Trail | 91mm | 91mm | 91mm | 91mm |
| Wheelbase | 1065mm | 1079mm | 1095mm | 1111mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Stem Length | 70mm | 80mm | 80mm | 90mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
