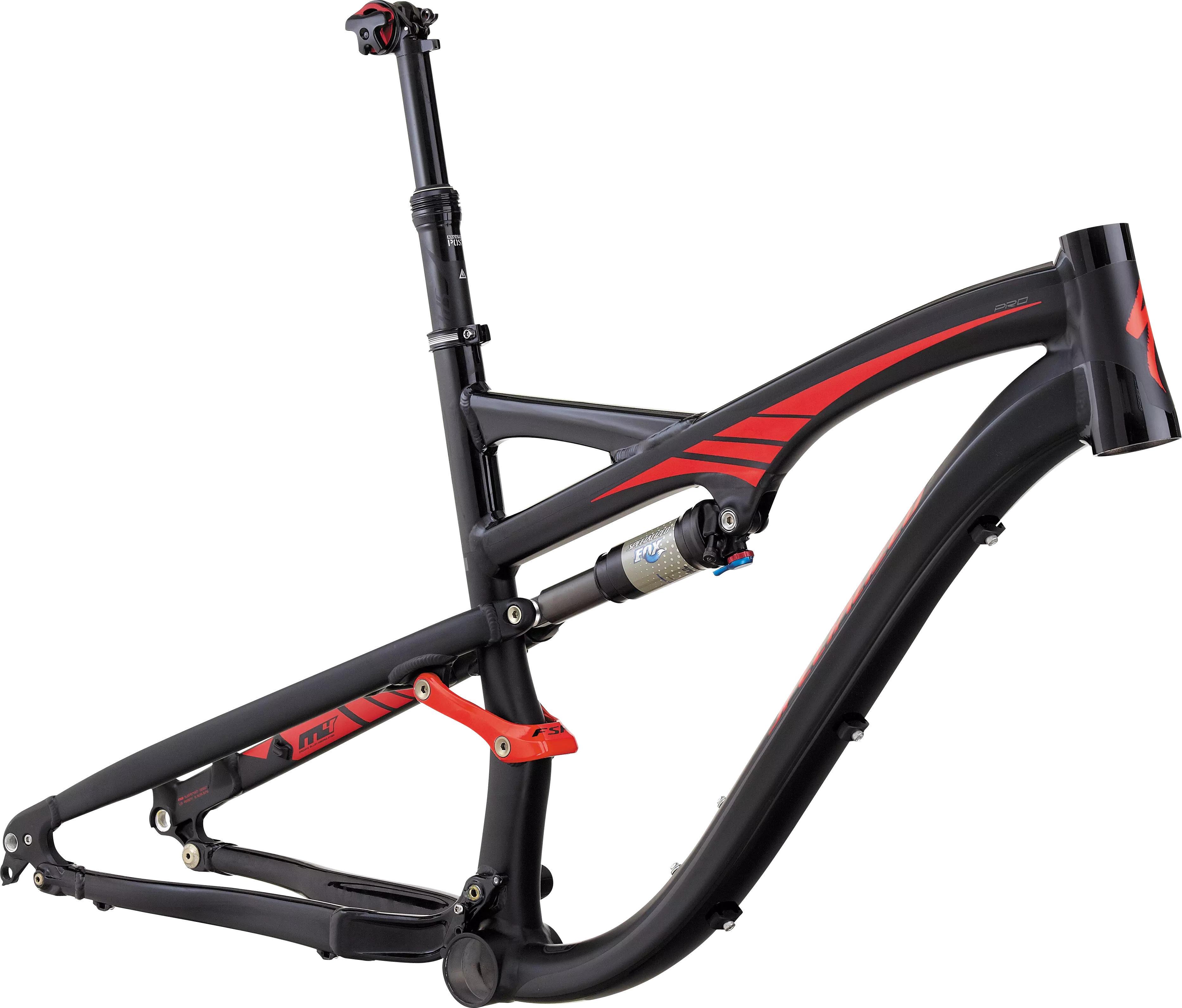

2012 Camber Frame
0 Reviews
Get your hands on 120mm of trail performance with the Camber FSR frame, and build…
Colour:
Gloss/Satin Black/Red
What's my size?
Select a Size
Product Details
Get your hands on 120mm of trail performance with the Camber FSR frame, and build your ideal cross-country rocket ship.
M5 hydroformed alloy FSR frame with 120mm of travel, tapered HT, 142mm dropouts, and sealed cartridge bearing pivots for confident handling and smooth trail performance
Custom Fox Triad II with on-the-fly, 3-position damping adjustment between a plush fully open, a more firm ProPedal and a lockout, for ideal performance over varying terrain
Technical Specifications
FRAMESET
FRAME
M5 hydroformed tubing, tapered HT, PF30 BB, Command Post routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, bolt-on cable guides, 120mm travel
HEADSET
1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
34.9mm clamp ID, 7050 hard anodized alloy collar, single bolt
SUSPENSION
REAR SHOCK
Custom Fox Triad II, custom on-the-fly 3-position compression switch 1) Lock out 2) Open 3) ProPedal, rebound adj., 200x51mm
COCKPIT
SEATPOST
Specialized Command Post BlackLite, 3 position, adjustable height w/air spring, remote operated, single bolt head 30.9mm, S:100mm travel, Others: 125mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Ground-Top | 896mm | 914mm | 924mm | 933mm |
| Bottom Bracket Height - Low Setting | 335mm | 335mm | 335mm | 335mm |
| Top Tube Length (Horizontal) | 556mm | 590mm | 625mm | 645mm |
| Head Tube Height | 120mm | 140mm | 150mm | 160mm |
| Head Tube Angle - Low Setting | 68.5° | 68.5° | 68.5° | 68.5° |
| Seat Tube Angle (Actual) - Low Setting | 71° | 71° | 71° | 71° |
| Seat Tube Angle (Effective) - Low Setting | 74.5° | 74.5° | 74.5° | 74.5° |
| Top Tube Length (Actual) | 531mm | 561mm | 590mm | 608mm |
| Seat Tube Length - Centre to Top | 394mm | 445mm | 483mm | 534mm |
| Wheel Base | 1082mm | 1118mm | 1154mm | 1175mm |
| Standover Height | 744mm | 750mm | 764mm | 769mm |
| Stack | 561mm | 579mm | 589mm | 598mm |
| Reach | 401mm | 429mm | 462mm | 479mm |
| Chainstay Length | 420mm | 420mm | 420mm | 420mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 680mm | 680mm | 680mm | 680mm |
| Stem Length | 75mm | 90mm | 105mm | 105mm |
| Seatpost Length | 350mm | 350mm | 400mm | 400mm |
