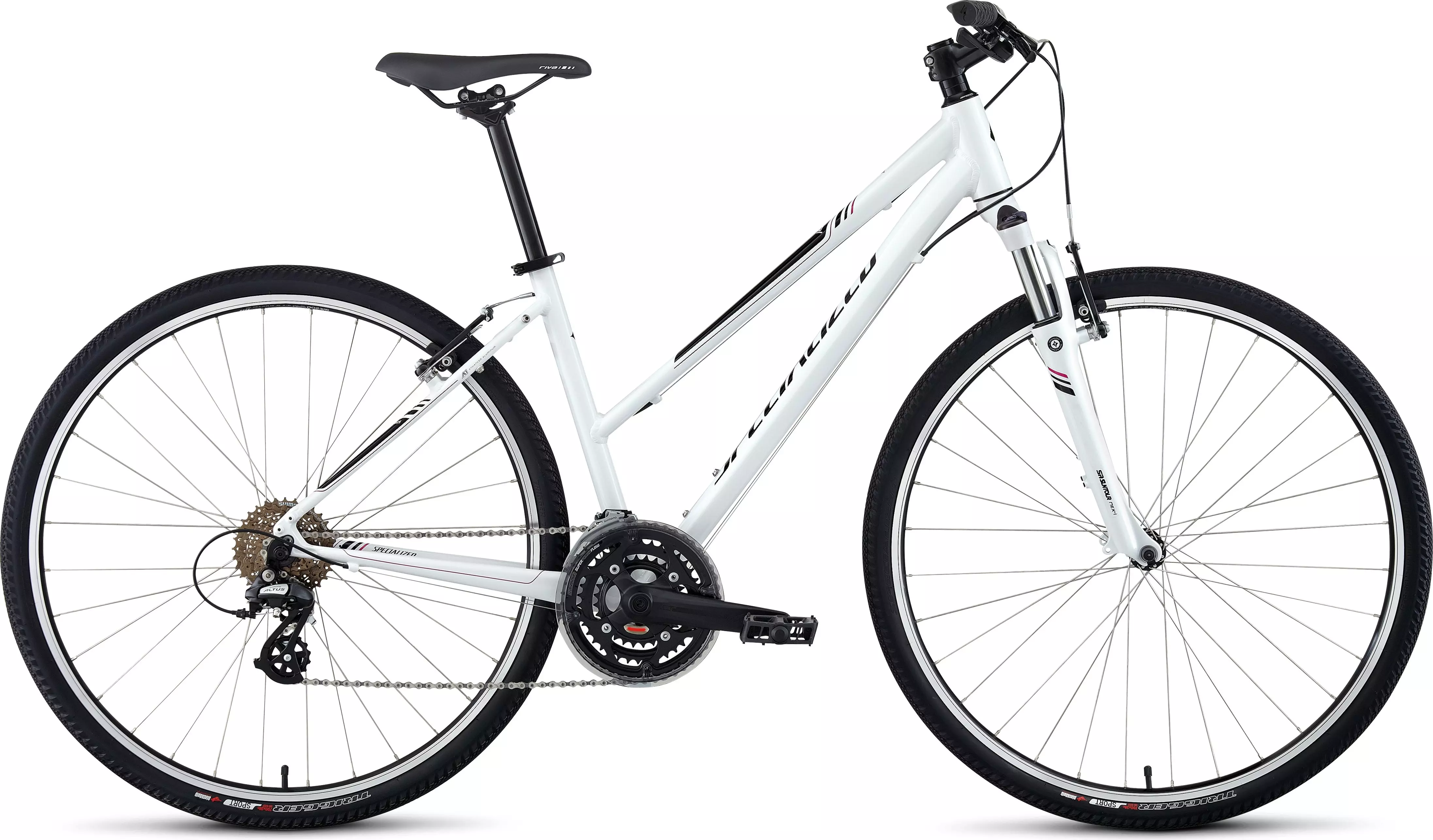

2014 Ariel Step Through
0 Reviews
With elements of both a road bike and mountain bike, the Ariel is for the female…
Product Details
With elements of both a road bike and mountain bike, the Ariel is for the female rider looking to zip through the weekday commute and head out for weekend adventure. The Ariel Step-Through features a A1 Premium Aluminium frame with Women's Fitness Geometry, Body Geometry Women's Riva saddle, and a 60mm-travel SR Suntour fork for a plush ride.
Women's Body Geometry Riva saddle features a women's cutout and plush seating area for all-day riding comfort
Women's Body Geometry Riva saddle features a women's cutout and plush seating area for all-day riding comfort
A1 Premium Aluminium step-through frame with Women's Fitness Geometry and tubesets for a lightweight and confidence-inspiring ride. Fender/rack braze-ons for versatility
SR Suntour 60mm-travel custom women's coil sprung fork with lockout and alloy lowers provides a capable and plush ride
Technical Specifications
FRAMESET
HEADSET
1-1/8"" FSA Ahead, semi-integrated, 8mm cone spacer
SEAT BINDER
Alloy, 31.8mm, QR, nylon washer
FRAME
Specialized A1 Premium Aluminum Step Through, Women's Fitness Geometry and tubesets, double-butted, w/ fender/rack braze-ons, forged dropouts, kickstand mount
SUSPENSION
FORK
SR Suntour NEXi Coil, custom women's coil spring, aluminum lower, custom integrated crown, 60mm travel
WHEELS
SPOKES
Stainless, 14g (2.0mm)
FRONT TIRE
Specialized Trigger Sport, 60TPI, wire bead, 700x38c
REAR TIRE
Specialized Trigger Sport, 60TPI, wire bead, 700x38c
RIMS
Alloy double-wall, pin joint, 32h
FRONT HUB
Double-sealed, ground race, dual-lock nuts, 5mm QR
REAR HUB
Double-sealed, loose ball, dual-lock nuts, 5mm QR
INNER TUBES
Standard Schrader valve
DRIVETRAIN
CHAIN
KMC X8
REAR DERAILLEUR
Shimano Altus, 8-speed
CASSETTE
Shimano HG-31, 8-speed, 11-32
CRANKSET
SR Suntour XCT, 8-speed, square taper spindle, replaceable outer ring, w/ chainguard
SHIFT LEVERS
Shimano SL-M310, Rapidfire
CHAINRINGS
48/38/28, w/ chainguard
BOTTOM BRACKET
Cartridge bearings, square spindle, capless bolts
FRONT DERAILLEUR
Shimano FDM-191, top-swing, dual-pull
COCKPIT
STEM
Melt-forged alloy, 4-bolt, 10-degree rise, 25.4mm clamp
GRIPS
Specialized Body Geometry Women's XCT
SEATPOST
Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm
HANDLEBARS
Specialized XC riser bar, alloy, 8-degree backsweep, 25mm rise, 25.4mm
SADDLE
Specialized Body Geometry Riva Women's, steel rails, 155mm
BRAKES
FRONT BRAKE
Die-cast, alloy V-brake, 60mm 1pc. pad, linear pull
REAR BRAKE
Die-cast, alloy V-brake, 60mm 1pc. pad, linear pull
BRAKE LEVERS
Alloy V-brake, two-finger, linear pull
ACCESSORIES
PEDALS
Composite plastic body, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| SM | MD | LG | XL | |
|---|---|---|---|---|
| Seat-Tube Angle | 73° | 73° | 73° | 73° |
| Head-Tube Length | 105mm | 120mm | 135mm | 160mm |
| Seat-Post Length | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 70° | 70° | 70° | 70° |
| Chain-Stay Length | 445mm | 445mm | 445mm | 445mm |
| Top-Tube Length, Horizontal | 572mm | 585mm | 600mm | 615mm |
| Front-Centre | 629mm | 643mm | 658mm | 675mm |
| Handle-Bar Width | 660mm | 660mm | 660mm | 660mm |
| Stand-Over Height | 645mm | 655mm | 667mm | 681mm |
| Seat-Tube Length, B-B Centre to Top | 395mm | 440mm | 485mm | 550mm |
| Fork Rake | 38mm | 38mm | 38mm | 38mm |
| B-B Drop | 60mm | 60mm | 60mm | 60mm |
| Trail | 91mm | 91mm | 91mm | 91mm |
| Wheelbase | 1067mm | 1081mm | 1096mm | 1113mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Stem Length | 70mm | 80mm | 80mm | 90mm |
