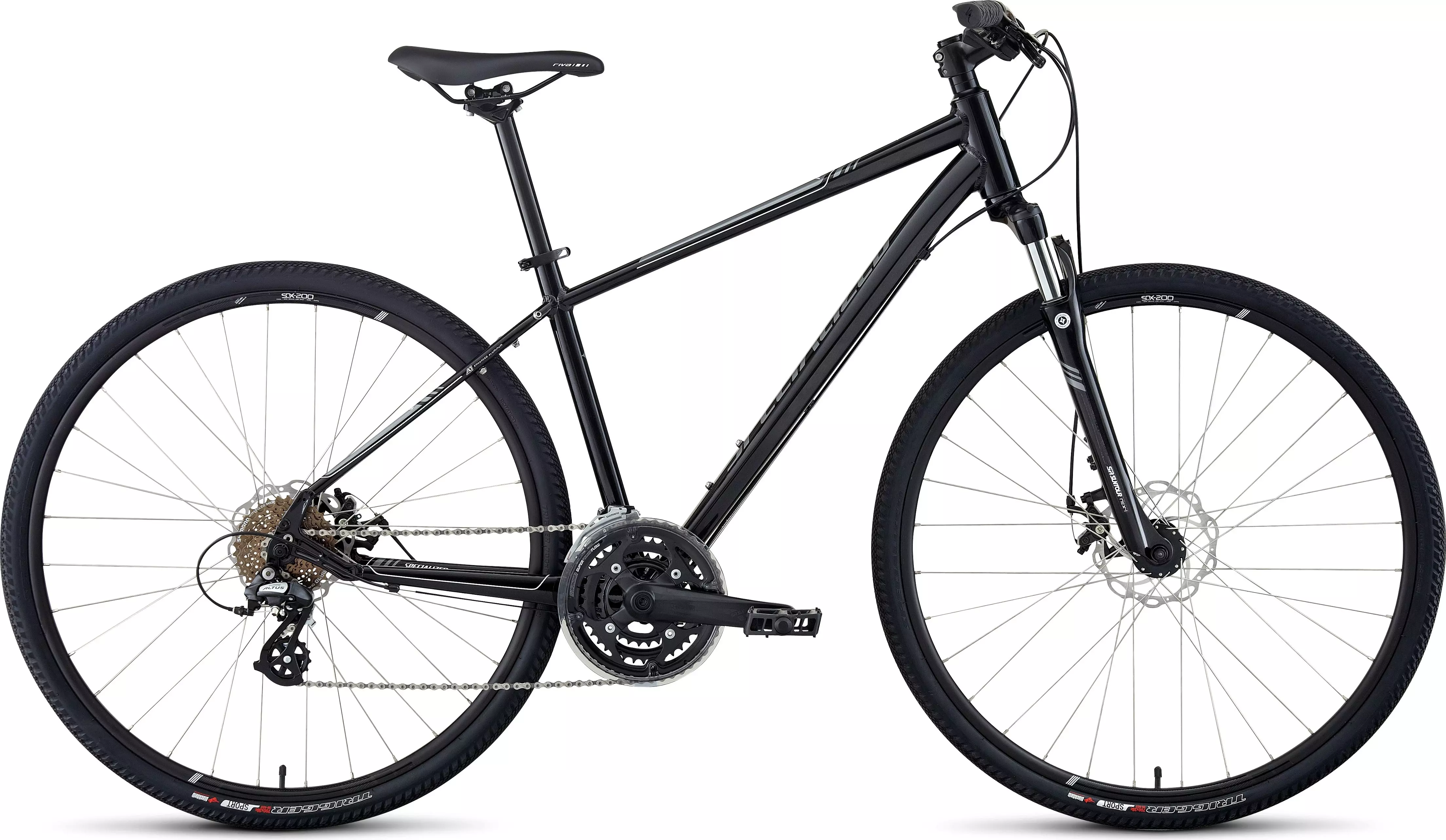

2014 Ariel Disc
0 Reviews
With elements of both a road bike and mountain bike, the Ariel is for the female…
Product Details
With elements of both a road bike and mountain bike, the Ariel is for the female rider looking to zip through the weekday commute and head out for weekend adventure. The Ariel Disc features a A1 Premium Aluminium frame with Women's Fitness Geometry, Tektro Novela disc brakes, and a 60mm-travel SR Suntour fork for a plush ride.
SR Suntour 8-speed triple crankset gives you all the gears you need for varied terrain, with a chainguard for added protection
A1 Premium Aluminium frame with Women's Fitness Geometry and tubesets for a lightweight and confidence-inspiring ride. Fender/rack braze-ons for versatility
A1 Premium Aluminium frame with Women's Fitness Geometry and tubesets for a lightweight and confidence-inspiring ride. Fender/rack braze-ons for versatility
Tektro Novela mechanical disc brakes for solid braking and easy maintenance under any conditions
A1 Premium Aluminium frame with Women's Fitness Geometry and tubesets for a lightweight and confidence-inspiring ride. Fender/rack braze-ons for versatility
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, Women's Fitness Geometry and tubesets, double-butted, w/ fender/rack braze-ons, forged dropouts, kickstand mount
HEADSET
1-1/8"" FSA Ahead, semi-integrated, 8mm cone spacer
SEAT BINDER
Alloy, 31.8mm, QR, nylon washer
SUSPENSION
FORK
SR Suntour NEXi Coil, custom women's coil spring, aluminum lower, custom integrated crown, 60mm travel
WHEELS
SPOKES
Stainless, 14g (2.0mm)
FRONT TIRE
Specialized Trigger Sport, 60TPI, wire bead, 700x38c
REAR TIRE
Specialized Trigger Sport, 60TPI, wire bead, 700x38c
INNER TUBES
Standard Schrader valve
RIMS
Disc, alloy double-wall, pin joint, 32h
FRONT HUB
Disc, double-sealed, ground race, dual-lock nuts w/ 17mm contact side, 5mm QR, round disc mount
REAR HUB
Disc, double-sealed, ground race, loose ball, dual-lock nuts w/ 19mm contact side, QR, 32h
DRIVETRAIN
FRONT DERAILLEUR
Shimano FDM-191, top-swing, dual-pull
REAR DERAILLEUR
Shimano Altus, 8-speed
SHIFT LEVERS
Shimano SL-M310, Rapidfire
CASSETTE
Shimano HG-31, 8-speed, 11-32
CHAIN
KMC X8
CRANKSET
SR Suntour XCT, 8-speed, square taper spindle, replaceable outer ring, w/ chainguard
CHAINRINGS
48/38/28, w/ chainguard
BOTTOM BRACKET
Cartridge bearings, square spindle, capless bolts
COCKPIT
STEM
Melt-forged alloy, 4-bolt, 10-degree rise, 25.4mm clamp
HANDLEBARS
Specialized XC riser bar, alloy, 8-degree backsweep, 25mm rise, 25.4mm
GRIPS
Specialized Body Geometry Women's XCT
SADDLE
Specialized Body Geometry Riva Women's, steel rails, 155mm
SEATPOST
Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm
BRAKES
FRONT BRAKE
Tektro Novela, mechanical disc, dual pad angle adjustment, 160mm rotor
REAR BRAKE
Tektro Novela, mechanical disc, dual pad angle adjustment, 160mm rotor
BRAKE LEVERS
Tektro, mechanical lever
ACCESSORIES
PEDALS
Composite plastic body, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| XS | SM | MD | LG | XL | |
|---|---|---|---|---|---|
| Seat-Tube Angle | 73° | 73° | 73° | 73° | 73° |
| Head-Tube Length | 85mm | 105mm | 120mm | 135mm | 160mm |
| Seat-Post Length | 300mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 70° | 70° | 70° | 70° | 70° |
| Chain-Stay Length | 445mm | 445mm | 445mm | 445mm | 445mm |
| Top-Tube Length, Horizontal | 560mm | 572mm | 585mm | 600mm | 615mm |
| Front-Centre | 616mm | 629mm | 643mm | 658mm | 675mm |
| Handle-Bar Width | 660mm | 660mm | 660mm | 660mm | 660mm |
| Stand-Over Height | 699mm | 738mm | 771mm | 804mm | 849mm |
| Seat-Tube Length, B-B Centre to Top | 345mm | 395mm | 440mm | 485mm | 550mm |
| Fork Rake | 38mm | 38mm | 38mm | 38mm | 38mm |
| B-B Drop | 60mm | 60mm | 60mm | 60mm | 60mm |
| Trail | 91mm | 91mm | 91mm | 91mm | 91mm |
| Wheelbase | 1054mm | 1067mm | 1081mm | 1097mm | 1113mm |
| Crank Length | 170mm | 170mm | 175mm | 175mm | 175mm |
| Stem Length | 60mm | 70mm | 80mm | 80mm | 90mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
