2014 Amira
0 Reviews
For women who live to compete—whether it's a local crit or a city-line sprint with…
Product Details

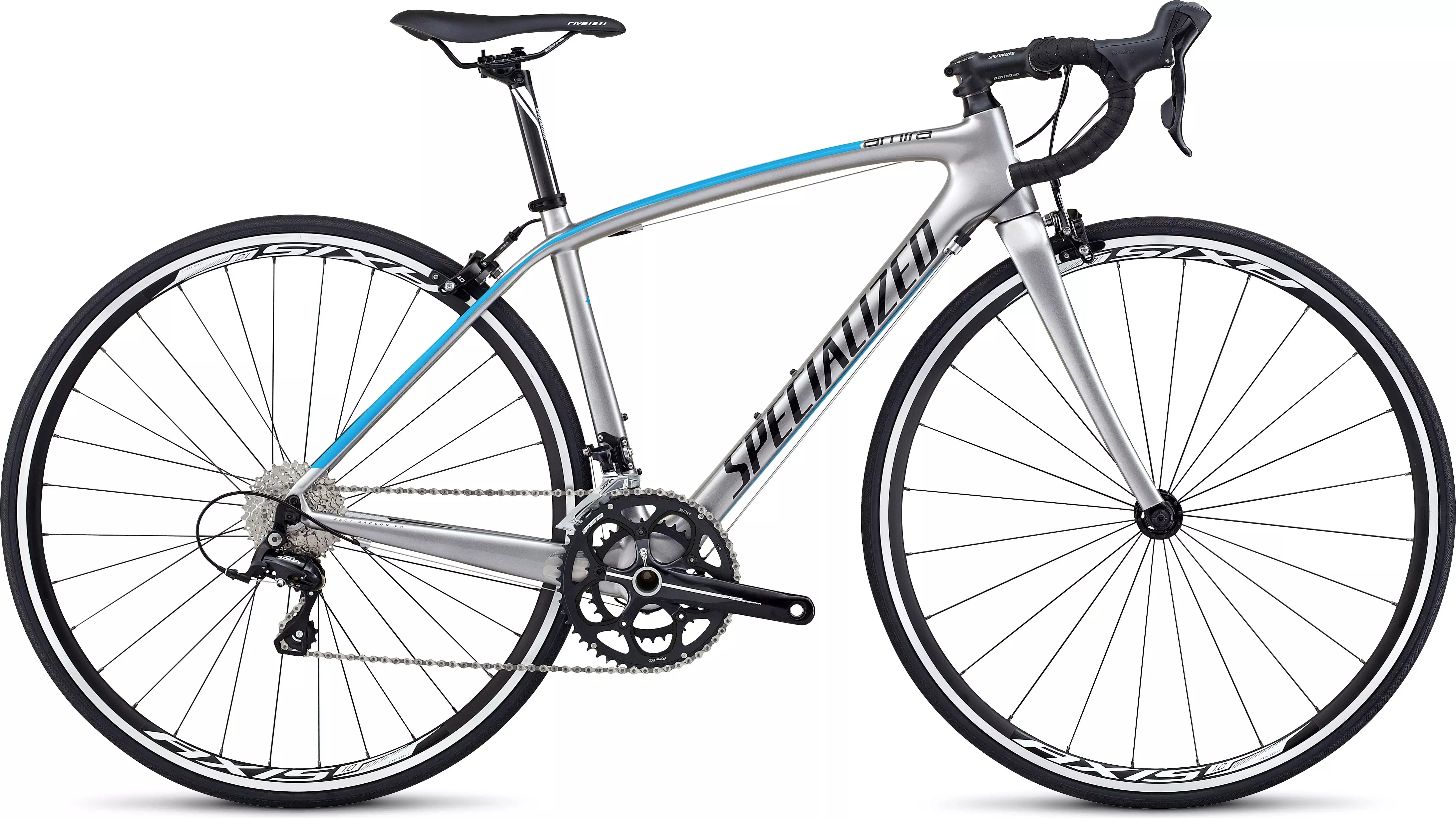

For women who live to compete—whether it's a local crit or a city-line sprint with the weekend group—the Amira offers a light, stiff FACT carbon frame with women's-tuned geometry for optimal fit and performance, plus lightweight, high-value Shimano Sora components.
Women's Body Geometry Riva saddle is the perfect combination of comfort and efficiency
FACT 8r carbon frame uses Women's Performance Geometry and carbon layup, with OSBB, plus integrated, tapered headtube to create a light, stiff and fast ride
Women's Body Geometry Riva saddle is the perfect combination of comfort and efficiency
FACT 8r carbon frame uses Women's Performance Geometry and carbon layup, with OSBB, plus integrated, tapered headtube to create a light, stiff and fast ride
Technical Specifications
FRAMESET
FRAME
Specialized FACT 8r carbon, FACT construction, Women's Performance Geometry and layup, tapered/shaped 1-1/8"" to 1-3/8"" headtube, OSBB
FORK
Specialized FACT carbon full monocoque, 1-1/8"" to 1-3/8"" tapered steerer
HEADSET
1-1/8"" upper and 1-3/8"" lower Cr-Mo cartridge bearings, 20mm cone spacer, w/ 20mm of spacers
SEAT BINDER
Forged alloy, 32.6mm
WHEELS
FRONT WHEEL
AXIS 1.0
REAR WHEEL
AXIS 1.0
FRONT TIRE
Specialized Espoir, 60TPI, foldable aramid bead, double BlackBelt protection, 700x23c
REAR TIRE
Specialized Espoir, 60TPI, foldable aramid bead, double BlackBelt protection, 700x23c
INNER TUBES
Standard presta valve
DRIVETRAIN
SHIFT LEVERS
Shimano Sora STI, 9-speed
FRONT DERAILLEUR
Shimano Sora, braze-on, 9-speed
REAR DERAILLEUR
Shimano Sora, 9-Speed
CASSETTE
Shimano HG-50, 9-speed, 11-30
CRANKSET
FSA Gossamer, BB30
CHAINRINGS
50/34
BOTTOM BRACKET
OS integrated, sealed bearings
CHAIN
KMC X9, w/ reusable Missing Link
COCKPIT
HANDLEBARS
Specialized Women's Comp, alloy, 123mm drop, 75mm reach
STEM
Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt, 31.8mm clamp
TAPE
Specialized S-Wrap
SADDLE
Body Geometry Women's Comp, hollow Cr-Mo rails, 155mm
SEATPOST
Specialized Comp, carbon, 27.2mm
BRAKES
FRONT BRAKE
AXIS 1.0
REAR BRAKE
AXIS 1.0
BRAKE LEVERS
Shimano Sora
ACCESSORIES
PEDALS
Nylon flat test ride, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 440.0 | 480.0 | 510.0 | 540.0 | 560.0 | |
|---|---|---|---|---|---|
| Seat-Tube Angle | 76° | 75.75° | 75.5° | 74° | 73.5° |
| Head-Tube Length | 105mm | 115mm | 125mm | 145mm | 165mm |
| Seat-Post Length | 300mm | 300mm | 300mm | 300mm | 350mm |
| Head-Tube Angle | 70.5° | 71.25° | 72° | 72° | 72° |
| Chain-Stay Length | 405mm | 405mm | 405mm | 405mm | 408mm |
| Top-Tube Length, Horizontal | 498mm | 506mm | 518mm | 537mm | 548mm |
| Front-Centre | 576mm | 580mm | 582mm | 588mm | 596mm |
| Handle-Bar Width | 360mm | 380mm | 400mm | 400mm | 420mm |
| Stand-Over Height | 692mm | 718mm | 735mm | 758mm | 777mm |
| Seat-Tube Length, B-B Centre to Top | 390mm | 420mm | 460mm | 490mm | 510mm |
| Fork Rake | 51mm | 51mm | 49mm | 49mm | 49mm |
| B-B Drop | 73mm | 73mm | 73mm | 73mm | 71.5mm |
| Stack | 503mm | 515mm | 528mm | 547mm | 564mm |
| Reach | 365mm | 371mm | 378mm | 378mm | 380mm |
| Trail | 66mm | 62mm | 59mm | 59mm | 59mm |
| Wheelbase | 970mm | 974mm | 976mm | 982mm | 993mm |
| Crank Length | 165mm | 165mm | 170mm | 170mm | 172.5mm |
| Stem Length | 75mm | 75mm | 90mm | 100mm | 100mm |
