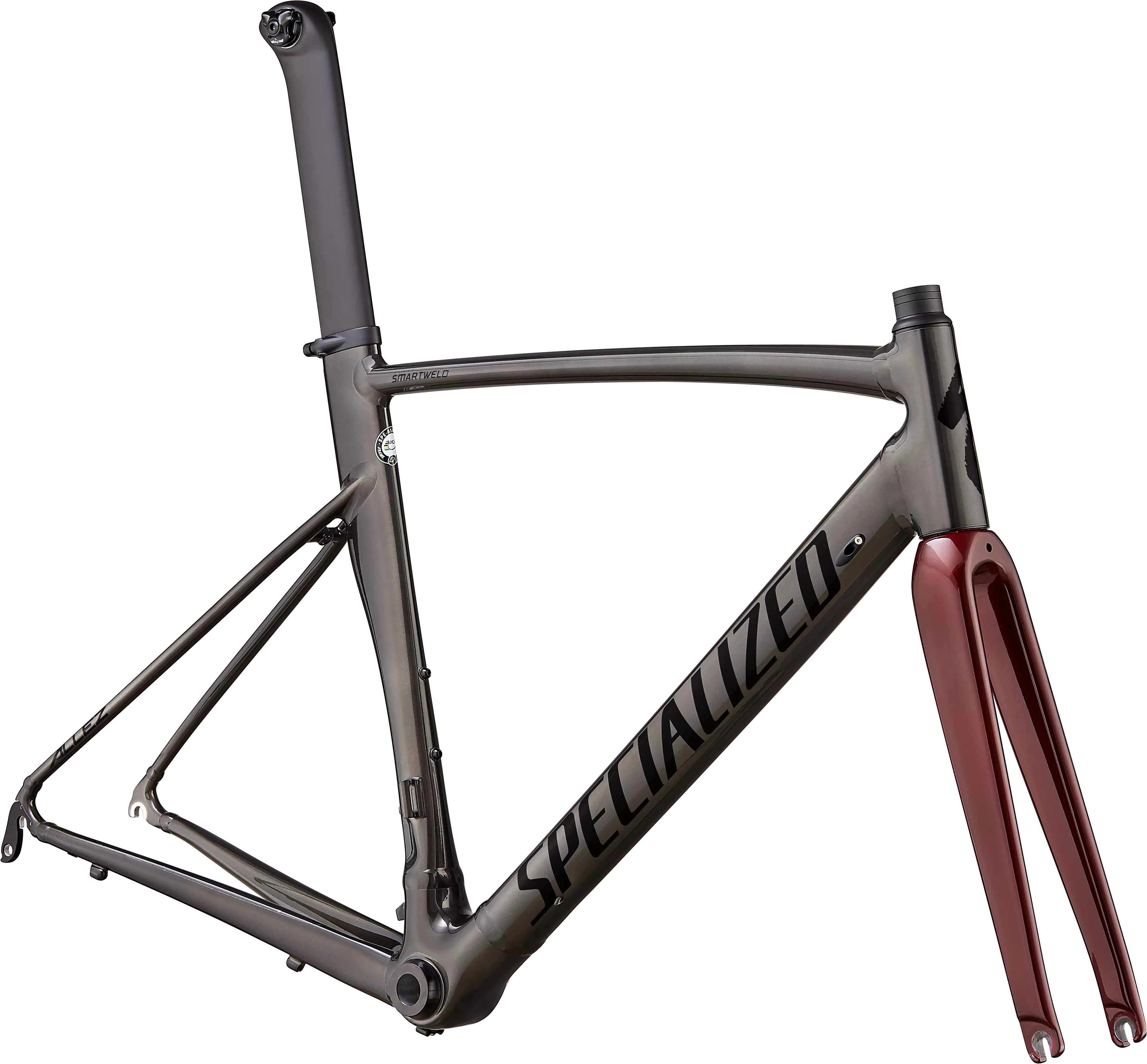

2020 Allez Sprint Frameset

5

1 Reviews

Climbs, corners, flat-out sprints—the Allez Sprint does it all. Being the most advanced…

Product Details

Add Icon

Climbs, corners, flat-out sprints—the Allez Sprint does it all. Being the most advanced alloy road bike we've ever made, and one that often out-performs the carbon fiber bikes of other brands, the Allez Sprint is capable as a crit-racing tool or an everyday road steed. But even better, it performs all of the above at a price that's affordable for any racer's budget.

  • At the heart of the Allez Sprint is our D'Aluisio Smartweld Technology, which strategically places more welding material where it's needed, resulting in an aluminum bike that's more compliant and considerably stiffer. How stiff, exactly? It's the stiffest alloy bike we've ever tested, let alone made. Drawing inspiration from the Rider-First Engineered™ Tarmac, this frame also has a unique down tube, bottom bracket shell, and head tube, plus fork sizes that correspond to frame size. This ensures uniform performance across the entire size run.

  • To make sure that every single watt you produce gets transferred to the road, we gave it short chainstays that create an extremely stiff and rigid rear triangle. But it goes beyond just pure rigidity, as the hydroformed tube shapes have also been aerodynamically optimized to slice through the wind, while also providing tons of built-in compliance.

  • Drawing inspiration from the Rider-First Engineered™ Tarmac, this frame also has a unique down tube, bottom bracket shell, and head tube, plus fork sizes that correspond to frame size. This ensures uniform performance across the entire size run.

  • Our top-tier Tarmac FACT carbon fiber fork provides incredible stiffness and front-end steering response, while also efficiently absorbing road chatter.

Technical Specifications

Add Icon

COCKPIT

SeatPost

Allez Sprint Seatpost, 20mm setback

Seat Binder

Allez Sprint Aero

DRIVETRAIN

Bottom Bracket

OSBB, Praxis bearings

Suspension

Fork

S-Works FACT full carbon, size-specific taper

FRAMESET

Frame

Specialized E5 Premium Aluminum w/ D'Aluisio Smartweld Sprint Technology, hydroformed aluminum tubing, tapered head tube, OSBB

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
49.052.054.056.058.061.0
Seatpost Length330mm330mm330mm330mm330mm330mm
Stack502mm514mm533mm554mm583mm604mm
Reach375mm380mm385mm395mm400mm405mm
Head Tube Length100mm110mm130mm150mm180mm200mm
Head Tube Angle72.25°73°73°73.5°73.5°74°
BB Height272.5mm272.5mm272.5mm272.5mm272.5mm272.5mm
BB Drop69mm69mm69mm69mm69mm69mm
Trail63mm58mm58mm55mm55mm52mm
Fork Length, Full368mm368mm368mm368mm368mm368mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center564mm566mm577mm589mm602mm608mm
Chainstay Length405mm405mm405mm405mm405mm407mm
Wheelbase959mm961mm972mm984mm997mm1005mm
Top Tube Length, Horizontal519mm527mm538mm554mm567mm578mm
Bike Standover Height732.3mm745.8mm765.5mm784.3mm808.3mm833.8mm
Seat Tube Length460mm480mm500mm520mm540mm570mm
Seat Tube Angle74°74°74°74°74°74°
Geometry

Rider Reviews

5

1 Reviews



I would buy this product again and again

Amazing frame , super light ,fast, great power transfer and climbs like a mountain goat .I love this new tech alloy . D S W patent . I never thought i would go back to alluminum, and now i know why is better than most carbon frames . Congrats Specialized for your great work in building the best bikes and spending in technology like Mclaren and Formula one, and timeless testing in your own wind-tunnel .
