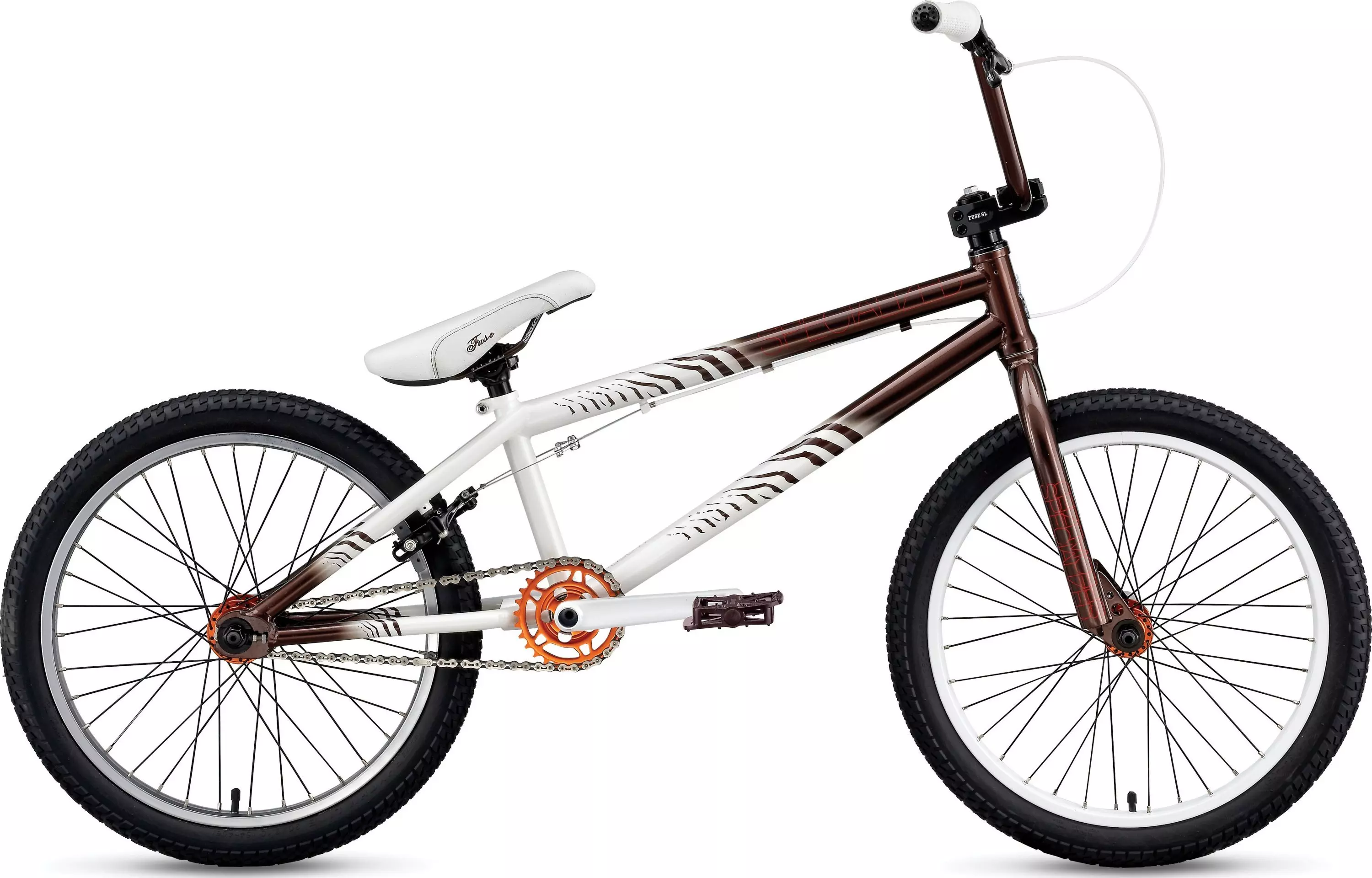

2010 Fuse 4
5
1 Reviews
Everything you want and nothing you don't, the X-Games-proven Fuse offers more bang…
Product Details
Everything you want and nothing you don't, the X-Games-proven Fuse offers more bang for your buck than any other player in the game. Always bomb-proof, high integrity and ultra lightweight, with super-low BBs and compact drive options.
Tough Cr-Mo butted fork with one-piece CNC steerer
Superlight 60 TPI Rhythm Lite Control tires get the job done and keep weights low
Fuse SL 2-piece Cr-Mo hollow spindle cranks for a solid, surefooted, lightweight platform
CNC 10t sealed cartridge bearing cassette and reinforced flanges to resist bending from grinds and stalls
28-tooth CNC-cut chainring uses a patented Wave interface that engages the links and bushings for durability
100% Cr-Mo double-butted frame with latest features--integrated headset, MID BB shell and integrated chain tensioning system
Technical Specifications
FRAMESET
FRAME
100% Cr-Mo, 21"" TT, MID BB shell, tig welded, double-butted and formed DT/TT/ST, externally relieved integrated HT w/ stamped ""S"" logo, gusseted BB yoke, seat-stay mounted U-brake bosses, integrated seat collar, 3D dropouts for 14mm axle w/ integrated axle tensioners
FORK
Full Cr-Mo, 1-1/8"" threadless for integrated headset, heat treated Cr-Mo 1pc. CNC steerer, butted 1.8-1.2mm Cr-Mo 1-1/4"" blades, 5mm HT Cr-Mo dropouts for 14mm axle w/ gussets
HEADSET
FSA Impact, 1-1/8"" threadless, integrated
SEAT BINDER
Cr-Mo seat pin, allen key type
WHEELS
REAR TIRE
Specialized Rhythm Lite Control, 20 x 2.1"", DC, 60TPI, aramid bead
INNER TUBES
Schraeder valve
RIMS
Fuse SL, double wall w/ eyelets
FRONT HUB
Fuse SL, 36h, 2x sealed cartridge bearing, mid flange, hollow 14mm axle
REAR HUB
Fuse SL, 36h, cassette w/ 10t cog driver, 4x sealed cartridge bearing, mid flange, 14mm hollow axle
SPOKES
2mm (14g) stainless
FRONT TIRE
Specialized Rhythm Lite Control, 20 x 2.1"", DC, 60TPI, aramid bead
DRIVETRAIN
FREEWHEEL
Joy Tech, 1/2"" x 1/8"" x 10t Cr-Mo, cog driver integrated w/ rear hub
CHAIN
KMC KOOL K-710 SL, 1/2"" x 1/8""
CRANKSET
Fuse SL 2pc., 175mm length, tig welded and heat treated Sanko Cr-Mo arms, hollow 19mm x 152mm 8-spline spindle
CHAINRINGS
CNC cut 6061 28t w/ Motostar design and patented Wave Interface designed specifically for KMC KOOL K-710 chain
BOTTOM BRACKET
Mid BB, 2x cartridge bearing, alloy cone spacers w/ 19mm spindle
COCKPIT
STEM
Fuse SL, forged alloy, 2pc. moto-style clamp, top load, 50mm extension, 1-1/8"" A-Head
HANDLEBARS
Cr-Mo 2pc., 675mm wide, 205mm rise, 12 degree back, 3 degree up sweep
GRIPS
Fuse Locking Grip, inner clamp on style, Kraton surface, alloy bar ends
SADDLE
Fuse SL, super light foam, hollow 8mm Cr-Mo rail w/ rail brace tube
SEATPOST
Alloy, 2 bolt, no offset, 25.4mm
BRAKES
REAR BRAKE
Tektro FX-15, cold forged, double bushing, linear spring, 15mm offset arms, soft compound pads
BRAKE LEVERS
Tektro 275A, cold forged two finger lever, 15mm cable pull
ACCESSORIES
PEDALS
Specialized Lo Pro A1, 9/16"", sealed cartridge bearing, alloy platform, removable pins
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 16 | 20.5 | 19 | 20.75 | 21 | |
|---|---|---|---|---|---|
| Rake | 29mm | 29mm | 29mm | 29mm | 29mm |
| Top Tube Length (Actual) | 423mm | 524mm | 483mm | 529mm | 535mm |
| Seat Tube Length, Center to Top | 207mm | 242mm | 238mm | 255mm | 239mm |
| Bottom Bracket Height | 238mm | 279mm | 279mm | 283mm | 279mm |
| Standover Height | 474mm | 573mm | 561mm | 570mm | 560mm |
| Head Tube Length | 100mm | 100mm | 100mm | 110mm | 110mm |
| Head Tube Angle | 73° | 74.25° | 74.25° | 74.25° | 74.25° |
| Chainstay Length | 299mm | 349mm | 347mm | 352mm | 347mm |
| Seat Tube Angle | 70° | 72° | 72° | 72° | 72° |
| Seatpost Length | 0mm | 0mm | 0mm | 0mm | 0mm |
