Hardrock 650b

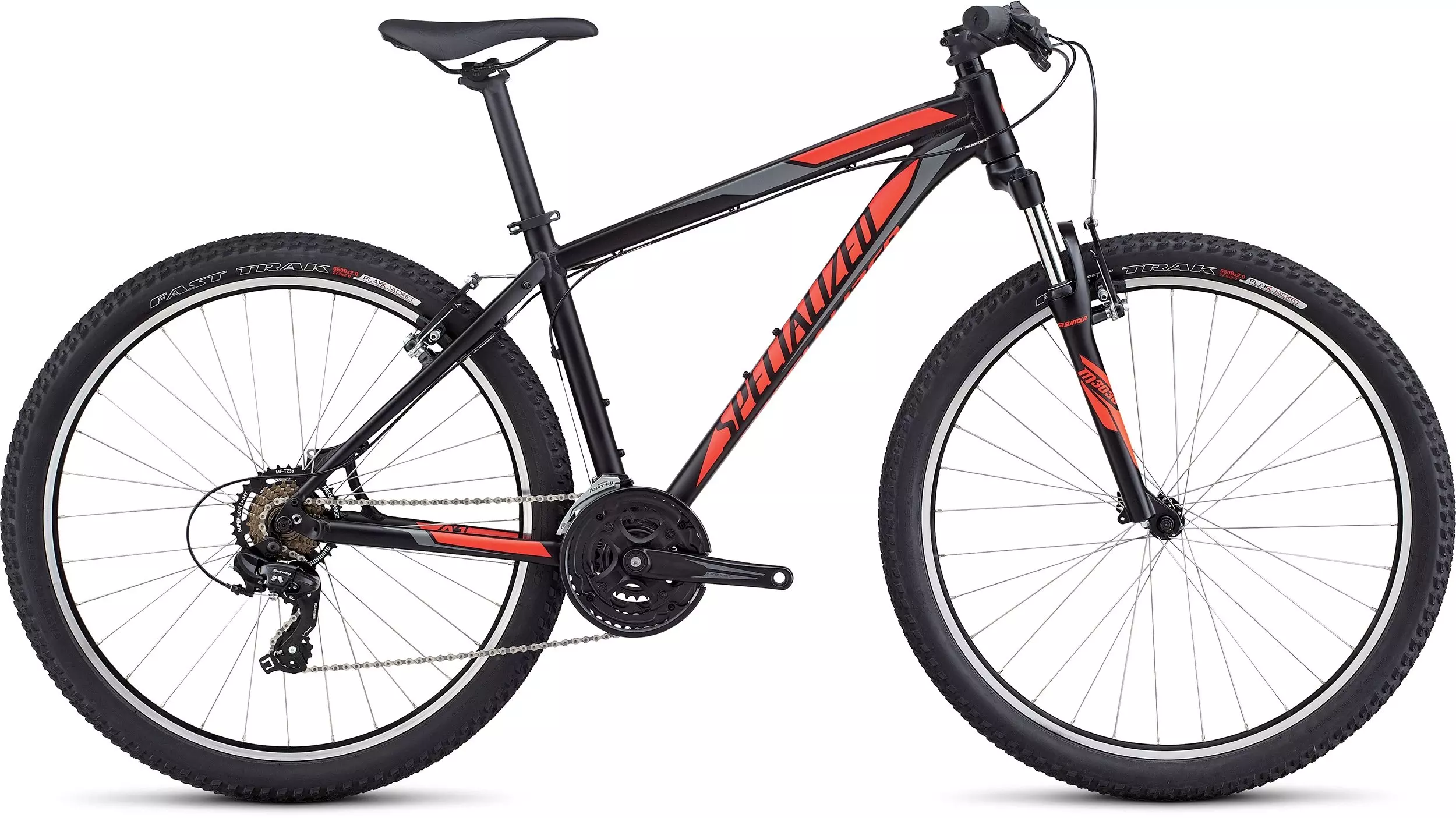

2017 Hardrock 650b

When you really stop and think about it, mountain biking is kind of like cycling in its most primitive form. You're out in nature, where paved roads are a forgotten memory, so why go and muddy it all up with a bunch of stuff you don't need for a fun, relaxing ride? We hear you loud and clear, although we can't help ourselves but to over deliver in order to make sure that you have the best possible ride. And with durable, performance-driven components, reliable V-brakes, a bump absorbing suspension fork, and Sport Trail 650b Geometry that's sure to leave you feeling confident and inspired, the Hardrock V 650b is more than enough bike to get you out there riding dirty.

Technical Specifications

FRAMESET

FRAME

A1 Premium Aluminum, 3D forged dropouts, alloy replaceable derailleur hanger

SEAT BINDER

Alloy, QR clamp, 31.8mm

SUSPENSION

FORK

SR Suntour M3030 650b, 1-1/8"" steel steerer, 75mm of travel, 9mm axle, coil spring w/preload adjust

WHEELS

RIMS

650b, V-brake, alloy, double-wall, CNC sidewalls, pin joint, 25mm wide, 32h

FRONT HUB

Specialized V-brake, alloy, loose ball bearings, 9mm, QR

REAR HUB

Specialized V-brake, loose ball bearings, QR, 32h

SPOKES

Stainless, 14g

FRONT TIRE

Fast Trak Sport, 650bx2.0"", 60TPI, wire bead, Flak Jacket protection

REAR TIRE

Fast Trak Sport, 650bx2.0"", 60TPI, wire bead, Flak Jacket protection

DRIVETRAIN

FRONT DERAILLEUR

Shimano Tourney, top-swing, 34.9mm clamp, 7-speed

REAR DERAILLEUR

Shimano Tourney, 7-speed

SHIFT LEVERS

Shimano EF500, EZ Fire Plus, 7-speed

CASSETTE

Shimano Tourney freewheel, 7-speed, 14-34t

CHAIN

KMC X8, 8-speed w/reusable MissingLink

CRANKSET

Samox, forged alloy, square taper spindle

CHAINRINGS

42/34/24T w/chainguard

BOTTOM BRACKET

Square taper, 73mm, internal bearings

COCKPIT

STEM

3D-forged alloy, 31.8mm clamp, 6-degree rise

HANDLEBARS

Flat bar, double-butted 6061 alloy, 700mm width, 10-degree upsweep, 4-degree upsweep, 31.8mm

GRIPS

Specialized MTB Grip, lock-on

SADDLE

Body Geometry mountain, steel rails, 143mm

SEATPOST

Alloy, 12mm offset, 2-bolt clamp, 30.9mm

BRAKES

REAR BRAKE

V-brake, linear pull

FRONT BRAKE

V-brake, linear pull

ACCESSORIES

PEDALS

Specialized MTB, platform w/molded pin, Cr-Mo spindle

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	XS	S	M	L	XL
Crank Length	170mm	170mm	175mm	175mm	175mm
Handlebar Width	700mm	700mm	700mm	700mm	700mm
Stem Length	60mm	70mm	70mm	90mm	90mm
Seatpost Length	300mm	350mm	350mm	400mm	400mm
Seat-Tube Angle	74°	74°	73°	73°	73°
Head-Tube Length	100mm	100mm	100mm	100mm	120mm
Head-Tube Angle	70.5°	70.5°	70.5°	70.5°	70.5°
Chain-Stay Length	425mm	425mm	425mm	425mm	425mm
Front-Center	612mm	633mm	652mm	671mm	697mm
B-B Drop	48mm	48mm	48mm	48mm	48mm
B-B Height	305mm	305mm	305mm	305mm	305mm
Bike Stand-Over Height	687mm	724mm	761mm	775mm	813mm
Fork Length (full)	480mm	480mm	480mm	480mm	480mm
Top-Tube Length (horizontal)	537mm	558mm	588mm	607mm	633mm
Seat-Tube Length	313mm	373mm	432mm	460mm	510mm
Stack	583mm	583mm	583mm	583mm	602mm
Reach	370mm	391mm	410mm	429mm	449mm
Trail	75mm	75mm	75mm	75mm	75mm
Fork Rake/Offset	48mm	48mm	48mm	48mm	48mm
Wheelbase	1032mm	1053mm	1072mm	1091mm	1117mm
